Product Details:
Payment & Shipping Terms:
|
| Axles: | 3 Axles | Tire: | 12 Pcs |
|---|---|---|---|
| Material: | Steel | King Pin: | JOST Brand 2.0 Or 3.5 Inch (bolted Or Welded) |
| Platform: | 3mm-thick Checkered Plate | Condition: | New/used |
| Function: | Transport 20ft 40ft Container And Heavy Duty Equipment | Color: | By Customer |
| Light: | LED Light (specially Intended For Oversea Market) | Use: | Truck Trailer |
| High Light: | 3mm Flatbed Truck Trailer,Container Shipping 20FT Flatbed Truck Trailer,checkered plate Flatbed Truck Trailer |
||
| Tare Weight | About 7.1T |
| Dimension(mm) | 12500x2500x1550mm |
| Loading capacity(ton) | ≤60T |
| Axles | 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand |
| Tire | 12 units, 12.00R22.5 or 315/80R22.5 |
| Rim | 9.00-22.5 or 9.75-22.5 |
| Suspension | Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand) |
| Spring Leaf | 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets) |
| King Pin | JOST brand 2.0 or 3.5 inch (bolted or welded) |
| Landing Gear | JOST brand D200T or Chinese brand 28tons(double-speed) |
| Main Beam | Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel |
| Side Beam | 16mm or 18mm steel channel (material: Q235 steel) |
| Platform | 3mm-thick checkered plate |
| Brake Chamber | WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank |
| Twist Locks | 4,8,12 sets (lifting or screw type) (specially intended for oversea market) |
| valve | WABCO valve (specially intended for oversea market) |
| ABS | Optional |
| Light | LED light (specially intended for oversea market) |
| Voltage | 24V |
| Socket(Receptacle) | 7-pin Socket (for 7 wire harness) |
| Tool Box | 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs) |
| Painting | Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats |

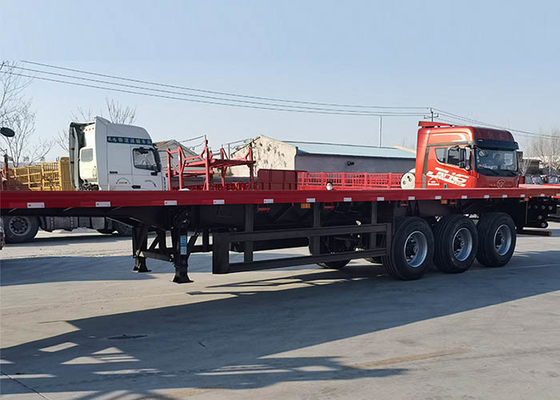

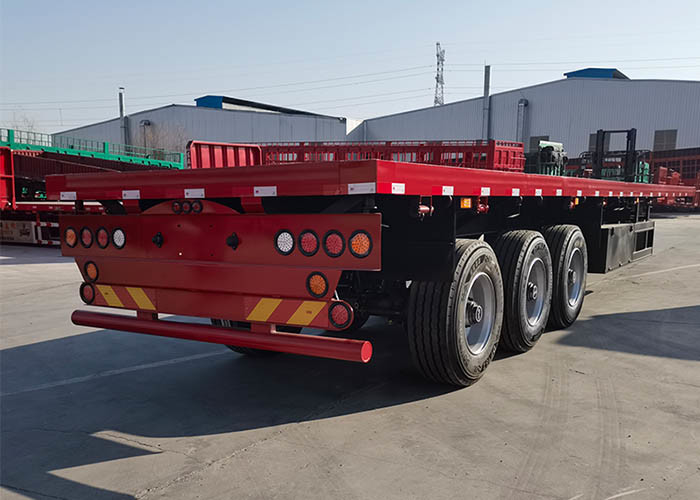

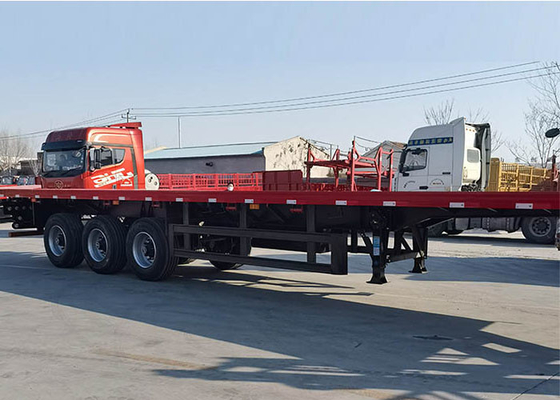

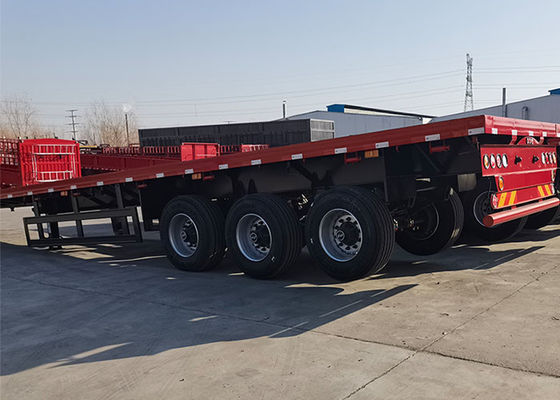

Flatbed Truck Trailer Of Details:
Workshop of Dump Semi Truck Trailer:
Flatbed Truck Trailer Of Advantages:
1. Extensive usage Fast and efficient. Mainly used for the middle&long-distance transport of the medium&heavy-duty and bulk goods, widely used for variety of the cargoes.
2. The whole vehicle adopts the advanced computer-aided design software to optimize the design,make the Frame reasonable offload&scientific design by FEA( Finite Element Analysis) according to requirement of the vehicle carrying quality.
3. Axles, tires and other supporting parts are all well-known products purchased from domestic and foreign manufacturers.
4. The product quality and reliable, widely used, has become the vehicle of choice for long-distance freight vehicles. The quality of this product is reliable,extensive usage, has become the preferred models of middle&long-distance freight vehicles.
Our service:
1.We will provide you one-to-one service throughout the entire process, answering questions about products before sales and checking and debugging equipment after sales, and assisting in equipment maintenance and testing.
2.Our company promises to provide one-year warranty for all new equipment and free consulting service for life.
3.After the equipment fails, we will reply to you within 24 hours and give you a solution within 48 hours.
FAQ:
Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok, but we need take apart the truck and you should reinstall in your country.
Q: How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q: I want to be your agent in my country, is that ok?
A: It’s ok, if your quantity is big, we will consider. For the first time 50 units is ok.
Q: How about your company's service, especially after-sale service?
A: we can satisfy your demand within 3-7 days. We always do our best to solve all the problems and put our customer's interests in the first place.
Q: What is your payment terms?
A: You can choose to the 30% prepaid and 70% paid before delivery or you can choose the LC 100% at sight.
Q: What is your lead time?
A: Usually it is 30-50 days after deposit received.
