Product Details:
Payment & Shipping Terms:
|
| King Pin: | JOST Brand 2.0 Or 3.5 Inch (bolted Or Welded) | Condition: | New |
|---|---|---|---|
| Function: | Transport 20ft 40ft Container And Heavy Duty Equipment | Light: | LED Light (specially Intended For Oversea Market) |
| Size: | Customize | Type: | Flatbed Trailer Truck |
| Suspension: | Mechanical Suspension / Air Suspension / Single Point Suspension | Max Payload: | 60T |
| Axle: | BPW Or FUWA | Landing Gear: | JOST Brand |
| High Light: | Container Flatbed Truck Trailer,60t Container Flatbed Truck Trailer,3 Axles Container Flatbed Truck Trailer |
||
In order to take care of the diversified uses, we equip 2/3/4Axles Hot-selling 3 Axles Flatbed Container Trailers with Frontboad with sufficient rope hooks and rope tighteners on both sides of our flatbed and drop side trailers.
With more than 15 years' exporting experiences, we has exported more than 800 units 3/4Axles Hot-selling 3 Axles Flatbed Container Trailers with Frontboad to Africa and Southeast Asia countries based on our rich design experiences and durable quality and reputations. We are always on the way to help your customers gain suitable trailers and reliable wealth accumulations.
| Tare Weight | About 7.1T |
| Dimension(mm) | 12500x2500x1550mm |
| Loading capacity(ton) | ≤60T |
| Axles | 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand |
| Tire | 12 units, 12.00R22.5 or 315/80R22.5 |
| Rim | 9.00-22.5 or 9.75-22.5 |
| Suspension | Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand) |
| Spring Leaf | 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets) |
| King Pin | JOST brand 2.0 or 3.5 inch (bolted or welded) |
| Landing Gear | JOST brand D200T or Chinese brand 28tons(double-speed) |
| Main Beam | Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel |
| Side Beam | 16mm or 18mm steel channel (material: Q235 steel) |
| Platform | 3mm-thick checkered plate |
| Brake Chamber | WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank |
| Twist Locks | 4,8,12 sets (lifting or screw type) (specially intended for oversea market) |
| valve | WABCO valve (specially intended for oversea market) |
| ABS | Optional |
| Light | LED light (specially intended for oversea market) |
| Voltage | 24V |
| Socket(Receptacle) | 7-pin Socket (for 7 wire harness) |
| Tool Box | 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs) |
| Painting | Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats |

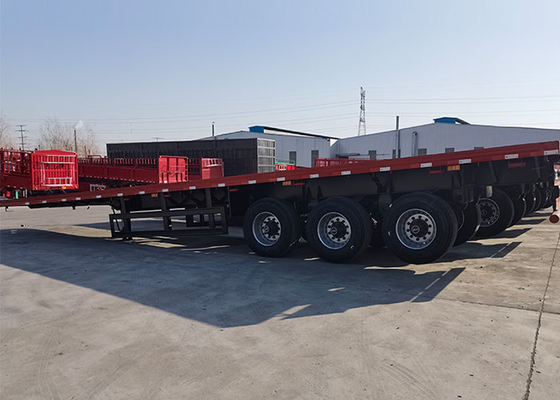

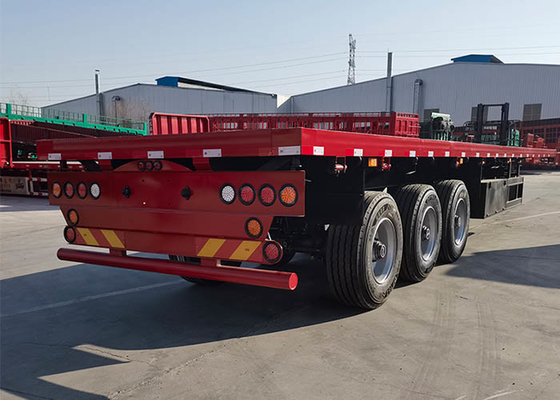

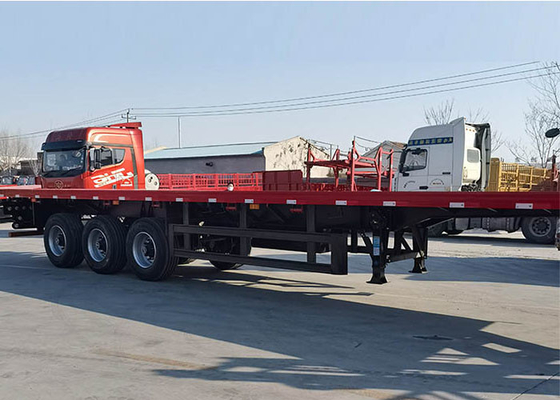

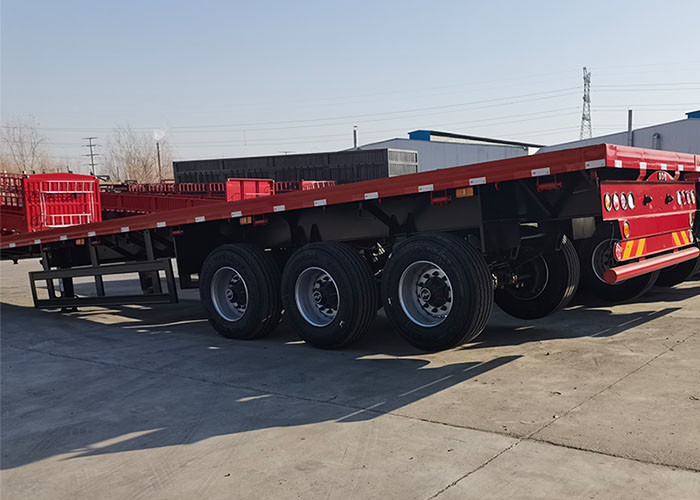

Flatbed Truck Trailer Of Details:
Workshop of Dump Semi Truck Trailer:
Our advantage:
Price advantage: We sell in factories without middlemen, so our price will be better than that of trading companies.
Quality advantage: From the moment the customer places an order, we will be equipped with a professional team. Professional personnel are responsible for the design, production, tracking and transportation. We adopt the principle of responsibility system, and the quality can be guaranteed.
Professional advantages: We have our own R & D team and design team. Our team has received professional training and good education, and is skilled in using CAD, SW and other drawing tools.
Service advantages: The staff will give the most favorable and accurate quotation to the customer within 2 hours according to the customer's requirements, make the most appropriate purchase scheme for the customer, and formulate the perfect solution according to the customer's after-sales demand within 10 hours.
FAQ:
Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok, but we need take apart the truck and you should reinstall in your country.
Q: How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q: I want to be your agent in my country, is that ok?
A: It’s ok, if your quantity is big, we will consider. For the first time 50 units is ok.
Q: How about your company's service, especially after-sale service?
A: we can satisfy your demand within 3-7 days. We always do our best to solve all the problems and put our customer's interests in the first place.
Q: What is your payment terms?
A: You can choose to the 30% prepaid and 70% paid before delivery or you can choose the LC 100% at sight.
Q: What is your lead time?
A: Usually it is 30-50 days after deposit received.
