Product Details:
Payment & Shipping Terms:
|
| Axle: | 3 Axle | Certification: | According To Customer's Requirement |
|---|---|---|---|
| Suspension: | Leaf Spring Suspension For Stake Semi Tariler | Electrical System: | 24 Volt Electrical System |
| Material: | Steel | Max Payload: | 70Tons |
| Tare Weight: | About 8.8T | Tire: | 12 Pieces 11R20 |
| High Light: | 60T Stake Semi Trailer,Stake Semi Trailer 24V,3 Axles Semi Trailer Q345 |
||

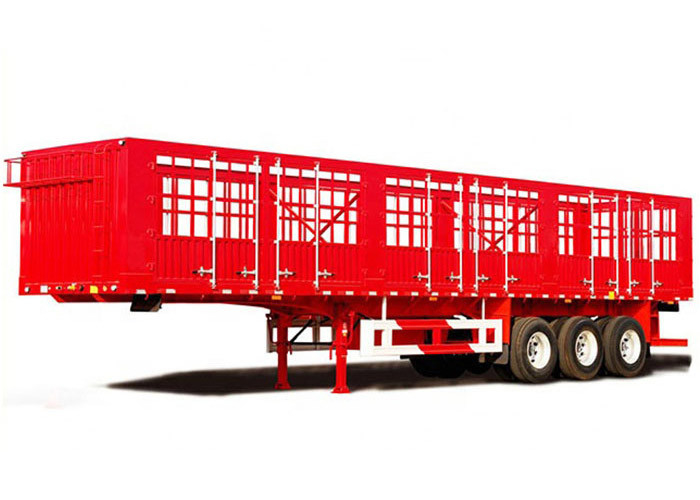

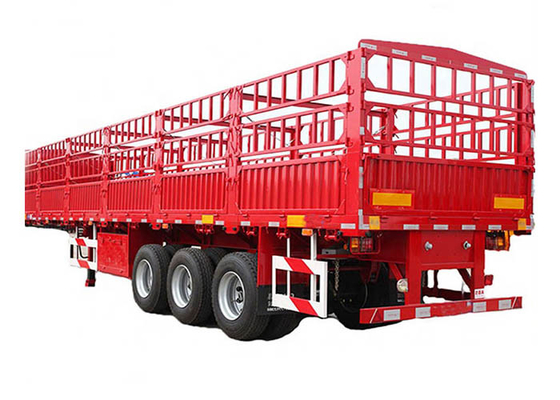

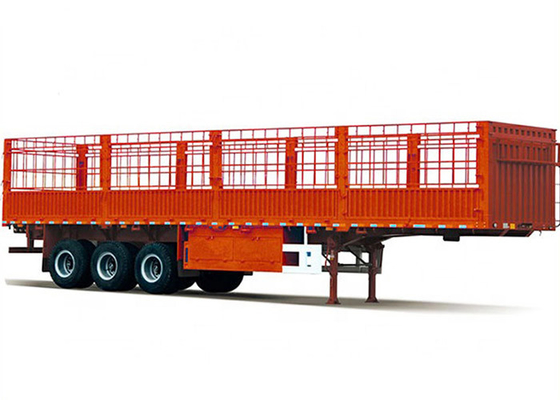

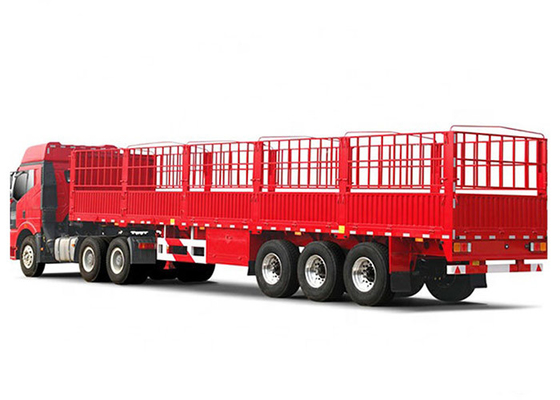

Transporting Bulk Cargo 3 Axle 60 Ton Truck Cargo Fence Stake Semi Trailer
Stake Semi Trailer Of Product descrption:
Our provide the flat bed trailer can be used to transport containers , bulk cargo and other goods , and we also can according to your requirements to make this trailer. Production the flatbed trailer all configurations and accessories used domestic and aboard famous brand. Our main beam material use Q345, it has high-strength and strong stiffness features. other type flatbed trailer , like extendable flatbed trailer , flatbed trailer for transporting logs , and flatbed trailer with side wall.
1. Multi functional design, ISO containers,timbers,bulk cargo, bagged cement or grain, animals transportation
Stake Semi Trailer Of Product parameters:
|
Tare Weight
|
About 8.8T
|
|
Dimension
|
12200×2500×3800mm (side wall : 600mm +Fence 1200mm)
|
|
Loading Capacity
|
70 T
|
|
Axle
|
Three Units of FUWA(brand) 16 Ton axle
|
|
Rim
|
12 pieces 8.00-20
|
|
Tire
|
12 pieces 11R20
|
|
Suspension
|
Three set axle mechanical suspension
|
|
Spring leaf
|
90(Width) mm× 13(Thickness) mm×10(Layer)
|
|
King pin
|
2.0 or 3.5inch bolts type
|
|
Support leg
|
28Tons ( Double speed)
|
|
Main beam
|
Height: 500mm, upper plate thickness is 14mm, middle plate thickness is 8mm, down plate thickness is 16mm; Material is Q345 Carbon
Steel. The floor is 3 mm , Material is Q235 carbon steel. |
|
Door
|
12pairs( 10 pair on the right side, 2 pair rear door);
|
|
Side beam
|
16mm channel steel
|
|
Brake chamber
|
Dual line , air brake, piggyback spring on all axles;
Six unit relay valve; six unit of T30/30 chamber; two units of reliable local brand 40L air tank; two units of reliable local brand standard coppery air-connector. |
|
Light
|
LED light
|
|
Electrical System
|
24V 7-pin ISO 1185 socket; two sets of reliable, local brand standard rear light, turn light, rear reflector, side light, side
reflector etc. One set of 6-core standard Cable |
|
Tool box
|
Two piece, 1.5m long-large size( Size can be chosen freely) ( equipped with 1 unit tyre spanner, 1 unit gudgeon sleeve and 1 unit
cranking bar) |
|
Painting
|
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paints.
|
|
Note: The parameters of the for Semi Trailer are just common configurations, not absolute. The specific configuration of the for Semi Trailer will be executed according to your needs.
|
|
Stake Semi Trailer Of Our advantage:
Our factory with more than 20 years' experience. Being famous in domestic and foreign countries, we concentrate on tank container and trailer's research and development. Our aim is to provide high quality and low price products for the customer. Experienced and technological team customize the best productions for customers. For any reliability& safety and economic related questions, we all have mature solutions at any time
2. The first-class brand of product, the source factory wholesale price, high cost performance.
3. After-sales service is accurate and in place, proactively and promptly deal with after-sales problems for you, and support video after-sales service, if necessary, an engineer can also be arranged for on-site service.
4. We will provide you one-to-one service throughout the entire process, answering questions about products before sales and checking and debugging equipment after sales, and assisting in equipment maintenance and testing.
5. Our company promises to provide one-year warranty for all new equipment and free consulting service for life.
6. After the equipment fails, we will reply to you within 24 hours and give you a solution within 48 hours.
FAQ:
1. What is your MOQ?
A: One unit.
2. Can you meet my special requirements?
A: Sure! We are a direct manufacturer, we have strong production capacity and research and development capabilities!
3. How is the quality of your products?
A: High quality has always been our advantage. We all use high-quality branded materials with 100% quality assurance. A procedure is established to inspect products, raw materials, process materials, finished materials that have been verified or tested, etc.at all stages of the manufacturing process.
4. How can I get the price of your vehicle?
A: You can contact us through any of the following contact methods. Our personalized service staff will reply you within 24 hours.
5. Is it possible to print our own brand on the vehicle?
A: It's totally acceptable.
6. What is the delivery time?
A: The delivery time is within 30-50 working days after receiving your prepayment.
