Product Details:
Payment & Shipping Terms:
|
| Loading Capacity: | 40T | Vehicle Weight: | 5.9-6.1T |
|---|---|---|---|
| King Pin: | 90#/50# | Condition: | New |
| Place Of Origin: | China | Axle: | 3*13T BPW/FUWA Axles |
| Main Beam: | T700L 8*10*5mm | Kingpin 3.5'': | 90# JOST Bolted Type |
| High Light: | SH800 Fence Semi Trailer,Fence Semi Trailer 40T 24 Ft,SH800 40T 24Ft Livestock Trailer |
||
Mainly used for turnover transportation in factories, docks, ports, airports, etc., and not for long-distance transportation on expressways. The flatbed trailer itself has no power and can be towed by a forklift or tractor. It is suitable for bulk cargo transportation in factories, docks, ports, warehouses and other areas.
We use high-quality SH800 steel to increase strength and toughness and acid, sulfur and corrosion resistance.
|
Dimension
|
13000mm*2550mm*1600mm/1800mm/2000mm/2200mm
|
|
Vehicle Weight
|
5.9-6.1T
|
|
Loading Capacity
|
40T
|
|
King Pin
|
90#/50#
|
|
Axle
|
3*13T BPW/FUWA Axles
|
|
Tire
|
LONGMARCH 12R22.5
|
|
Main Beam
|
T700L 8*10*5mm
|
|
Landing Gear
|
28 Tons , Two speed manual operation
|
|
Suspension System
|
Leaf spring suspension / Air suspension
|
|
Braking System
|
6 pair Sorl ABS Kormee4S/3M
|
|
Electronic System
|
Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
|
|
Painting
|
Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will
be available |
|
Tool Box
|
2 tool box with a set of standard trailer tools
|
|
Spare Tire Frame
|
2
|

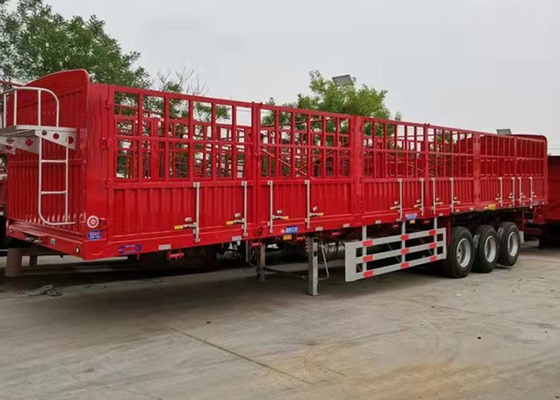

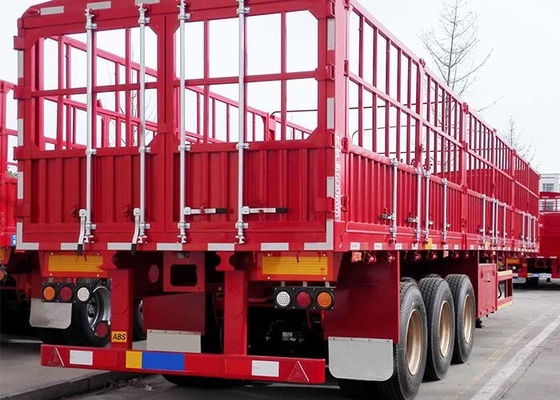

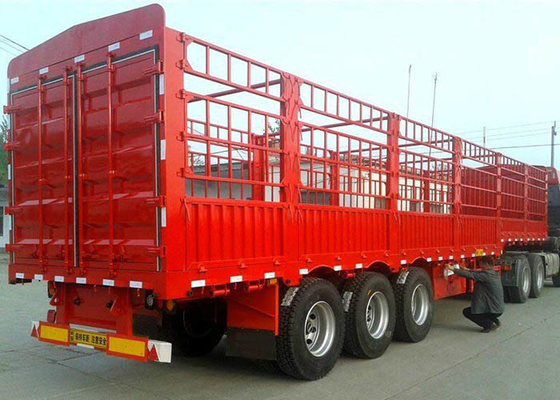

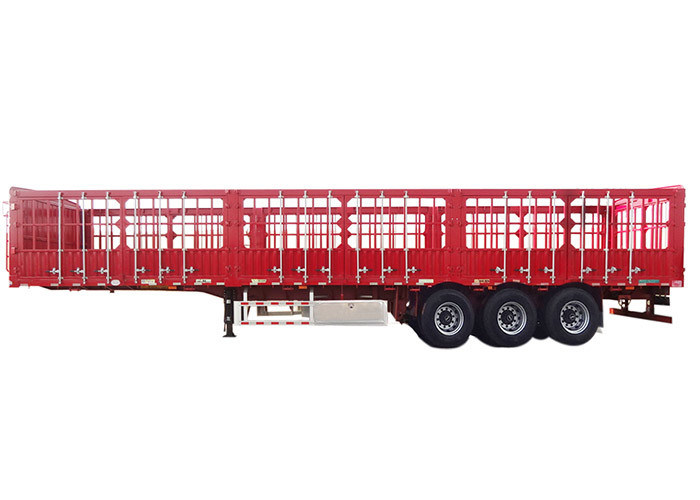

Stake Semi Trailer Of Details:
Our Advantages:
Two water cycle purification and dust- free coating production lines, effectively solving the primer and topcoat second pollution, the car body adopts two-component epoxy zinc-rich paint, anti-corrosion, anti-scratch.
Added molybdenum alloy and vanadium alloy to increase the strength, toughness and low-temperature impact resistance of the beam.
FAQ:
Q: Are you a manufacturer?
A: Yes, we are a manufacturer. We have passed ISO and CE certificate and our products have been exported to over 20 countries.
Q: Can you produce customizable machines?
A: Yes, we can provide customizable machines according to your requirements. We have 8 senior engineers and can design and supply
higher configuration.
Q: how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q: what can you buy from us?
Sinotruk howo truck head,Heavy duty sand/stone/mine/mud dump truck,Customized low bedsemi trailer,Oil tanker bulk cement semi trailer,Water milk truck.
