| Curb Weight: | 6.2T | Side Frame: | Channel Steel |
|---|---|---|---|
| Loading Capacity: | 50T | Tire: | 12R22.5 |
| Accessories: | 1 Standard Tool Box | Spare Tire Carrier: | Spare Tire Carrier Factory Standard |
| Landing Gear: | One Side Operation 28T | Kingpin 3.5'': | 90# JOST Bolted Type |

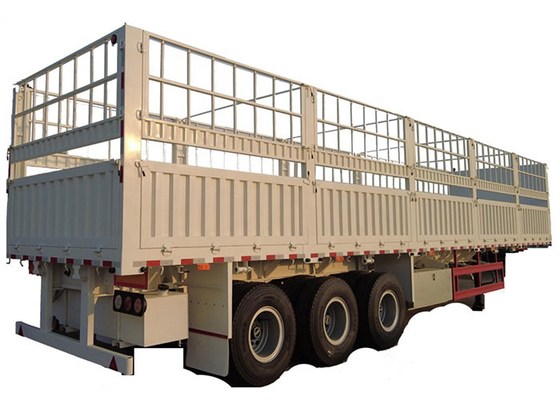

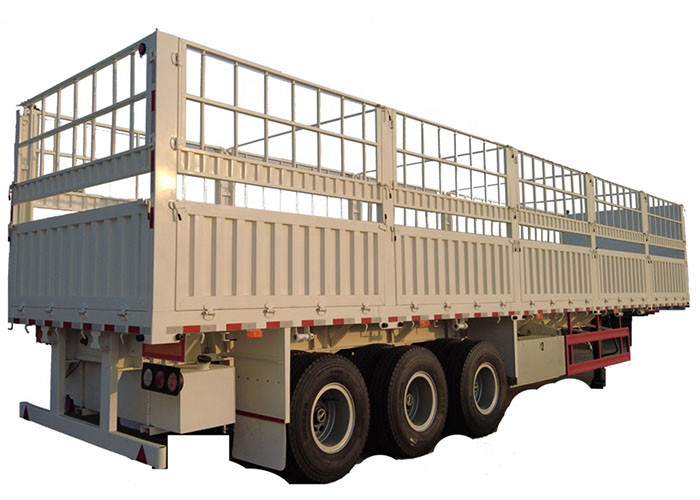

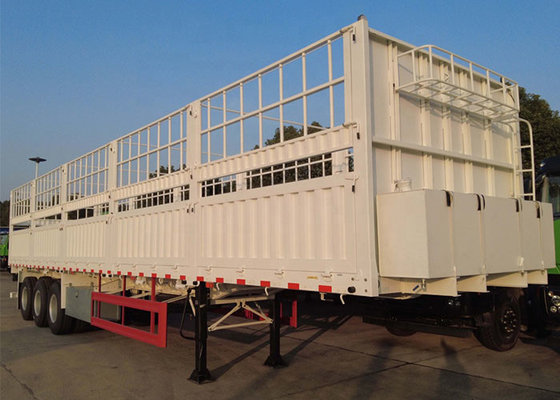

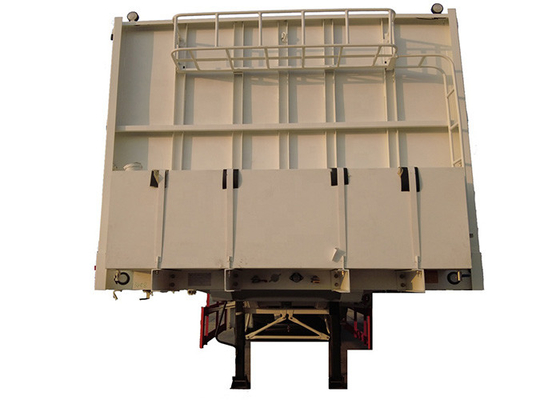

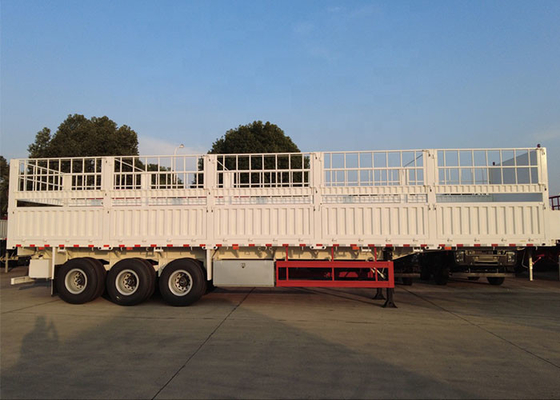

| High Light: | 80T Cow Transport Trailer 13T,2500mm Cow Transport Trailer 30T,2500mm Semi Trailer Container Fence |
||
1. Mainly used for the middle&long-distance transport of the medium&heavy-duty and bulk goods, widely used for variety of the cargoes.
2. Extensive usage Fast and efficient.
3. The quality of this product is reliable, extensive usage, has become the preferred models of middle&long-distance freight vehicles.
4. The whole vehicle adopts the advanced computer-aided design software to optimize the design, make the Frame reasonable offload&scientific design by FEA( Finite Element Analysis) according to requirement of the vehicle carrying quality.
5. Axles, tires and other supporting parts are all well-known products purchased from domestic and foreign manufacturers.
|
Item
|
Details
|
|
Size
|
12400mm length*2500mm width, details are according to the drawing.
|
|
Axle
|
13T axle, braking pad width 220mm, without ABS.
|
|
Tire
|
12R22.5
|
|
Leaf spring
|
10 pieces, 13mm thickness, 90mm width.
|
|
Twist lock
|
12 set; can load 1*40', 2* 20' or 1*20' containers.
|
|
Braking system
|
2 lines air braking system with air tank, emergency relay valve, braking chambers and mechanical slack adjusters.
|
|
Electrical system
|
24 volt electrical system. 7 pin electrical connector. parking, stop, reverse, number plate and indicator lights. rear lights conform to European standard, rear, front and side reflectors.
|
|
Relay valve
|
WABCO brand, customers can also choose domestic brand.
|
|
Landing gear
|
One side operation 28T
|
|
Kingpin 3.5''
|
90# JOST bolted type
|
|
Chamber
|
T30/30 on front and middle two axles, T30 on rear axle.
|
|
Side beam
|
16# channel steel
|
|
Floor
|
3mm checkered plate
|
|
Cross beam
|
80*40 square tube
|
|
Shot blasting and paint
|
Chassis is completely shot blasting to SA 2.5 grade, and painted with final layer of international Zinc Epoxy primer (30 Microns DEF), second layer of international high built polyurethane under coat (40 micros DFT). Third and forth layers international alkyd finish top coat. total 80-100 microns.
|
|
Spare tire carrier
|
Factory standard
|
Stake Semi Trailer Of Production Processes:
Stake Semi Trailer Of Shipping
Waxed Packing by RO-RO or Vessel:
1. One unit was shipped separately；
2. Two or units were packed as one set；
Shipping by Containers:
1. One or two units were packed in a container;
2. Shipping by containers via CKD or SKD;
FAQ:
Q: Are you a manufacturer?
A: Yes, we are a manufacturer. We have passed ISO and CE certificate and our products have been exported to over 20 countries.
Q: Can you produce customizable machines?
A: Yes, we can provide customizable machines according to your requirements. We have 8 senior engineers and can design and supply
higher configuration.
Q: how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q: what can you buy from us?
Sinotruk howo truck head,Heavy duty sand/stone/mine/mud dump truck,Customized low bedsemi trailer,Oil tanker bulk cement semi trailer,Water milk truck.
