Product Details:
Payment & Shipping Terms:
|
| Hydraulic Cylinder: | Hyva Or Chinese Brand This Tipping Trailer | Axle Brand: | BPW, Or Other Famous Chinese Brand For This Tipper Trailer |
|---|---|---|---|
| Suspension: | Air Suspension/Leaf Spring | Loading Capacity: | 100tons For The Tipper Truck Trailer |
| Axle Numbers: | 6pcs For Dump Trailer | Dump Box Type: | Square For U Type For This Dumper Trailer |
| High Light: | 100 Ton Hyva Heavy Duty Dumper,Heavy Duty Dumper Truck Q235,Q235 Tipping Semi Trailer |
||
3 Axle 100 Ton Heavy Duty Truck Mining Dumper Dump Tipper Tipping Semi Trailer
Dump semi-trailers are suitable for the transportation of bulk cargo such as coal, ore, and building materials.
1. The carriage adopts side-turning and rear-turning self-unloading methods, which can effectively improve the transportation efficiency of the loading and unloading machine to transport the bulk cargo.
2. Both the frame and the longitudinal beam of the carriage are welded with high-quality manganese plates, and the cargo box has two types: dustpan and rectangle. It has high strength, strong lifting force, good rigidity, toughness, strong bearing capacity and no permanent deformation.
3. Sophisticated technology: the main components are processed with advanced equipment, the longitudinal beams are fully automatic submerged arc welding, and the assembly machine is used for precise assembly of the axle and steel plate spring.
Product Features
1. Lighter tare weight . dump trailer adopts high-strength steel . It with a higher loading performance than the normal Q345 steel . In this case , the trailer's tare weight reduced by 20%~40% .
2. Less fuel . cimc dump trailer can save 4~5L diesel for you within 100km .
3. HYVA hydraulic lifting cylinder with a strong lifting power and its performance is stable . It also with the global quality warranty .
4.Fast discharge and less residual . The inside of tipper trailer body is smooth and without corner pockets . So, the trailer's discharge can be faster .
5.Lower ( 200-300mm ) centre of gravity due to no stiffeners, increases stability.
6. The optimized braking system makes the dump trailer can stop within a shortest braking distance .
| Product Specifications | ||||
| Tare Weight | About 16 Tons | |||
| Dimension | 11600*2500*3950 mm | |||
| Loading Surface Size | 10500*2350*1600 mm | |||
| Loading Capacity | 100 Tons | |||
| Axle | 6*16Ton(1840mm); FUWA Brand | |||
| Rim | 24 pcs (9.0*22.5) | |||
| Tire | 24 pcs (12R22.5); Chinese Brand | |||
| Suspension | 3sets of the Mechanical suspension + 3sets of the air suspension | |||
| Spring leaf | 90mm*13mm*10pcs-8sets | |||
| King pin | 2.0 or 3.5inch Bolts type or Welding type | |||
| Support leg | 28Tons, Yahua | |||
| Main Beam | high-tensile steel Q345, welded by automatic submerged-arc processes.Main frame is height 500mm, width:140mm; Upper Plate:18mm; Down Plate:20mm, Middle Plate: 10mm; | |||
| Cross Beam | Q345 Channel Steel, 100mm Channel Stell. | |||
| Cargo Box | Q235 Manganese plate, Side wall: 6mm, Bottom Plate:8mm; | |||
| Oil Cylindner | 200-5-8130 lifting Oil Cylinder. | |||
| Braking System | Double Line; T30/30 + T30 spring brake chamber(12pcs), 40L air tanks(2pcs); | |||
| Valve | KANGJIAN valve | |||
| Electrical System | glad-hand, 24V coupler, rear lamp, side lamp, 7-pin coil wireless, LED lights; | |||
| Accesssories | one standard tool box and one set of spare tire carrier, Shaft wrench, Joystick; | |||
| Painting | Sand blasting before painting; One coats of primer, anti corrosion Two coat of finish painting; Colour painting -Optional. |
|||

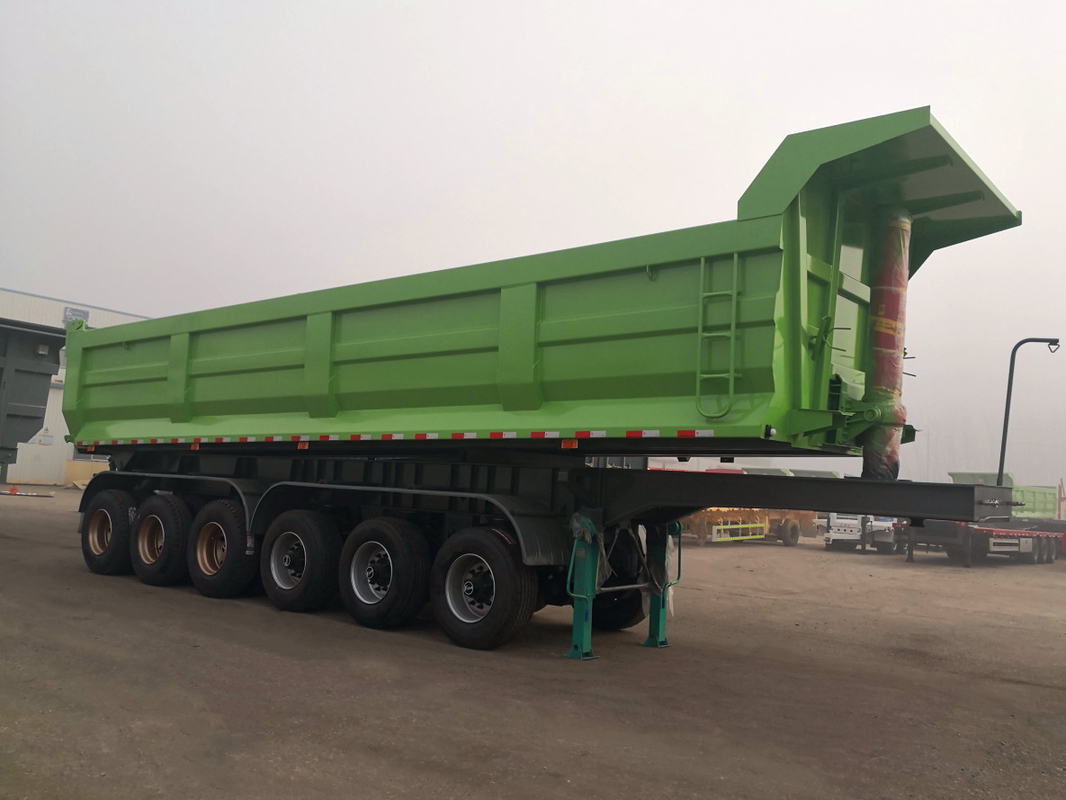

More picutures for this tipper dump trailer
Packing and Shipping for dump trailer
We have been engaged in this industry for more than 30 years. High quality has always been our advantage.We have perfect transportation methods, which can greatly save your transportation cost.Our semi trailers can transport by Bulk Cargo Ship/ro-ro /Container, etc.
Workshop pictures
FAQ
1. What's The Guarantee Period On Our Products?
All Products We Export Has 1 Year Guarantee Period
As Exporting Experience For Years, All Products From Our Factory Can Meet The Exporting Country's Standards On Vehicles, All Vehicles Will Be Built Upon The Related Countries' Road Condition, And we will Provide Customer The Best Suggestions Before Placing The Order.
2. If Customized Service Provided?
- Yes, Please Contact us, We Can Offer Customized Service On Vehicle Design / Painting, etc.
- OEM Available
3. If Our Vehicle/Trailer Can Couple With Your Tractor Head?
- 90% Of The Truck In The Market Can Couple With Our Vehicle, As HOWO, Shacman, Dongfeng, Volvo...
- If Other Brand Truck Head, Please Inform us Before Order Placing, We Need To Adjust The Height And Overhang To Couple With The Using Truck.
4. Which payment terms can we accept?
Normally we can work on T/T term or L/C term.
On T/T term, 30% down payment is required in advance, 70% balance shall be settled before delivery
On L/C term, normally need 10-30% down payment by T/T, 70% by L/C at sight.
5. What logistics ways we can work for shipment?
We can ship all trailers by various transportation tools.
For 90% of our shipment, we will go by sea, to all main continents such as South America, Middle East, Africa, Oceania, etc, either by container or RoRo/Bulk Shipment.
For neighborhood countries of China, such as Russia, Tajikistan, Kazakhstan, Mongolia, etc, we can ship trucks by road or railway.
