Product Details:
Payment & Shipping Terms:
|
| Hydraulic Cylinder: | Hyva Or Chinese Brand This Tipping Trailer | Axle Brand: | BPW, Or Other Famous Chinese Brand For This Tipper Trailer |
|---|---|---|---|
| Suspension: | Air Suspension/Leaf Spring | Loading Capacity: | 100tons For The Tipper Truck Trailer |
| Axle Numbers: | 6pcs For Dump Trailer | Dump Box Type: | Square For U Type For This Dumper Trailer |
| High Light: | Tipper Truck Trailer 120 Ton Q345B,BPW Tipper Truck Trailer,120 Ton Semi Truck Dump Trailer 6 Axles |
||
Dumper Semi Trailer 6 Axles Front Lifting Style Dump Semi-trailer 120 Ton With Hydraulic Cylinder for Sale
Dump semi-trailers are suitable for the transportation of bulk cargo such as coal, ore, and building materials.
1. The carriage adopts side-turning and rear-turning self-unloading methods, which can effectively improve the transportation efficiency of the loading and unloading machine to transport the bulk cargo.
2. Both the frame and the longitudinal beam of the carriage are welded with high-quality manganese plates, and the cargo box has two types: dustpan and rectangle. It has high strength, strong lifting force, good rigidity, toughness, strong bearing capacity and no permanent deformation.
3. Sophisticated technology: the main components are processed with advanced equipment, the longitudinal beams are fully automatic submerged arc welding, and the assembly machine is used for precise assembly of the axle and steel plate spring.
Product Features
1. Lighter tare weight . dump trailer adopts high-strength steel . It with a higher loading performance than the normal Q345 steel . In this case , the trailer's tare weight reduced by 20%~40% .
2. Less fuel . cimc dump trailer can save 4~5L diesel for you within 100km .
3. HYVA hydraulic lifting cylinder with a strong lifting power and its performance is stable . It also with the global quality warranty .
4.Fast discharge and less residual . The inside of tipper trailer body is smooth and without corner pockets . So, the trailer's discharge can be faster .
5.Lower ( 200-300mm ) centre of gravity due to no stiffeners, increases stability.
6. The optimized braking system makes the dump trailer can stop within a shortest braking distance .
| Function | Transport sand,stone |
| Main beam |
Material is Q345B, The height of the beam is 500 mm, upper plate is14mm, down plate is 16mm,middle plate is 8mm. |
| Axle | 6x16ton FUWA brand(other brand can be choice |
| Cargo thickness | Bottom 10mm, side 8mm |
| Loading Capacity | 80-100 tons |
| King pin | 90mm or 50mm |
| Landing gear | 28Tons |
| Tire | 12R22.5,385/65R22.5 |
| Brake system | Dual Line braking system |
| Brake air chamber | Six big double air chamber |
| Spare wheel bracket | 2 pieses |

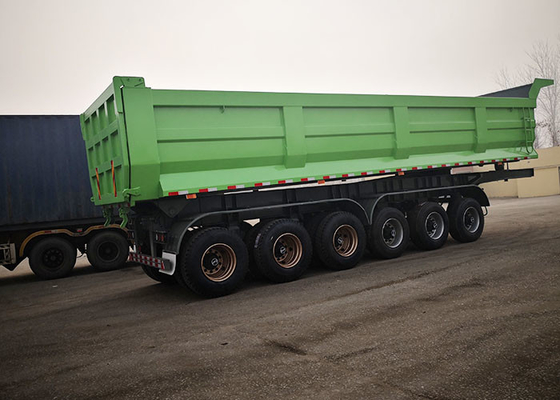

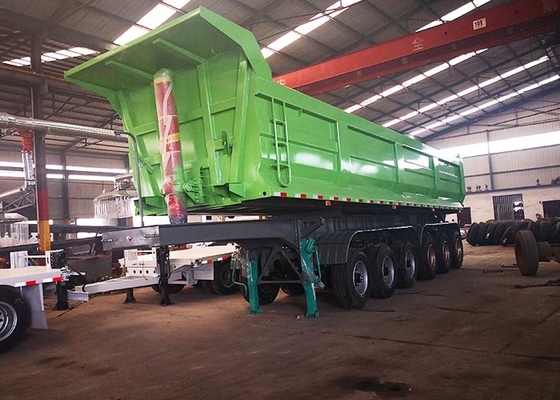

More picutures for this tipper dump trailer
Packing and Shipping for dump trailer
We have been engaged in this industry for more than 30 years. High quality has always been our advantage.We have perfect transportation methods, which can greatly save your transportation cost.Our semi trailers can transport by Bulk Cargo Ship/ro-ro /Container, etc.
Workshop pictures
Q1. What's your MOQ?
One unit trailer or truck.
Q2. Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
Q3.How about your product quality?
High quality has always been our advantage.We all use high quality brand materials with 100% quality assurance.Established a procedure to check products at all stages of the manufacturing process,raw materials,process materials,validated or tested materials finished goods ect.
Q4. How can I get the price of your dump truck?
You can contact with us through any of the following contact information. Our personalized service person will respond you within 24 hours.
Q5. Is it available to print our own brand on the dump truck?
Totally acceptable as you wish.
Q 6: What's the delivery time?
The delivery time is within 30-50 working days after receiving your advance payment.
Q 7:How do you transport the dump truck?
We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.
Q8: Can you supply some quick-wear truck or dump truck parts?
Yes, we can supply truck and dump truck, parts as your request.
