Product Details:
Payment & Shipping Terms:
|
| Hydraulic Cylinder: | Hyva Or Chinese Brand This Tipping Trailer | Axle Brand: | BPW, Or Other Famous Chinese Brand For This Tipper Trailer |
|---|---|---|---|
| Suspension: | Air Suspension/Leaf Spring | Loading Capacity: | 100tons For The Tipper Truck Trailer |
| Axle Numbers: | 6pcs For Dump Trailer | Dump Box Type: | Square For U Type For This Dumper Trailer |
| High Light: | 3100mm Truck Tipper Trailer,Truck Tipper Trailer 12R20,50T 12R20 3 Axle Tipper Truck |
||

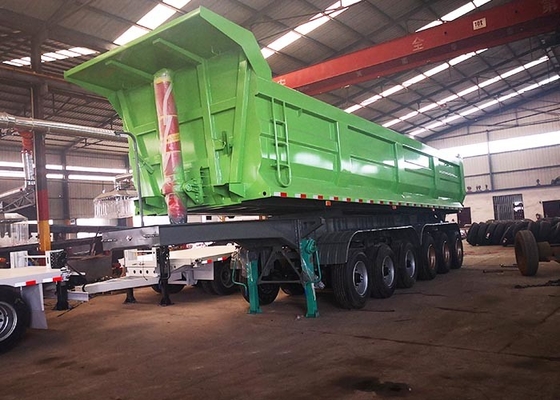

3/4 Axle 80 ton U Shape Rear Dump Box Tipper Truck Semi Trailer
Dump semi-trailers are suitable for the transportation of bulk cargo such as coal, ore, and building materials.
1. The carriage adopts side-turning and rear-turning self-unloading methods, which can effectively improve the transportation efficiency of the loading and unloading machine to transport the bulk cargo.
2. Both the frame and the longitudinal beam of the carriage are welded with high-quality manganese plates, and the cargo box has two types: dustpan and rectangle. It has high strength, strong lifting force, good rigidity, toughness, strong bearing capacity and no permanent deformation.
3. Sophisticated technology: the main components are processed with advanced equipment, the longitudinal beams are fully automatic submerged arc welding, and the assembly machine is used for precise assembly of the axle and steel plate spring.
Product Features
1. Lighter tare weight . dump trailer adopts high-strength steel . It with a higher loading performance than the normal Q345 steel . In this case , the trailer's tare weight reduced by 20%~40% .
2. Less fuel . cimc dump trailer can save 4~5L diesel for you within 100km .
3. HYVA hydraulic lifting cylinder with a strong lifting power and its performance is stable . It also with the global quality warranty .
4.Fast discharge and less residual . The inside of tipper trailer body is smooth and without corner pockets . So, the trailer's discharge can be faster .
5.Lower ( 200-300mm ) centre of gravity due to no stiffeners, increases stability.
6. The optimized braking system makes the dump trailer can stop within a shortest braking distance .
| 4 axle 80 tons | |
| Transport medium | side unloading dump semi trailer |
| Dimension(mm) | 13000×2550×3100mm |
| curb weight | 13tons |
| Load | 80tons |
| Dimension(mm) | 13000×2550×3100mm |
| Bearing surface size | 12800×2450×1600mm |
| Traction pin height | 1300mm |
| Wheelbase | 1310mm |
| Track | 1840mm |
| Girder | Q345 |
| Height 500mm, width 140mm, upper wing 20mm, lower wing 20mm, vertical plate 10mm; | |
| Beam | Q345 channel steel |
| 100mm channel steel | |
| Base plate and side plate | Q235 manganese board |
| Bottom 6 side 4 | |
| Suspension | 3-axis heavy mechanical suspension |
| Leaf spring | 120*20*12-6 |
| Axle specifications / brand | 20T Strengthening shaft/ 1840 FUWA |
| Number of axles | 3 |
| Tire specifications | 12R20 |
| Number of tires | 12+1 |
| Steel ring specifications | 9.0-20 |
| Number of steel rings | 12+1 |
| Leg specifications | 28T |
| Hydraulic cylinder | 150-6+1 lifting cylinder |
| Traction pin specification | 50# or 90# interchangeable |
| Brake valve brand | KANGJIAN |
| Brake chamber specifications / quantity | T30/30-6sets |
| Brake system | Emergency braking system, air brake, double air line pipe, 6 T30/30 brake air chambers, two 40L gas storage tanks |
| Circuit socket | 7-hole socket |
| Voltage | 24v |
| Lamp | Led |
| Two rear taillights (including two steering, two brake lights, two lights constantly), eight side lights, two rear-end triangular reflectors; | |
| Toolbox | 1 |
| Tool | Axle wrench, rocker |
| Spare tire carrier | 1 |
| colour | according to customers needs |

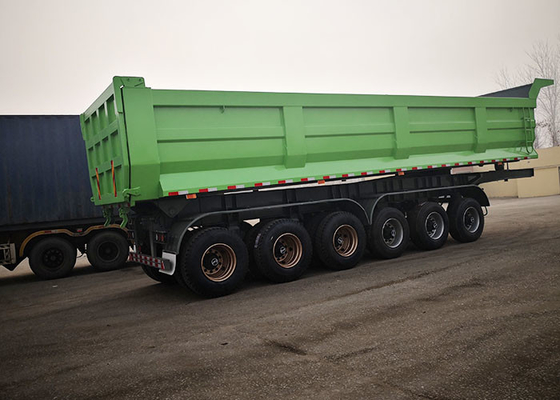

More picutures for this tipper dump trailer
Packing and Shipping for dump trailer
We have been engaged in this industry for more than 30 years. High quality has always been our advantage.We have perfect transportation methods, which can greatly save your transportation cost.Our semi trailers can transport by Bulk Cargo Ship/ro-ro /Container, etc.
Workshop pictures
FAQ
1.Payment term: T/T & L/C
2.Warranty : 12 months (normal situation)
3.Delivery time: 15 working days (big quatity need negotiate)
4.MOQ: 1 unit
5.Specification: as your request or refer to the quotation sheet for different product parameters.
6.color: factory recommend or as your needs.
7.Quality control: 1)Various production line processes.2)QA & QC quality control and inspection
3)welcome visit our factory at anytime.
8. 24 hours online for your services.
