Product Details:
Payment & Shipping Terms:
|
| Use: | Truck Trailer | Manganese Plate Type: | Q345B |
|---|---|---|---|
| Material: | Steel | Tire Number: | 12 |
| Type: | Semi-Trailer | Main Beam: | Upper 14, Under 16, Plate 8+6 |
| Leaf Spring: | 9 Pieces, 16mm Thick, 100mm Wide | Model: | 3Axle 60Ton Dump Trailer |
| High Light: | Hydraulic 16mm Tipper Trailer Truck,Tipper Trailer Truck 70000kg,70000kg 3 Axle Semi Trailer |
||

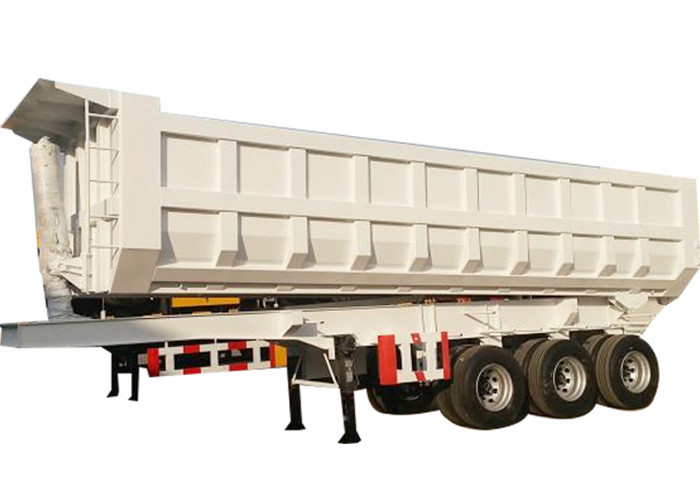

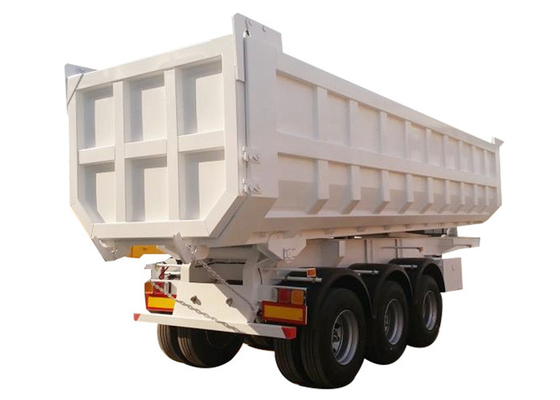

Tipper Truck Trailer Hydraulic 3 Axle Semi Trailer 70 Ton Dump Trailer Truck
Tipper Truck Tralier Of Product description:
End Dump Tipper Trailer is the front end of the trailer connected to the rear end of the tractor. Part of the total weight of the trailer is borne by the tractor. It doesn’t have itself power, it is carried together with the truck head, and the end dump trailer for sale is driven by the tractor.
Hydraulic End Dump Tipper Trailer for sale can be customized from 15 tons to 80 tons semi tipper trailers for sale, 80 tons to 120 tons tipper tractor trailer, 120 tons-180 tons tipper semi trailer of different tonnage according to the different cargoes. The common volumes are 30 cubic meters semi tipper trailer, 32 cubic meters semi tipper for sale, 35 cubic meters, 45 cubic meters, 50 cubic meters, 60 cubic meters, 80 cubic meters and so on.
Tipper Truck Tralier Of Product parameters:
| Dimension: | 9500*2550*3500mm ( inside dimension ) |
| Tare Weight (semi trailer): | About 15600kg |
| Total volume(m³): | 30m³ or less than 100tons |
| Sidewall thickness: | 4 - 6mm |
| Endplate: | 8mm |
| Axle: | 13T/16T, FUWA / BPW / CIMC Brand |
| Rim: | 8.0-20 or 9.00-20 |
| Tire: | 8.25R20/10.00R20/11.00R20/12R22.5 |
| Suspension: | Mechanical suspension |
| Spring leaf: | 90(W)mmx13(Thickness)mmx10 layers |
| Kingpin: | JOST brand 2.0 or 3.5inch(bolted or welded type) |
| Landing gear: | JOST brand |
| Lifting System: | Full set of HYVA lifting cylinder |
| Main beam: Height: | 480mm-500mm, Upper plate: 16mm-25mm, |
| ABS: | Optional |
| Light: | LED light (especially intended for overseas markets) |
| Toolbox: | 1 set |
