| Name: | 2axle Yard Container Carrier Truck Semi Trailer | Leaf Spring: | 10/12/10 For This Container Semi Trailer |
|---|---|---|---|
| Braking System: | 2 Line Air Braking For This Terminal Container Trailer | Electrical System: | 24 Or 12 Volt Electrical System |
| Suspension: | Mechanical Or Air Suspension | Loading Capacity: | 65-70tons For The Bobcart Container Trailer |
| High Light: | Suspension Container Chassis 40ft,Container Chassis 40ft 2500mm,2500mm Chassis Semi Trailer |
||

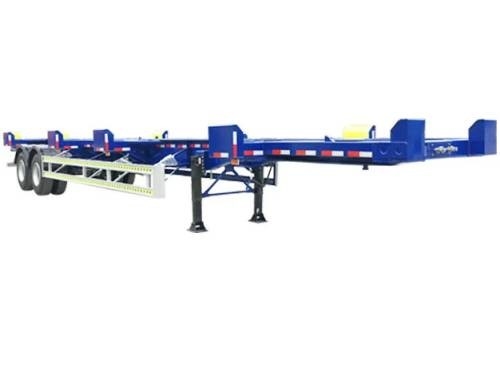

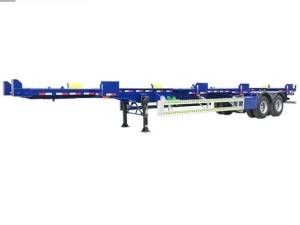

20FT 40FT 45Feet Shipyard Transporter Skeleton Container Chassis Terminal Semi Trailer
FUNCTION for Terminal Semi Trailer:
1.Usage:In the port for containers or bulk cargos' transportation.
2.The rated capacity varies widely from 30Tons to 65Tons, and the dimension different from 6100mm to 15820mm, we can manufacture it according to your needs.
3.Axles:Fuwa / BPW with different tonnages by your need with price differences.
4.Suspension: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc.
5.Loading Deck can be skeleton or flatbed.
FEATURES for Terminal Semi Trailer:
***Removal of inter-connecting twist-lock on trailer;
***Easy loading container guide;
***Special rear guide was designed to avoid interfering container rear door locking bars,and would not cause damage to the camp keeper on the container.
***Spring-loaded retractable container stopper;
***Specially designed suspension system for high frequency ON/OFF loading;
***Twin-lift operation;
***Solid Cushion tyre;
***Soft side fender;
***Protective side-rail(Optional);
***Four outer most comers are with tapered to reduced damage to the other object(container or trailer);
ADVANTAGE for Terminal Semi Trailer:
***Efficient lead: Cutting the raw material adopting imported CNC plasma cutting machine, Material no deformation,high precision cutting.
***Skillful techniques:with the experienced&skilled welding and assembly etc. professionals; adopting the quality control system of the process inspection and each
process checks,to provide variety of terminal trucks with advanced performance and high-quality types for the global market.
***Procurement advantages: All materials will not be lower than the strength grade of the 16Mn material.
***Advanced technology: the world's most advanced welding technology, ensure welding finished no distortion, no deformation for the parts and vehicle frame.
***Precise adjustment: Adopting the United States imported laser correction shaped instrument, adjust the axle, to avoid early damage of the suspension parts and
abnormal wear of the tires.
***Quality assurance: the Main beam welding using carbon dioxide gas-shielded automatic welding, welding equipment adopts imported welder, can ensure the quality.
OPTIONS for Terminal Semi Trailer:
1-20ft,30ft,40ft,45ft,48ft,50ft,53ft container transporting optional with twist locks
2-flatbed or skeleton chassis type
3-Main beam:500mm height,140mm Q345 or T70 hight strong steel
4-Suspension; Rigid, single point or air suspension
5-material of the main beam: Q345
6-Axles number: 2 3 4 axles.
7-Design type; Straight beam
8-Jost landing gear, FUWA axles and Tri-angle tires
9-extendable or sliding type optional
| Product Specifications | |||
| Brand | JSXT | Model | JSX4565TST |
| Function | The trailer is designed for transporting ISO containers 1x20’, 2x20’, 1x40’ or 1x45’. | ||
| Length | Total:14100 mm; Containerplatform:13750 mm |
||
| Width | Total:2780 mm; Containerplatform:2500 mm |
||
| Height | Total:1820 mm; Containerplatform:1500 mm; Fifth wheel coupling:1180 mm |
||
| Front fitting radius | 1545 mm | Rear overhang | 2530 mm |
| Max 5th wheel load | 29.9 T | Wheel base | 1310 mm |
| Tare weight | 7 Tons | Loading Capacity | 65 T |
| Axle | 2*16T FENGAO Brand axle | Suspension | Mechanical suspension |
| Rim | 8 pcs (9.0-22.5); XINGBO Brand | ||
| Tire | 8 pcs (12R22.5); LINGLONG Brand | ||
| Spring leaf | 90(Width)mm*16(Thickness)mm*10(Layer) | ||
| King pin | 2.0 or 3.5 inch bolts type or Welding type | ||
| Support leg | 25Ton FUWA (Double speed) | ||
| Main beam | Height: 500mm, Upper plate thickness is 16mm, Middle plate thickness is 10 mm, Down plate thickness is18mm. [Material is Q345 carbon Steel.] The floor is 3mm, [Material is Q235 carbon steel.] |
||
| Brake chamber | A system with emergency brake and parking brake; Dual line,air brake, piggyback spring on all axles; Six units of T30/30 chamber; Two units of reliable local brand 40L air tank; |
||
| Valve | WABCO valve | ||
| Electrical System | 24V 7-pin ISO 1185 socket; two sets of reliable, local brand standard rear light, turn light, rear reflector, side light, side reflector etc; One set of 6-core standard Cable. |
||
| Tool box | One piece, 1.m×0.5m×0.5m(Size can be chosen freely) [Equipped with 1 unit tyre spanner, 1 unit gudgeon sleeve and 1 unit cranking bar] |
||
| Painting | Sand blasting before painting ; one coats of primer, anti corrosion ; two coat of finish painting ; Colour painting -Optional . |
||
About the factory for Terminal Semi Trailer:
Our factory has very advanced equipment, so the production efficiency must meet your order quantity.As you can see in the picture, the production process is very
elaborate.Above all, our workers are very serious and efficient.All I have said above is believable and guaranteed.
About the packing for Terminal Semi Trailer:
We'll try to help you save transportation costs.We have been in contact with many customers, so we have good ways for semi trailer.
