Product Details:
Payment & Shipping Terms:
|
| Axle: | 2 Axle Of Fuwa/BPW/other Axle | Kingpin: | JOST Brand 2" Bolt-in King Pin |
|---|---|---|---|
| Weight: | 5000kg | Material: | Steel |
| Certificate: | CE | King Pin:: | 2"(50mm)or3.5"(90mm) |
| Suspension: | Mechanical/Air Suspension | Tire: | 11R22.5 12R22.5 Optional |
| High Light: | 2 Axles Skeletal Container Semi Trailer T700,Skeletal Container Semi Trailer T700,T700 40ft Container Chassis |
||
Container Semi Trailer 2 3 Axles 20ft 40ft Transport Transport Skeleton Container Chassis Semi Truck Trailer
Skeleton Semi Trailer:
Skeleton semi-trailer, mainly used in the logistics system of ships, ports, routes,highways, transfer stations, bridges, tunnels, and multimodal transport.It is specially used for the transportation of various containers such as 20.40.45.48.53 feet.
20ft container skeleton truck semi trailer is using to transport 20gp containers, the frame is heavy duty and extra durability designed l beam; opting for high tensile steel with T700, welded by automatic submerged-Arc processes. guarantee the quality and stability.
parameter:
| Container Transport Flatbed Truck Semi Trailer With Container Locks | |||||
| Wheel Base (mm) | 1310 | ||||
| leaf-spring Pcs | 10 | ||||
| Axle | 13/16/18 T | ||||
| Suspension | Heavy Duty Mechanic Suspension with Leaf Springs | ||||
| Main Beam Material | Q345B manganese plates, automatic submerged arc welded | ||||
| Brake System | Dual line braking system with automatic braking system/chambers | ||||
| Brake Air Chamber | Double Model | ||||
| Kingpin | 2' or 3.5' Interchangeable | ||||
| Landing gear | 28T loading capacity with 80T static lifting capacity. | ||||
| Platform | 4-6 mm diamond steel plate | ||||
| Brake System | Dual Lines Braking System With Automatic Air Chambers | ||||
| Brake Air Chamber | Four double and two single chamber | ||||
| Electrical System | 24V, 7core socket, lights according to European standards. | ||||
|
Mainbeam Size |
Upper plate | 14mm | |||
| Lower plate | 16mm | ||||
| Mid Web | 8 mm | ||||
| Height | 500-520mm | ||||
| Color and Logo | Depends on the buyer’s requirement. | ||||
| Pin Height | According to the height of the tractor saddle. | ||||
| Painting | Three coats painting; Any color will be available | ||||

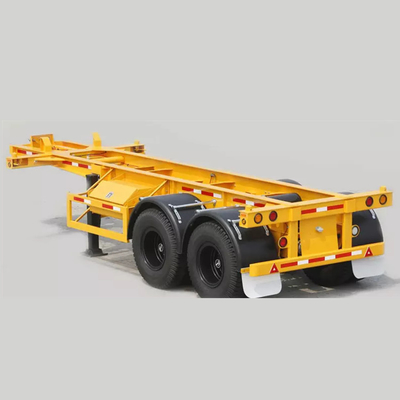

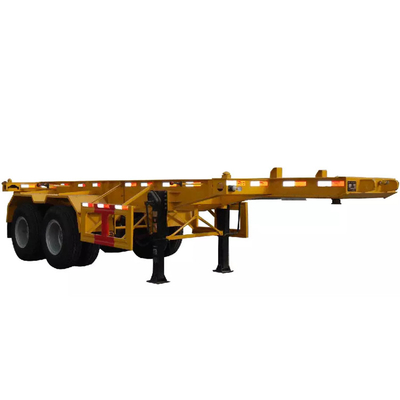

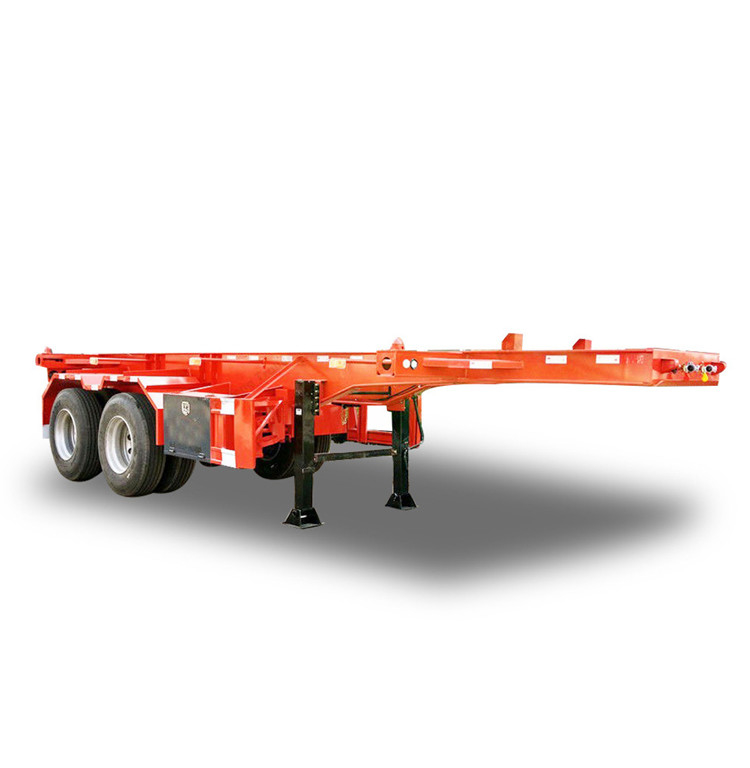

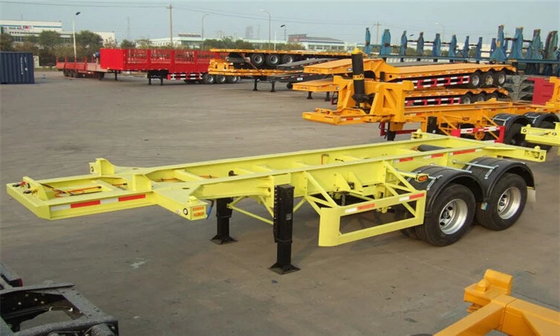

Product display:
Our Services
1. Fast delivery after receiving down payment due to factory strength;
2. Salesman will update you the production with video and photos step by step until production completed;
3. Engineers are available to oversea after-sale service;
4. We will give your 1 year after-sale service for free including free quick-wear parts;
5. Factory inspection is warmly welcomed, you will have free food and accommodation;
6. Inspection before delivery is provided also.
factory:
We have a skilled and experienced R&D team and concentrate on the requirements of our customers. As an experienced manufacturer,we offer a complete product range. For wire harness cutting, stripping, crimping and the various machine series as well as the customized solutions are characterized by innovative and well thought-out ideas, and are therefore optimally tuned to the needs of the customer.
Our products are exported to many countries in Africa, Southeast Asia and South America, such as Ghana Philippines Zimbabwe Boswana Nigeria Senegal.Customers are also very satisfied with our products and services.We have ability to solve the problems you may encounter.
FAQ:
Q. Why should we choose you?
A. Due to the Pricing Strategy,the same products, we can give you the lowest price.
Q. What kind of Payment can you accept?
A. T / T and L/C ,or D/P is all right to us.
Q. How long will it takes to ship?
A. Around 15-25 working days,it's up to the product and your needs. Q:Do you have MOQ?
A. Actually no,1 Unit is ok.
Q. How about the Color , Specific configuration things?
A. It's up to you , most of them are optional and can be changed by your needs.
