Product Details:
Payment & Shipping Terms:
|
| Application: | LNG/O2/N2/N2O/CO2/Ar Storage And Transport | External Dimensions(l X W X H)(mm): | 6058/12192 X 2438 X 2591/mm |
|---|---|---|---|
| Design Temperature: | -196°C To 55°C | Test Pressure: | 2.21Mpa |
| Capacity: | 21000L | Guidelines For Tank Container: | T75 UN Portable Tank |
| Gross Weight: | 34000 Kg | Material Of Shell: | SA-240M 304 (INNER VESSEL) |
| TARE（kg): | 7710 | MPGM（kg): | 36000 |
| High Light: | CSC Cryogenic Oxygen Tanks,Cryogenic Oxygen Tanks CNG,CNG T75 Tank Container |
||
ASME/ CSC/ISO / LR/T75 20FT LPG/CNG/Lo2/Ln2/CO2/Cooking Gas LNG storage tank container
Product Details:
ISO Tank Container Introduction:
A tank container is built to the ISO Standard, making it suitable for different modes
of transportation. Both hazardous and non-hazardous products can be transported in tank containers.
parameter:
| Design codes and regulations | ASME VⅢ DIV 1--2019Ed | ||
| T75 UN PORTABLE TANK,IMDG,TIR,UIC,CSC,TC | |||
| CFR49,RID/ADR,ISO 1496-3,FRA,CGA 341 | |||
| TARE(kg) | 7710 | ||
| MPGM(kg) | 36000 | ||
| Stacking Load(kg) | 192000 | ||
| Contents | UN1073 | LOX | |
| UN1977 | LIN | ||
| UN1951 | LAR | ||
| UN1972 | LNG | ||
| UN1038 | LC2H4 | ||
| UN1691 | LC2H6 | ||
| Type of insulation | High vacuum multi -layer | ||
| MAX .Filling rate | 0.95 | ||
| Design temperature MAX./MIN(℃) | -196/+50 | ||
| Material of shell | SA-240M 304 (INNER VESSEL) | ||
| Outer size (L×W×H) | 6058×2438×2591 | ||
| Full capacity(±1%) (m³) | 21 | ||
| Static evaporation rate(%/d) | LIN ≤0.34 | ||
| Seal-off vacuum degree(pa) | ≤0.08 | ||
| Liquid level gauge (MH2O) | 0~3(PN40) | ||
| M.A.W.P(MPa) | 1.60/－0.04 | ||
| Pressure gauge(mpa) | 0~4.0 grade 1.6 | ||

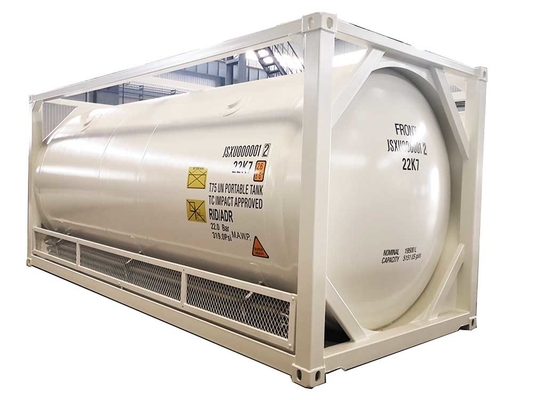

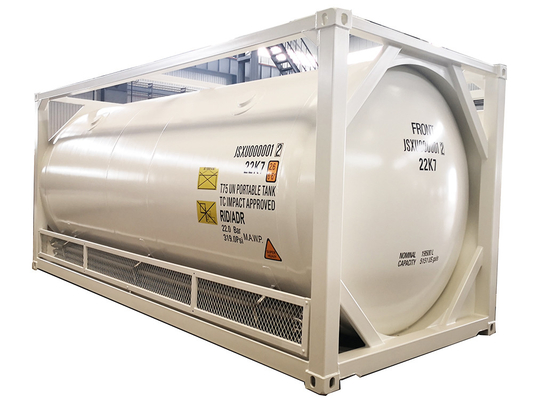

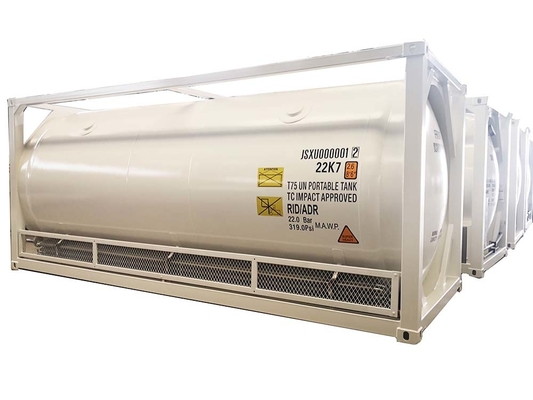

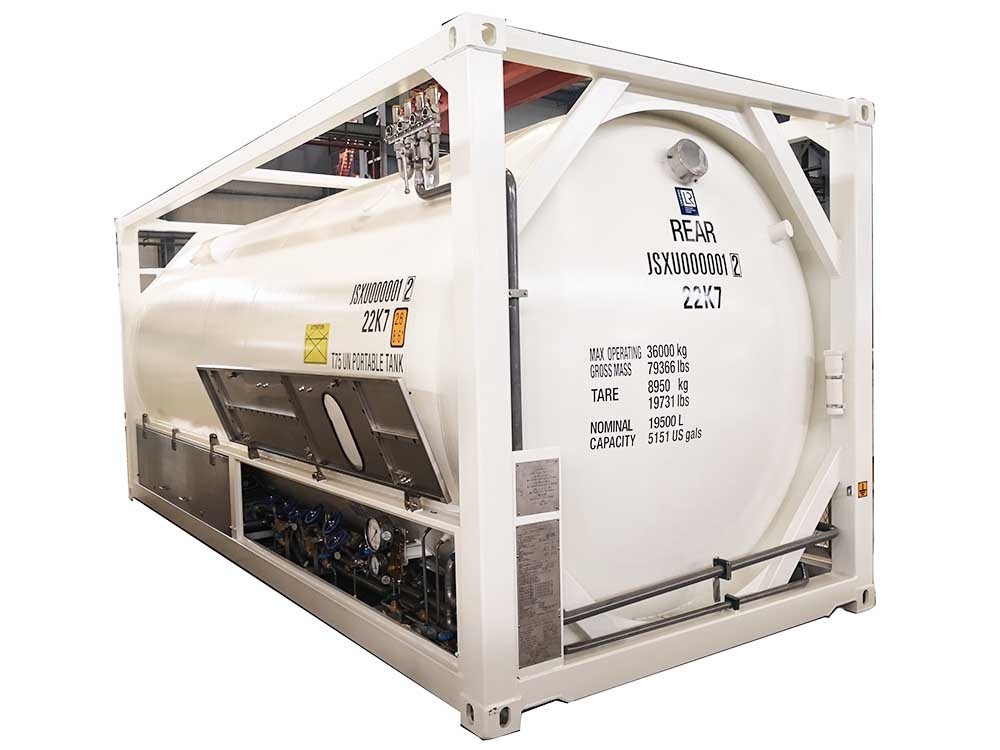

Image details:
Company Profile:
Henan Lishixin Logistics Equipment Co., Ltd is located in Zhengzhou FTA,Henan Province,
China, with a registered capital of 3, 500, 000USD.Lishixin is specialized in the R & D,
mass production and sales of kinds of the 20FT, 30FT, 40FT ISO Storage Tank
Containers and Storage Tanks as well as other special logistic Transportation
equipments.Based on rich transportation advantages and resource of Central
China, Lishixin is committed to supply high quality and cost-effective transportation
equipment for clients all over the world.
Main Products: ISO storage tank containers(Liquid tank containers,Powder Tank containers,
Cryogenic tank containers, CNG Tank Container, Cryogenic Liquid Gas Storage Tanks),
Cryogenic Tank Semi Trailer etc. Other logistic transportation equipments.
International Market: Annual production capacity 8000units of the Tank Containers,and the
annual total sales 3500units, Of which, we have exported more than 800units Tank containers,
Cryogenic Tank Semi Trailer to more 25 countries around the world, including Mexico,
Columbia, Chile, Peru, Honduras, South African, Nigeria, Egypt, Algeria, Saudi Arabia,
Turkey, Pakistan,Myanmar, Uzbekistan, Russia, Ukraine, Philippines,Indonesia,
Malaysia, Bangladesh, etc. What's more, we have established long-term semitrailer&tanks
supply contracts with more than 10 famous transportation&other type of the enterprises in the world.
Certification:
our factory:
FAQ:
Q: What kind of Payment can you accept?
A: T / T and L/C is all right to us.
Q: Does your iso tank container meet with international requirement?
A: All of our tank container will be approval by BV or LR or CCS and meet with International Standard.
Q: How long will it takes to ship?
A: Around 15-25 working days.
Q: How about the Color , Specific configuration things?
A: It's up to you , most of them are optional and can be changed by your needs.
