Product Details:
Payment & Shipping Terms:
|
| Frame Size: | 20 Ft | Max. Capacity (Nominal): | 24700 L |
|---|---|---|---|
| Max. Gross Mass: | 36000 KGS | Working Pressure: | 18 MPa |
| Transportation/Storage Material: | LNG | Design Temperatur: | -40 To +55 ºC |
| Design Code: | ASME VIII Div. 2 With ASME U2-Stamp | Stacking: | 192000 KGS |
| High Light: | T75 Cryogenic Tank Container,Cryogenic Tank Container 24700L,24700L ISO Tank For Liquid Oxygen |
||
| Frame Dimensions | External | 6058 x 2438 x 2591 | MM |
| (L x W x H) | 20 x 8 x 8.5 | FT | |
| Max. Capacity (Nominal) | 24,700 | L | |
| Max. Gross Mass | 36,000 | KGS | |
| Tare Mass (Nominal) | 6360 | KGS | |
| Stacking | 192,000 | KGS | |
| Pressure | Working pressure | 18 | Mpa |
| Test pressure | 23.45 | Bar | |
| Design Temperature | Frame | -40 to +55 ºC | |
| Tank | |||
| Material | Frame | SPA-H,Q345D or equivalent | |
| Tank | SA612N/WNr 1.4402/1.4404 | ||
| Manhole | DN500 inside diameter, with bolted cover, Spiral wound gasket(PTFE) | ||
| Safety Relief | One flange for safety relief valve on top of tank | ||
| Size DN80, equipped with fort vale relief, four vale bursting Disc, manometer, and custom seal. | |||
| Liquid Line | One flange 2''(DN50) for internal bottom valve and external manual operated Fort vale 2'' ball valve. | ||
| Gasket PTFE/304 | |||
| One purge cock on the ACME coupling | |||
| Gas Line | One flange 2''(DN50) for internal bottom valve and external manual operated Fort vale 2'' ball valve. | ||
| Internally a stand pipe to the gas phase | |||
| Gasket PTFE/304 | |||
| Thermometer | Thermometer range: -40 to +100 ºC and -40 to +202 ºF, dual scale | ||
| Manometer | External a DN15 ball valve and a 1/4''manometer 0-40 bar. | ||
| Sun Shield | Tank fitted with a sin shield of 2mm aluminum alloy,covered angle approx. 120° | ||
| Data Plates | One set of stainless steel data plates | ||
| Design Code | ASME VIII Div. 2 with ASME U2-Stamp | ||
| Approval | Lloyds or BV Construction Certificate, IMDG, CFR49, ADR/RID, AAR 600, CSC, TC, TIR, ISO UIC, US/UK DOT | ||

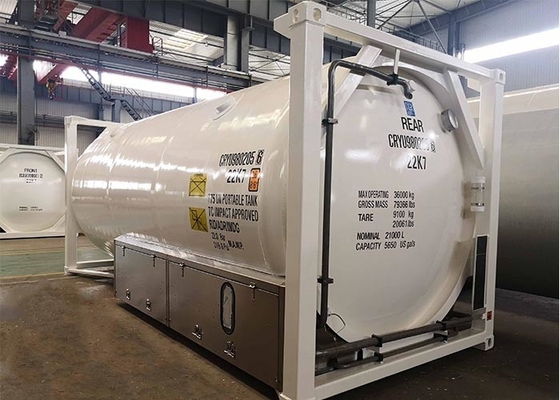

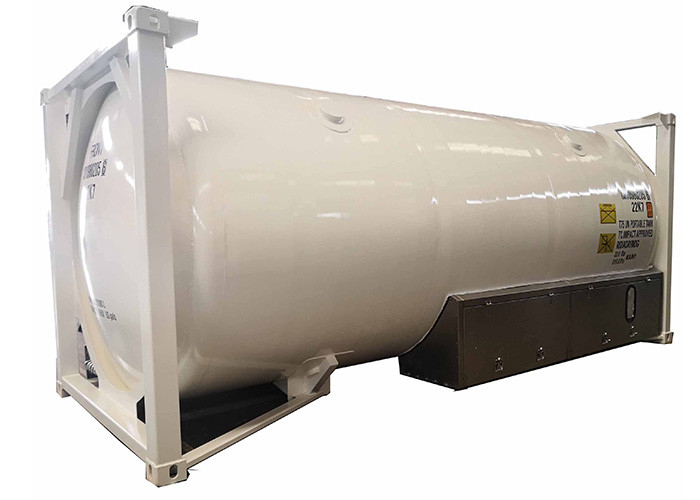

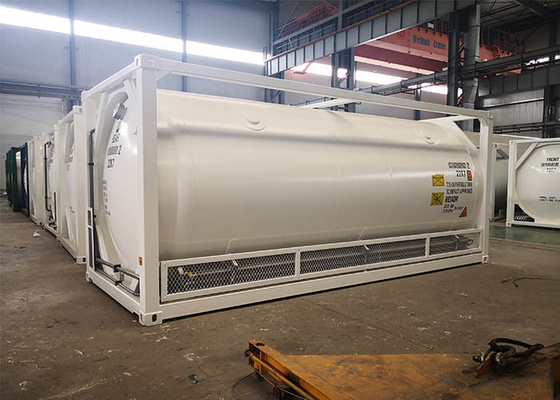

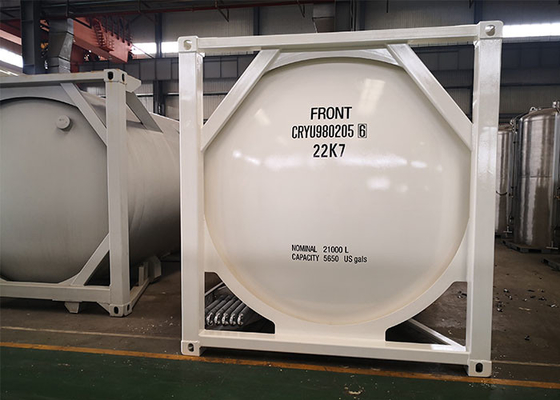

Cryogenic Tank Container Of Product details:
Cryogenic Tank Container Of Advantages:
1. Factory direct exporting, with high quality and lower price.
2. Pre-Sales Service:
24 hours online timely inquiry reply and consulting support.
Sample testing support. View our Factory.
3. After-Sales Service:
Most convenient transport and prompt delivery;
Training how to install the tank, training how to use the equipment;
Warranty for 12 months;
Life-long maintenance.
FAQ:
Q: What kind of Payment can you accept?
A: T / T and L/C is all right to us.
Q: Does your iso tank container meet with international requirement?
A: All of our tank container will be approval by BV or LR or CCS and meet with International Standard.
Q: How long will it takes to ship?
A: Around 15-25 working days.
Q: How about the Color , Specific configuration things?
A: It's up to you , most of them are optional and can be changed by your needs.
Q: How can i pay the money without risk?
A: You can pay the money to us via Alibaba Trade Assurance,then the alibaba can guarantee your money safe and the delivery on time.
Q: Can i do your agent in our country or some district?
A: Yes,if you quantity is enough,no problem,the 50units for the first time is okay.
