Product Details:
Payment & Shipping Terms:
|
| Application: | LNG/O2/N2/N2O/CO2/Ar Storage And Transport | Material: | Q345R/16MnDR/SA-516M/SA-612M |
|---|---|---|---|
| Design Temperature: | -196°C To 55°C | Test Pressure: | 2.21Mpa |
| Capacity: | 21000L | Guidelines For Tank Container: | T75 UN Portable Tank |
| Gross Weight: | 34000 Kg | Design Standard: | IMDG-CODE, GB150-98 |
| Size: | 20/40 Feet, Tank Type | Dimension: | 6058 X 2438 X 2591 Mm; 12192 X 2438 X 2591 Mm |
| Allowed Stacking Weight: | 192000kgs | ||
| High Light: | LCO2 Cryogenic Tank Container,Cryogenic Tank Container LC2H4,LC2H4 ISO Tank T75 |
||
Low Pressure LOX/LIN/LAR/LCO2 / LNG/LC2H4 T75 ISOTank Container
UN T75 Cryogenic 20ft 40ft ISO LNG Tank Container:
Natural gas has the characteristics of high heat value and low pollution, which has become the ideal clean energy. Liquefied natural gas to LNG transport, higher than compressed natural gas (CNG) bicycle transport capacity.
LNG tank containers (hereinafter referred to as "LNG tanks") can be transported by road, railway, water and other ways due to their mobility and flexibility, thus becoming the main means of transportation for LNG.
The main structural type LNG tank of LNG tank is composed of tank, operation box and frame.The tank and frame form the tank box through short half cylinder, strip support, and special steel pipe. The one end of the tank is equipped with the operating box, which controls the valve and the safety device, and USES the centralized layout to facilitate the loading and unloading of the medium.
parameter:
|
item
|
value
|
|
Type
|
Tank Container
|
|
Length (feet)
|
20'
|
|
Capacity
|
25000L
|
|
External Dimensions(l x W x H)(mm)
|
6058*2438*2591/mm
|
|
Internal Dimensions(l x W x H)(mm)
|
5898*2352*2393/mm
|
|
Place of Origin
|
Henan, China
|
|
Brand Name
|
LISHIXIN |
|
Maximum Allowed Loading Weight
|
17510kgs
|
|
Tare Weight
|
11700kgs
|
|
Allowed stacking weight
|
192000kgs
|
|
Max. Working Pressure(Mpa.)
|
0.75
|
|
Min. Working Tempretrues
|
-196°C
|
|
Design Pressure(Mpa.)
|
0.8
|
|
Design Tempretrues
|
196 °C
|
|
Inside tank material
|
SA-240M 304
|
|
Outside tank material
|
Q345R
|
|
Frame work
|
Q345-D--GB/T1591
|

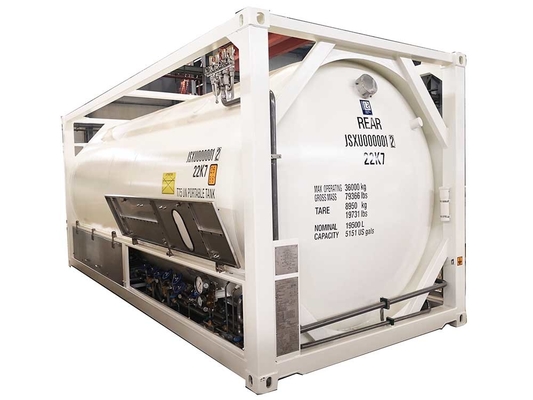

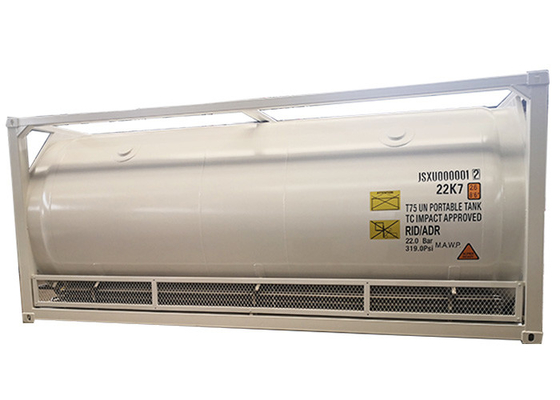

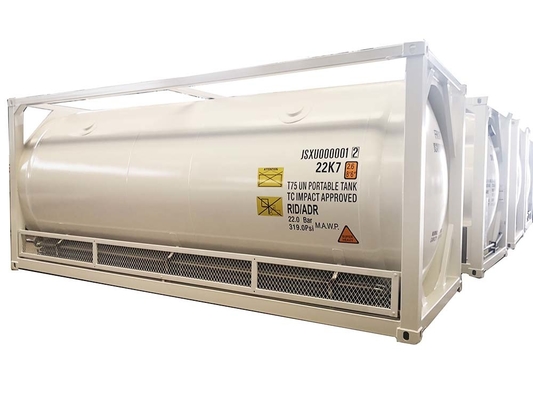

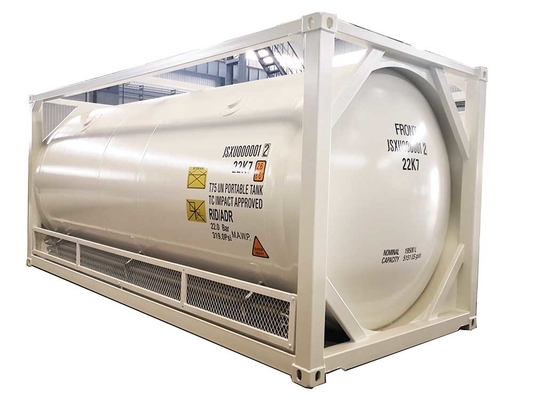

Image details:
Company Profile:
Henan Lishixin Logistics Equipment Co., Ltd is located in Zhengzhou FTA,Henan Province,
China, with a registered capital of 3, 500, 000USD.Lishixin is specialized in the R & D,
mass production and sales of kinds of the 20FT, 30FT, 40FT ISO Storage Tank
Containers and Storage Tanks as well as other special logistic Transportation
equipments.Based on rich transportation advantages and resource of Central
China, Lishixin is committed to supply high quality and cost-effective transportation
equipment for clients all over the world.
Main Products: ISO storage tank containers(Liquid tank containers,Powder Tank containers,
Cryogenic tank containers, CNG Tank Container, Cryogenic Liquid Gas Storage Tanks),
Cryogenic Tank Semi Trailer etc. Other logistic transportation equipments.
International Market: Annual production capacity 8000units of the Tank Containers,and the
annual total sales 3500units, Of which, we have exported more than 800units Tank containers,
Cryogenic Tank Semi Trailer to more 25 countries around the world, including Mexico,
Columbia, Chile, Peru, Honduras, South African, Nigeria, Egypt, Algeria, Saudi Arabia,
Turkey, Pakistan,Myanmar, Uzbekistan, Russia, Ukraine, Philippines,Indonesia,
Malaysia, Bangladesh, etc. What's more, we have established long-term semitrailer&tanks
supply contracts with more than 10 famous transportation&other type of the enterprises in the world.
our factory:
FAQ:
Q: Are your T75 ISO LNG tank container is brand new?
Yes, our all tank containers are brand new.
Q: Can you provide the drawing for confirmation?
Sure, we'll provide the drawing after order confirmed before production.
Q: Do you have Small or Large Volume ISO LNG Tank Container?
Sure, we could do Tank Container form 1000L to 60000L.
Q: Do you provide OEM Service?
Yes, we have a first-class team and could design as per your requirement.
Q: Does your T75 iso tank container meet with international requirement?
All of our iso tank container will be approval by BV //LR / CCS
