Product Details:
Payment & Shipping Terms:
|
| Application: | LNG/O2/N2/N2O/CO2/Ar Storage And Transport | Material: | Q345R/16MnDR/SA-516M/SA-612M |
|---|---|---|---|
| Design Temperature: | -196°C To 55°C | Test Pressure: | 2.21Mpa |
| Capacity: | 21000L | Guidelines For Tank Container: | T75 UN Portable Tank |
| Gross Weight: | 34000 Kg | Design Standard: | IMDG-CODE, GB150-98 |
| Size: | 20/40 Feet, Tank Type | Dimension: | 6058 X 2438 X 2591 Mm; 12192 X 2438 X 2591 Mm |
| High Light: | ASME Cryogenic Oxygen Containers,Cryogenic Oxygen Containers 20ft,20ft T75 Iso Tank |
||
T75 ASME standard LOX LIN LAR LNG LCO2 iso tank container 20ft
Product Details:
CRYOGENIC TANKS
Storage tank is for liquefied gas under pressure, at cryogenic temperatures,
for products, such as LNG, N2, O2, Ar, CO2.
They consist of two vessels, one inside the other, with robust thermal insulation
in the chamber between them. They are built in
both a vertical (with legs or skirting ) and horizontal version(with support cradles
and anchoring to the ground).
Design
According to ASME, GB150-98 standards.
Inner pressure vessel
A vessel usually made stainless steel or other materials that have favorable strength
characteristics when exposed to cryogenic temperatures.
Insulation
Heat insulation is provided by a filling in the chamber between the two vessels
using insulating material and a high vacuum. It includes absorbent material for
greater vacuum stability. The effective thermal insulation minimizes product
losses and enables lengthy storage times of low temperature liquefied gases.
Outer vessel
A vessel made of carbon steel or stainless steel. Under normal operating
conditions, this vessel retains the insulation around the inner pressure vessel,
and can also maintain a vacuum around the inner vessel. Typically,
the outer vessel is not exposed to cryogenic temperature.
parameter:
| Specification | |
| 1. Design standard | IMDG-CODE, GB150-98 |
| 2. Recognized register | CCS |
| 3. Tank shape | Column shape, horizontal |
| 4. Size | 20/40 feet, tank type |
| 5. Dimension | 6058 x 2438 x 2591 mm; 12192 x 2438 x 2591 mm |
| 6. Capacity | 19800/46500 liters |
| 7. Loading medium | LNG/O2/N2/N2O/CO2/Ar storage and transport |
| 8. Tare weight | 11050/14000 kg |
| 9. Payload | 22950/20000 kg |
| 10. Gross weight | 34000 kg |
| Standard Configuration | |
| 1. Design pressure | 2.21 Mpa |
| 2. Working pressure | 20 feet, 1.6 Mpa; 40 feet, 0.6 Mpa |
| 3. Test pressure | 20 feet, 1.6 Mpa; 40 feet, 1.0 Mpa, hydraulic pressure test |
| 4. Gastight test pressure | 1.44 Mpa |
| 5. Vacuum test pressure | 0.1 Mpa |
| 6. Design temperature | -196 to 55 celsius |
| 7. Working temperature | -162 to 50 celsius |
| 8. Corrosion degree | 0 |
| 9. Welding joint efficiency | 1.0 |
| 10. Radiographic inspection | 100% X-RAY |
| 11. Tank material | SA-240 304, SA-516 70, double layer, 20 feet, 16/6 mm; 40 feet, 7 mm |
| 12. End enclosure | 20 feet, 18/8 mm; 40 feet, 8 mm |
| 13. Compound manhole | DN500 |
| 14. Safety valve | DN25 |
| 15. Gas phase valve | 20 feet, DN40; 40 feet, DN50 |
| 16. Liquid valve | 20 feet, DN40; 40 feet, DN50 |
| 17. Pressure gage | Y100, 1 pc |
| 18. Thermometer | WSS412, 1 pc |
| 19. Static evaporation rate | 20 feet, less than 0.18%/d; 40 feet, less than 0.225%/d |
| 20. Adiabatic form | Vacuum multilayer winding adiabatic |

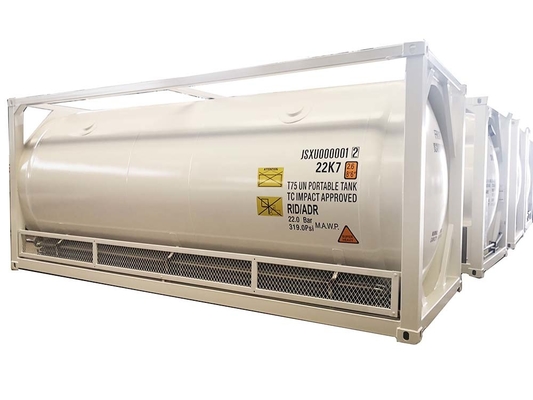

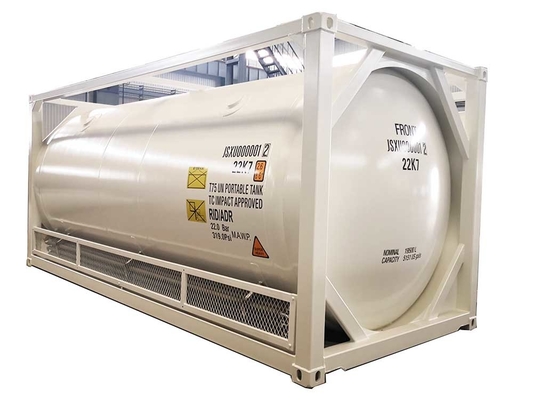

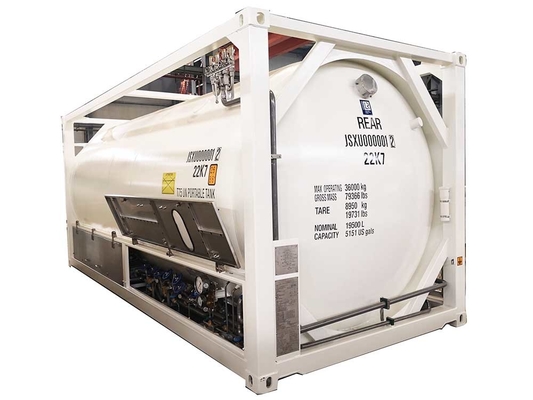

Image details:
Company Profile:
Henan Lishixin Logistics Equipment Co., Ltd is located in Zhengzhou FTA,Henan Province,
China, with a registered capital of 3, 500, 000USD.Lishixin is specialized in the R & D,
mass production and sales of kinds of the 20FT, 30FT, 40FT ISO Storage Tank
Containers and Storage Tanks as well as other special logistic Transportation
equipments.Based on rich transportation advantages and resource of Central
China, Lishixin is committed to supply high quality and cost-effective transportation
equipment for clients all over the world.
Main Products: ISO storage tank containers(Liquid tank containers,Powder Tank containers,
Cryogenic tank containers, CNG Tank Container, Cryogenic Liquid Gas Storage Tanks),
Cryogenic Tank Semi Trailer etc. Other logistic transportation equipments.
International Market: Annual production capacity 8000units of the Tank Containers,and the
annual total sales 3500units, Of which, we have exported more than 800units Tank containers,
Cryogenic Tank Semi Trailer to more 25 countries around the world, including Mexico,
Columbia, Chile, Peru, Honduras, South African, Nigeria, Egypt, Algeria, Saudi Arabia,
Turkey, Pakistan,Myanmar, Uzbekistan, Russia, Ukraine, Philippines,Indonesia,
Malaysia, Bangladesh, etc. What's more, we have established long-term semitrailer&tanks
supply contracts with more than 10 famous transportation&other type of the enterprises in the world.
Certification:
our factory:
FAQ:
Q: Are your T75 ISO LNG tank container is brand new?
Yes, our all tank containers are brand new.
Q: Can you provide the drawing for confirmation?
Sure, we'll provide the drawing after order confirmed before production.
Q: Do you have Small or Large Volume ISO LNG Tank Container?
Sure, we could do Tank Container form 1000L to 60000L.
Q: Do you provide OEM Service?
Yes, we have a first-class team and could design as per your requirement.
Q: Does your T75 iso tank container meet with international requirement?
All of our iso tank container will be approval by BV //LR / CCS
