20FT Skeleton Container Semi Trailer 60T Tank Container Chassis CE

Large Image : 20FT Skeleton Container Semi Trailer 60T Tank Container Chassis CE

Product Details:

Place of Origin:	China
Brand Name:	Sinotruk Howo
Certification:	CE
Model Number:	LSX

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	Negotiable
Packaging Details:	No packaging or according to customer requirements
Delivery Time:	15-20 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50 unit per month

Contact Now

Detailed Product Description

Size:	6850-1250025001550mm	Product Name:	3-axle Skeleton Semi-trailer
Max Payload:	>30000 Kg	Material:	Steel
Axle:	13T FUWA/BPW/YORK(Optional)	King Pin:	2"(50mm)or3.5"(90mm) JOST
Tire:	12R22.5	Color:	Customer's Request
Highlight:	20FT Skeleton Container Semi Trailer , Skeleton Container Semi Trailer 60T CE , 60T Tank Container Chassis

3Axle 40FT 60t Skeleton Container Semi Trailer High-Strength Steel Strong Structure Chassis

Product description:

Skeleton container trailers are used for transporting containers, and depending on their type, they are suitable for carrying 20FT containers and/or 40FT containers. The overall structure of the skeleton trailer is straight beam or gooseneck, it is mainly used in the logistics systems of ships, ports, routes, highways, transit stations, bridges, tunnels and multimodal transport.

If you have special needs for a skeleton semi-trailer with a gooseneck, we can design it for you according to your requirements.

Product parameters:

Dimension (Optional)	Axle No.	Rated Load (kg)	Tire No.		Tire Size
20ft	2	40000	8		825R20; 1000R20 1100R20; 1200R20 12R22.5
40ft 45ft 48ft 53ft	3	60000	12
40ft 45ft 48ft 53ft	4	75000	16
Wheel Base (mm)	1310
Leaf Spring	10 pieces
Axle	13 /16 /18 T, FUWA, BPW etc brand
Suspension	Heavy duty mechanical suspension
Main Beam Material	Q345B manganese plates, automatic submerged arc welded
Brake System	Dual line braking system with automatic braking system/chambers
King Pin	2' or 3.5'
Landing Gear	28T, JOST
Electrical System	24V, 7 core socket, lights according to European standards.
Main Beam	Upper plate			14mm
	Lower plate			16mm
	Middel plate			8 mm
	Height			500-520mm
Tool Box	1 box of standard tools
Spare Tire Carrier	2 sets
Color and Logo	As requested
Painting	2 coats of Epoxy high rust resistant primer undercoat, 2 coats of acrylic paint
Other Specifications	The frame can be flat plate style and skeleton style.Twist lock settings installed 12 pics, 8 pics, and 4pcs to satisfy the containers with different sizes for convince.
Application	For transportation of 2 x 20ft or 1 x 40ft containers

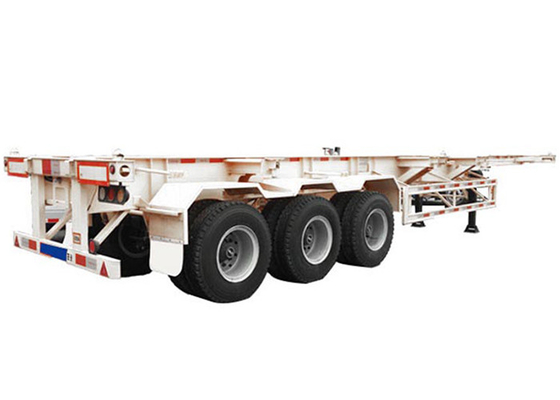

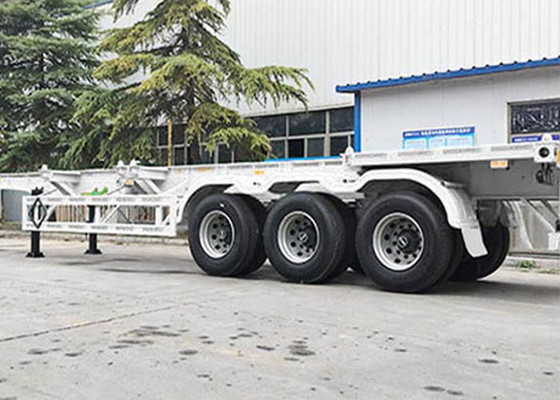

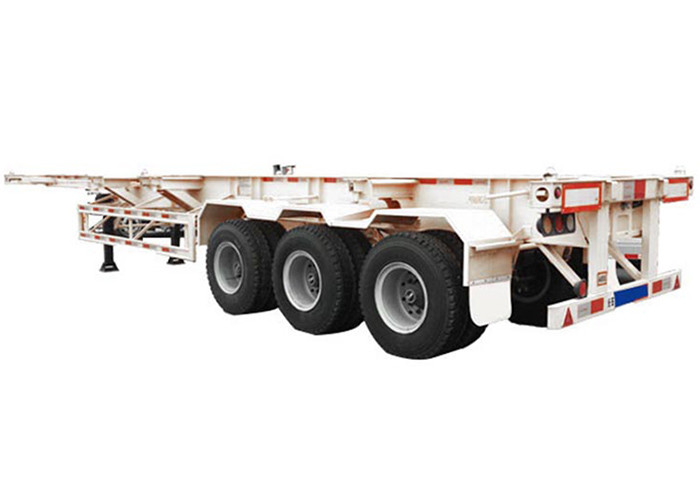

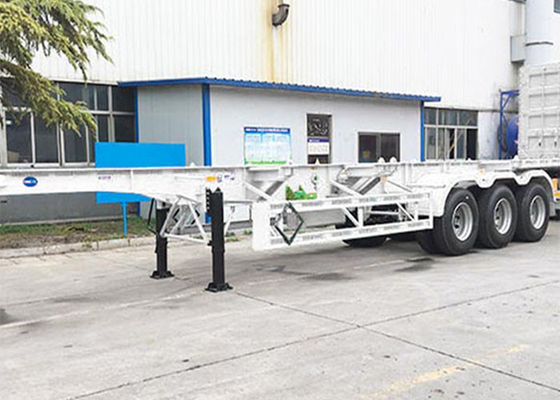

Product pictures:

Transport Pictures:

20FT Skeleton Container Semi Trailer 60T Tank Container Chassis CE 1

To save freight cost for you, we usually shipped the skeleton semi trailers in bulk cargo ship, flat deck or RO-RO. We can also transport by containers if you need.

(1) Wax:

Do wax spray process to against the trailer body suffer seawater corrosion during shipping.

(2) Package:

Stable fixing with steel wire,to protect the trailer during shipping.

(3) Shipping:

Reliable logistic service from famous freight supplier makes transport process safely and promptly.

Certification:

Our plants are all the best in China and use high-end facilities. Standardized Assembly Line Production Technology provides stable and reliable product quality.

Our Advantage:

1. Extensive usage Fast and efficient. Mainly used for the middle&long-distance transport of the medium&heavy-duty and bulk goods, widely used for variety of the cargoes.

2. The whole vehicle adopts the advanced computer-aided design software to optimize the design,make the Frame reasonable offload&scientific design by FEA( Finite Element Analysis) according to requirement of the vehicle carrying quality.

3. Axles, tires and other supporting parts are all well-known products purchased from domestic and foreign manufacturers.

4. The product quality and reliable, widely used, has become the vehicle of choice for long-distance freight vehicles. The quality of this product is reliable,extensive usage, has become the preferred models of middle&long-distance freight vehicles.

FAQ:

Q: Does your company have your own factory?

A: Yes, we have a factory in China, we have been focusing on manufacturing semi trailers over decades. Has our own R&D team, with years experiences, we've became the leading manufacturer of semi-trailers in China.

Q: How can we guarantee quality?

A: Always insists that "Quality always comes first". We have advanced production technology and management team! And ZCST TRAILER always attach great importance to quality controlling from the very beginning, every unit of trailer undergoes a strict inspection process.

Q: Could you special design and produce for me?

A: Definitely! With professional engineers, We could design and produce special trailers according to your requirements & the road conditions.

Q: What logistics ways we can work for shipment?

A: To save freight cost for you, we usually shipped the skeleton semi trailers in bulk cargo ship, flat deck or RO-RO. We can also transport by containers if you need.
