2 Axle Skeleton Container Semi Trailer 6.2T 20 Foot Container Chassis

Large Image : 2 Axle Skeleton Container Semi Trailer 6.2T 20 Foot Container Chassis

Product Details:

Place of Origin:	China
Brand Name:	Sinotruk Howo
Certification:	CE
Model Number:	LSX

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	Negotiable
Packaging Details:	No packaging or according to customer requirements
Delivery Time:	15-20 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50 unit per month

Contact Now

Detailed Product Description

Size:	6850-1250025001550mm	King Pin:	2"(50mm)or3.5"(90mm) JOST
Max Payload:	>30000 Kg	Function:	Transport 20ft 40ft Container
Axle:	13T FUWA/BPW/YORK(Optional)	Tire:	12R22.5
Suspension:	Mechanical Suspension	Color:	Customer's Request
High Light:	2 Axle Skeleton Container Semi Trailer , Skeleton Container Semi Trailer 6.2T , 6.2T 20 foot container chassis

2Axle 20FT 50t Skeleton Container Semi Trailer High-Strength Steel Strong Structure Chassis

Product description:

The size of the loading part of the Skeleton Container Semi Trailer is determined according to the size of the standard container, and a twist lock device for fixing the container is provided at the position corresponding to the four corners of the bottom of the container.

Type: 2 axle flatbed trailer, 3 axle Skeleton Container Semi Trailer, air suspension Skeleton Container Semi Trailer, single tire Skeleton Container Semi Trailer.

Product parameters:

Dimension	12400mm2500mm1575mm(Size can be choose freely)
Tare Weight	About 6.2T
Loading Capacity	30-60T
Axle	13T/16T,FUWA/BPM Brand
Rim	9.00-22.5/8.00-20/8.5-20
Tire	12.00R22.5/315 80R22.5/11.00R20/12.00R20 Brand can be Optional
Suspension	Mechanical suspension(Germany Type or America Type)or Air suspension
Spring leaf	90(W)mm13(Thickness)mm10 Layer(especial for exporting market)
King pin	JOST brand 2.0 or 3.5 inch
Support leg	JOST brand
Main beam	Height:500mm,upper plate is 14mm,middle plate is 8mm, Down plate is 16mm;Material is Q345B Steel.
Side beam	16mm channel steel(Material is Q235steel).
Bottom platform	3mm diamond steel plate
Brake chamber	WABCO RE 6 relay valve;T30/30+T30 Spring brake chamber;Two pieces of 45L air tanks
ABS	Optional
Twist Locks	Four,Eight or Twelve pieces(Lifting type or Twist screw type)
Valve	WABCO valve(especial for exporting market)
Light	LED light(especial for exporting market)
Voltage	24V
Receptacle	7 ways(7 wire harness)
Tool box	One piece,1m×0.5m×0.5m(Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime,2 coats of final paint
Shipping Terms:	By bulk cargo carrier,RORO or 40HQ container

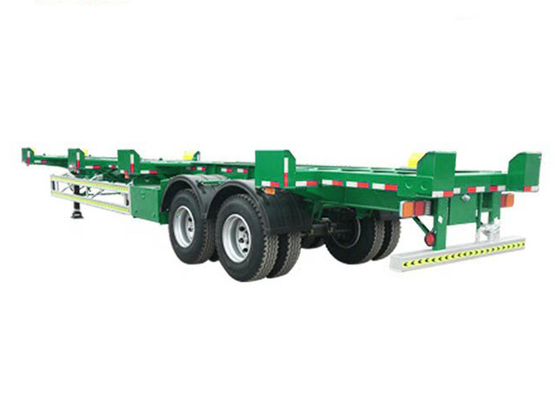

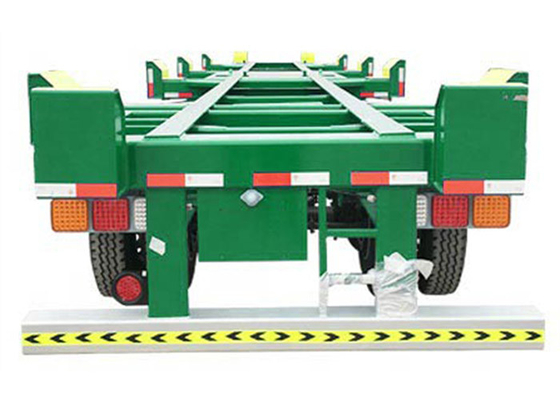

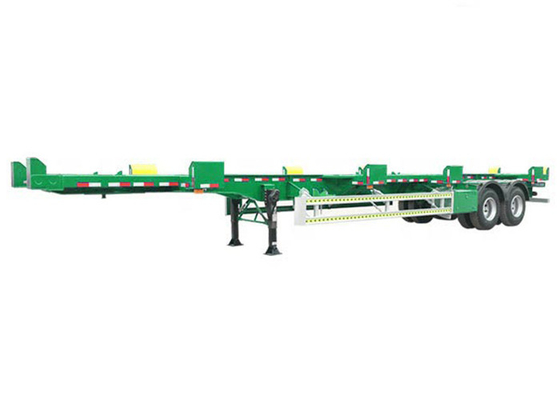

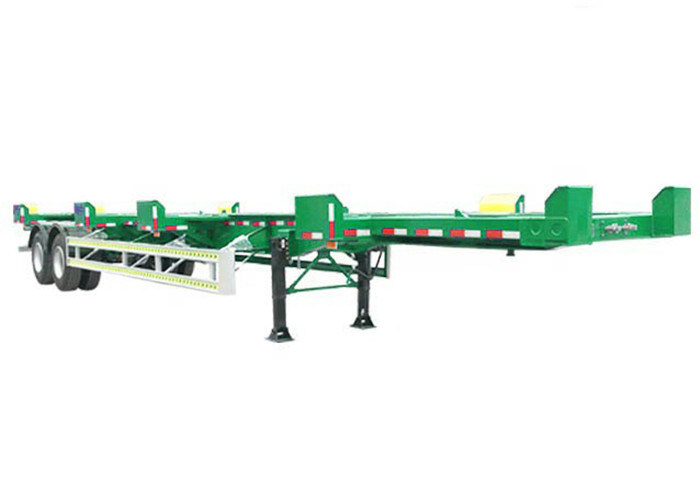

Product pictures:

Transport Pictures:

2 Axle Skeleton Container Semi Trailer 6.2T 20 Foot Container Chassis 1

To save freight cost for you, we usually shipped the skeleton semi trailers in bulk cargo ship, flat deck or RO-RO. We can also transport by containers if you need.

(1) Wax:

Do wax spray process to against the trailer body suffer seawater corrosion during shipping.

(2) Package:

Stable fixing with steel wire,to protect the trailer during shipping.

(3) Shipping:

Reliable logistic service from famous freight supplier makes transport process safely and promptly.

Certification:

Our plants are all the best in China and use high-end facilities. Standardized Assembly Line Production Technology provides stable and reliable product quality.

Our Advantage:

QUALITY ASSURANCE

Quality always comes first. ZCST TRAILER has advanced production technology and management team! We always attach great importance to quality controlling from the very beginning, and every unit of product undergoes a strict inspection process..

R&D TEAM

We have our own professional design team, technical personnel have many years of experience.

RICH EXPERIENCE

We have rich experience in overseas production and export business, to provide better service, we have established many overseas offices in many countries.

PRICE ADVANTAGE

Good quality, resonable price, on time shipping and best service for each customers. Our mini-mize all loses that may arise from the trailers.

FAQ:

Q: Does your company have your own factory?

A: Yes, we have a factory in China, we have been focusing on manufacturing semi trailers over decades. Has our own R&D team, with years experiences, we've became the leading manufacturer of semi-trailers in China.

Q: How can we guarantee quality?

A: Always insists that "Quality always comes first". We have advanced production technology and management team! And ZCST TRAILER always attach great importance to quality controlling from the very beginning, every unit of trailer undergoes a strict inspection process.

Q: Could you special design and produce for me?

A: Definitely! With professional engineers, We could design and produce special trailers according to your requirements & the road conditions.

Q: What logistics ways we can work for shipment?

A: To save freight cost for you, we usually shipped the skeleton semi trailers in bulk cargo ship, flat deck or RO-RO. We can also transport by containers if you need.
