Steering: | Right Hand/ Left Hand | Emission Standard: | Euro 2/3/4/5 |
---|---|---|---|
Fuel Type: | Diesel | Capacity (Load): | 41 - 50t |
Engine Capacity: | > 8L | Drive Wheel: | 8X4 |
Tire Number: | 12+1 | Gross Vehicle Weight: | 75500 |
Rear Axle: | Dana 13T | Front Axle: | 7T Dongfeng Dana Front Axle |
High Light: | 371HP Dongfeng Tipper Truck,Dongfeng Tipper Truck 8x4,8x4 Heavy Duty Dumper Truck |
Dongfeng New Tipper Dump Truck 8x4 12 Wheels 50ton 371HP 375HP Heavy Dumper Truck
Tipper Dump Truck Of Product introduction:
Tipper Dump Truck Of Product Parameters:
Type | 8x4 dump truck | |
Engine | wp10.375-40 | |
Emisstion standard | Euro 2/3/4/5 | |
Rated power | 375P | |
Color | Yellow, red, silver, white | |
Tipping Shaft | Thicker and new design correct angle than old one | |
Gearbox | eaton 9 gearbox | |
Front Axle | Dongfeng Dana 7T front axle x2 | |
Rear Axle | Dana 13T cast steel hub reduction rear axle x2,default ratio:5.92 | |
Front Spring | 9/18mm | |
Rear Spring | 12/25mm | |
Chassis | 300(10+8) (High-strength plate) | |
Tyre | 12R22.5 Driving type tubeless tires | |
Fuel Box | 280L (Black steel tank) | |
Air filter | Air filter for deserts | |
Air Condition | with air condition | |
Hydraulic cylinder | Front-mounted, 195mm diameter | |
Cargo Box | Dump cargo box length of 6.8m (Or 7.2) , width of 2.3 m , height of 1.5m |

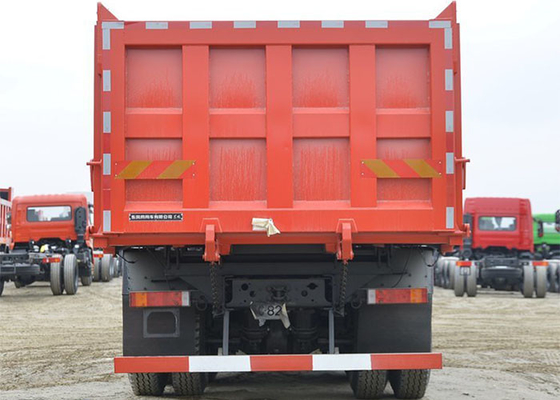

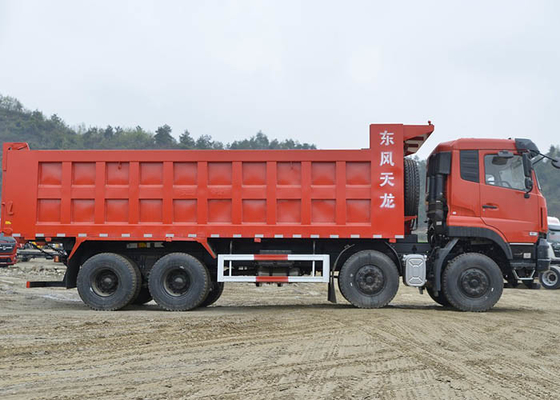

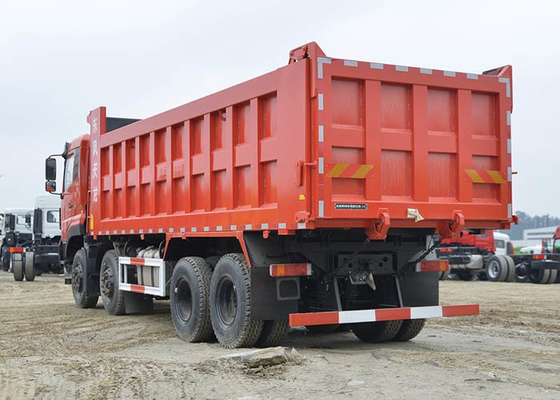

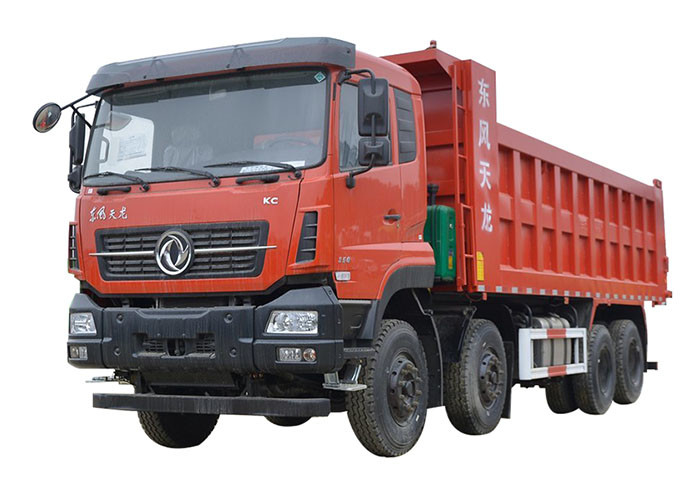

Tipper Dump Truck Of Product Details Pictures:
