Product Details:
Payment & Shipping Terms:
|
| Axle: | 2 Axle Of Fuwa/BPW/other Axle | Weight: | 5000kg |
|---|---|---|---|
| Material: | Steel | King Pin:: | 2"(50mm)or3.5"(90mm) |
| Tire: | 11.00R20/12.00R20/12.00R25 | Capacity: | 30T~ 60T |
| Support Leg: | 25Ton FUWA (Double Speed) | Function: | Transport 20ft 40ft Container |
| External Dimensions(l X W X H)(mm): | 12500*2500*1600mm | ||
| Highlight: | 12m Skeleton Truck Trailer,Skeleton Truck Trailer 5000kg,5000kg Tri Axle Container Chassis |
||

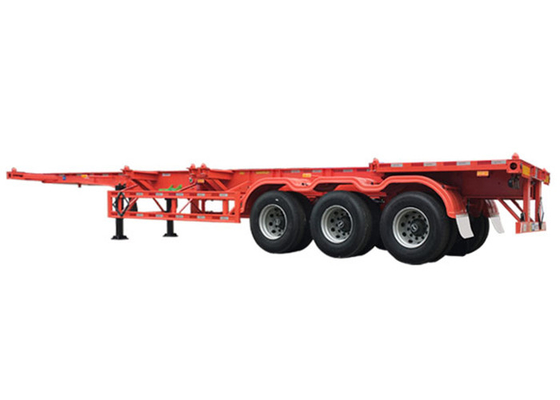

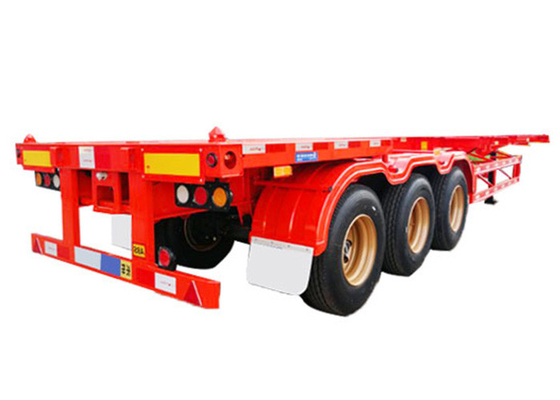

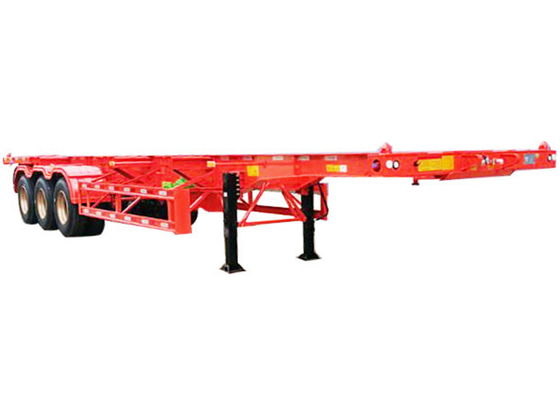

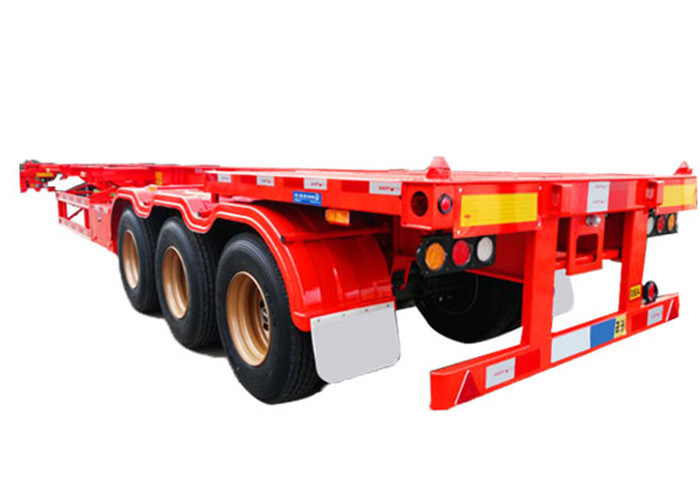

China Factory Supply 20FT 40FT Tank Container Skeleton Semi Trailer Wholesale
Skeleton Semi Trailer:
Container semi -trailer laden parts of the container structure. Mainly used in ships, ports, route, highway, transit stations, bridges, tunnels, supporting intermodal logistics system. They are designed to transport a variety of containers. Long-term repeated use , has sufficient strength.
parameter:
|
Product Name
|
Semi Trailer
|
|
Tare Weight
|
4000-6500kg
|
|
Loading Weight
|
30-60T
|
|
Dimension
|
12500*2500*1600mm
|
|
Main Beam
|
Q345B/ST52-3
Height: 500mm upper plate: 14mm middle plate: 8mm Down plate: 16mm |
|
Side Beam
|
Q235 16# channel steel
|
|
Cross Member
|
Q235 10# channel steel
|
|
Platform
|
3mm diamond platform
|
|
Landing Gear
|
Standard 28ton
|
|
Outrigger
|
FUWA / JOST brand
|
|
Rim
|
8.5-20(optional)
|
|
Tire
|
12R22.5
|
|
Suspension System
|
Mechanical suspension / Air suspension
|
|
Axle
|
13T Axle FUWA / BPW Brand
|
|
Brake System
|
Dual Line braking system
|
|
Brake Air Chamber
|
Six double chamber
|
|
Color and Logo
|
Optional and customized
|
|
Tool Box
|
1 Standard
|
product detail presentation:
Our Services:
1. Fast delivery after receiving down payment due to factory strength;
2. Salesman will update you the production with video and photos step by step until production completed;
3. Engineers are available to oversea after-sale service;
4. We will give your 1 year after-sale service for free including free quick-wear parts;
5. Factory inspection is warmly welcomed, you will have free food and accommodation;
6. Inspection before delivery is provided also.
