Product Details:
Payment & Shipping Terms:
|
| Axle: | 2 Axle Of Fuwa/BPW/other Axle | King Pin:: | 2"(50mm)or3.5"(90mm) |
|---|---|---|---|
| Tire: | 11.00R20/12.00R20/12.00R25 | Capacity: | 30T~ 60T |
| Support Leg: | 25Ton FUWA (Double Speed) | Function: | Transport 20ft 40ft Container |
| External Dimensions(l X W X H)(mm): | 12500*2500*1600mm | Twist Lock: | 4/8/12 Twist Locks |
| Product Name: | Low Price 20ft 40ft Container Frame Skeleton Semi Truck T | ||
| High Light: | 3 Axle Skeleton Container Semi Trailer,Skeleton Container Semi Trailer 40ft,40ft Tri Axle Container Chassis |
||

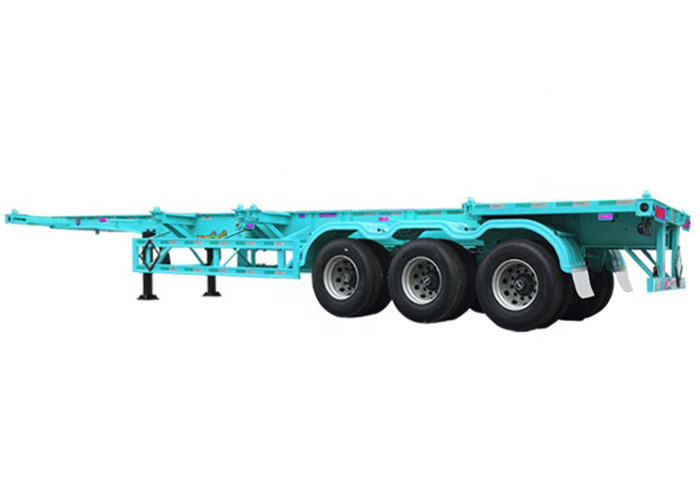

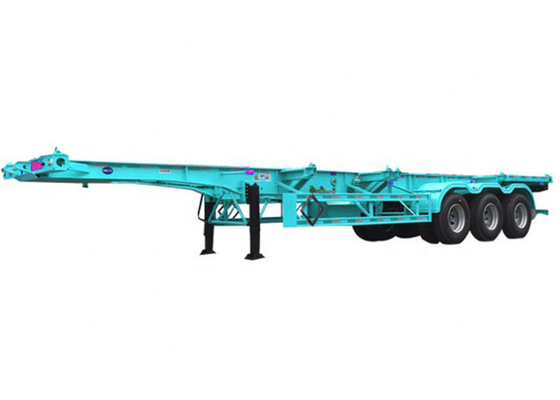

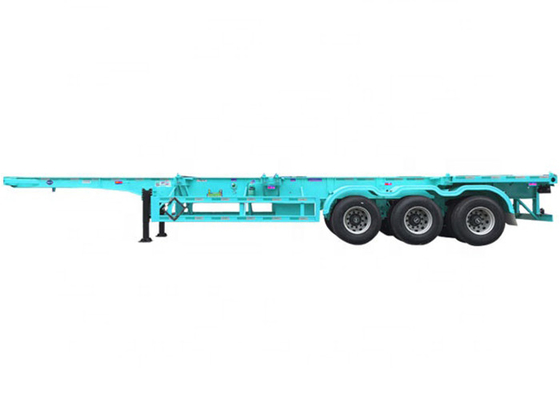

3 Axle 20ft 40ft Container Frame Skeleton Semi Truck Trailer Semi Trailer
Skeleton Semi Trailer:
Semi-trailer is a heavy-duty transport vehicle that is connected to a semi-trailer by means of a tractor pin.
Semi-trailer can improve the overall economic benefits of road transport.
1. Skeleton semi trailer suitable for container transportation;
2. Semi trailer use high-strength international steel, light weight, guarantees deformation resistance (no permanent deformation), and shock resistance;
3. Semi trailer frame adopts automatic submerged arc welding, beautiful weld seam and reliable performance;
4. Semi trailer has a simple structure, convenient disassembly and maintenance, and reduced maintenance costs;
5. Customized design to meet different customer needs.
parameter:
| Product Name | Semi Trailer |
| Tare Weight | 4000-6500kg |
| Loading Weight | 35-65T |
| Dimension | 12500*2500*1550mm |
| Main Beam |
Q345B/ST52-3 Height: 500mm upper plate: 14mm middle plate: 8mm Down plate: 16mm |
| Side Beam | Q235 16# channel steel |
| Cross Member | Q235 10# channel steel |
| Platform | 3mm diamond platform |
| King Pin | 2 / 3.5 inch bolts type |
| Twist Lock | 12 pieces |
| Landing Gear | Standard 28ton |
| Outrigger | FUWA / JOST brand |
| Rim | 8.5-20(optional) |
| Tire | 12R22.5 |
| Spare Tire Carriers | 2pcs |
| Suspension System | Mechanical suspension / Air suspension |
| Axle | 13T Axle FUWA / BPW Brand |
| Leaf-spring | 90(W)mm*13(Thick)mm*10 Layer |
| Brake System | Dual Line braking system |
| Brake Air Chamber | Six double chamber |
| Electrical System | 24V, 7core socket |
| Color and Logo | Optional and customized |
| Tool Box | 1 Standard |
product detail presentation:
1. We are a professional semi trailer supplier with advanced equipment and high efficiency. The delivery date can meet the requirements of customers.
2. Our semi trailer production technology has a number of patents, and our production technology ranks among the best in China. We pay attention to every detail of semi trailer, we pursue to make the customer have a good experience.
FAQ:
Q1. What's your MOQ?
One unit trailer or truck.
Q2. Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
Q3. How about your product quality?
High quality has always been our advantage.We all use high quality brand materials with 100% quality assurance.
Q4. How can I get the price of your vehicle?
You can contact with us through any of the following contact information. Our personalized service person will respond you within 24 hours.
Q5. Is it available to print our own brand on the vehicle?
Totally acceptable as you wish.
