Product Details:
Payment & Shipping Terms:
|
| Axle: | 2 Axle Of Fuwa/BPW/other Axle | King Pin:: | 2"(50mm)or3.5"(90mm) |
|---|---|---|---|
| Tire: | 11.00R20/12.00R20/12.00R25 | Capacity: | 30T~ 60T |
| Support Leg: | 25Ton FUWA (Double Speed) | Function: | Transport 20ft 40ft Container |
| External Dimensions(l X W X H)(mm): | 12500*2500*1600mm | Twist Lock: | 4/8/12 Twist Locks |
| Product Name: | Low Price 20ft 40ft Container Frame Skeleton Semi Truck T | ||
| High Light: | 5000KG Steel Semi Trailer Chassis,Semi Trailer Chassis 12m,5000KG 12m Skeletal Trailer |
||

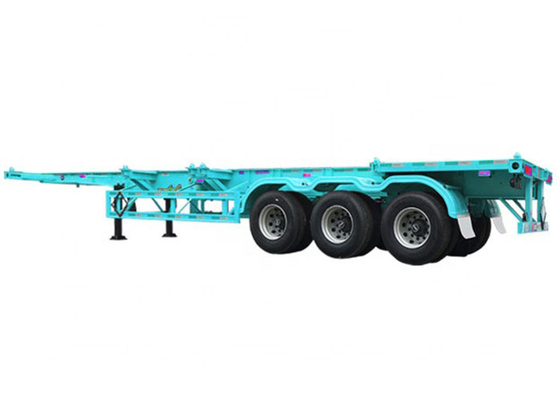

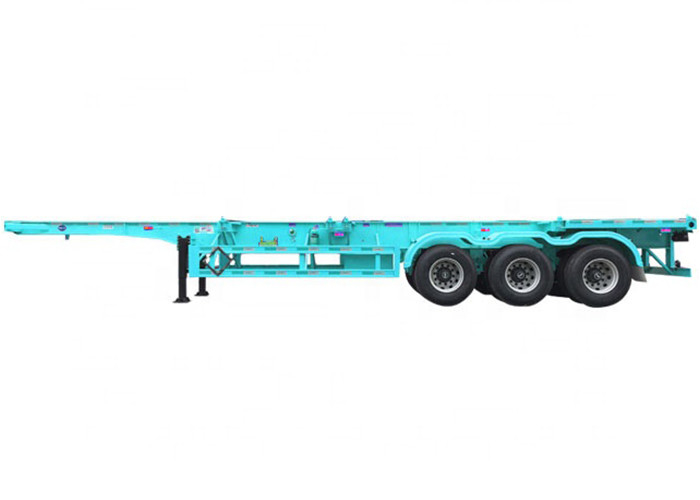

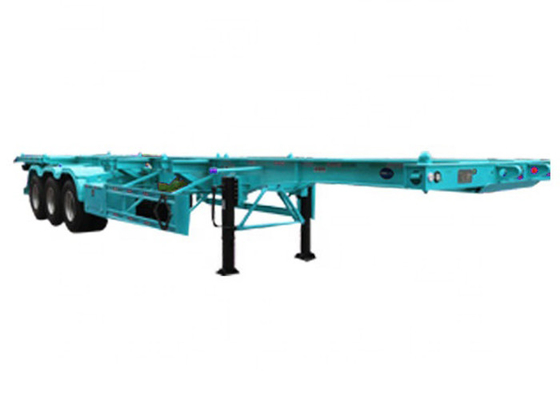

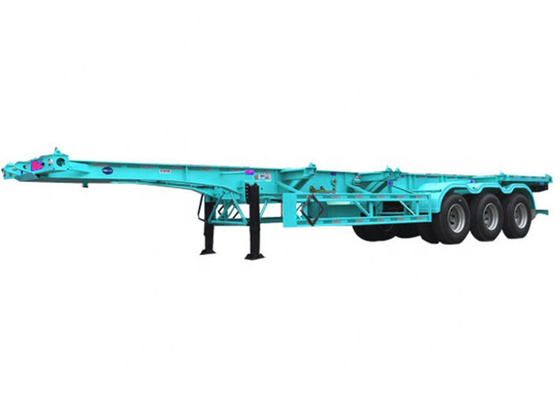

High Quality 40ft Trailer Frame Manufacturer Q345 Steel And Skeleton Semi Trailer Truck Trailer
Skeleton Semi Trailer:
LISHIXIN Container Trailer is a kind of container transport semi trailer frame and another is flat type. The skeleton type driving is made by welding the longitudinal beam, the transverse beam and the front and rear beams. The longitudinal beams are welded into high-quality steel plate 16Mn submerged arc to form an I-shape (the main size is 450, 500). The beam has a welded rectangular cross-section. An integral long beam is provided at the position of the intermediate container locking device to improve the carrying capacity of the container locking device. The difference between the flat type and the skeleton type is that the flat type adds a frame and a pattern floor. The frame of the wood series container transport semi trailer is all shot blasted. The entire frame is assembled and welded on a special positioning platform. It has a reasonable structure, high strength and beautiful appearance. A container tightening device is installed on the frame, which can load two standard containers of 40 feet and 20 feet. The four container tightening devices at the front and rear ends are of a fixed structure, and the middle container tightening devices are of a concealable structure. When loading containers, the intermediate container locking device can be lowered below the cargo platform level as needed. Choose mechanical bearing device, mainly 12T, 20T; Fuhua 13T; JOST; and other types. Its function is to support the ground when the traction device is disengaged from the trailer and bear the front load of the semi trailer. There are two types of support devices: single-acting type and linkage type, which are mainly composed of supporting disc, screw drive mechanism, reduction box and joystick. Suspension devices include single-axis suspension and dual-axis suspension. Three-axis suspension. Semi trailers are equipped with two spare tire frames, which are installed on the left and right sides of the trailer frame, and are equipped with spare tire lifters.
parameter:
| Product Name | Semi Trailer |
| Tare Weight | 4000-6500kg |
| Loading Weight | 35-65T |
| Dimension | 12500*2500*1550mm |
| Main Beam |
Q345B/ST52-3 Height: 500mm upper plate: 14mm middle plate: 8mm Down plate: 16mm |
| Side Beam | Q235 16# channel steel |
| Cross Member | Q235 10# channel steel |
| Platform | 3mm diamond platform |
| King Pin | 2 / 3.5 inch bolts type |
| Twist Lock | 12 pieces |
| Landing Gear | Standard 28ton |
| Outrigger | FUWA / JOST brand |
| Rim | 8.5-20(optional) |
| Tire | 12R22.5 |
| Spare Tire Carriers | 2pcs |
| Suspension System | Mechanical suspension / Air suspension |
| Axle | 13T Axle FUWA / BPW Brand |
| Leaf-spring | 90(W)mm*13(Thick)mm*10 Layer |
| Brake System | Dual Line braking system |
| Brake Air Chamber | Six double chamber |
| Electrical System | 24V, 7core socket |
| Color and Logo | Optional and customized |
| Tool Box | 1 Standard |
product presentation:
1. We are a professional semi trailer supplier with advanced equipment and high efficiency. The delivery date can meet the requirements of customers.
2. Our semi trailer production technology has a number of patents, and our production technology ranks among the best in China. We pay attention to every detail of semi trailer, we pursue to make the customer have a good experience.
FAQ:
Q1. What's your MOQ?
One unit trailer or truck.
Q2. Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
Q3. How about your product quality?
High quality has always been our advantage.We all use high quality brand materials with 100% quality assurance.
Q4. How can I get the price of your vehicle?
You can contact with us through any of the following contact information. Our personalized service person will respond you within 24 hours.
Q5. Is it available to print our own brand on the vehicle?
Totally acceptable as you wish.
