Product Details:
Payment & Shipping Terms:
|
| Axle: | 2 Axle Of Fuwa/BPW/other Axle | King Pin:: | 2"(50mm)or3.5"(90mm) |
|---|---|---|---|
| Tire: | 11.00r20;11.00-20;10.00-20/12PCS | Capacity: | 30T~ 60T |
| Support Leg: | 25Ton FUWA (Double Speed) | Function: | Transport 20ft 40ft Container |
| External Dimensions(l X W X H)(mm): | 12500*2500*1600mm | Size: | 9500-16500*2500-3000*3200 (can Be Customized) |
| Braking System: | 2 Line Air Braking System With Air Tank | Material: | Q345B Steel |
| High Light: | 1600mm Skeleton Container Semi Trailer,Skeleton Container Semi Trailer Fuwa,Fuwa 20 Ft Container Chassis Trailer |
||

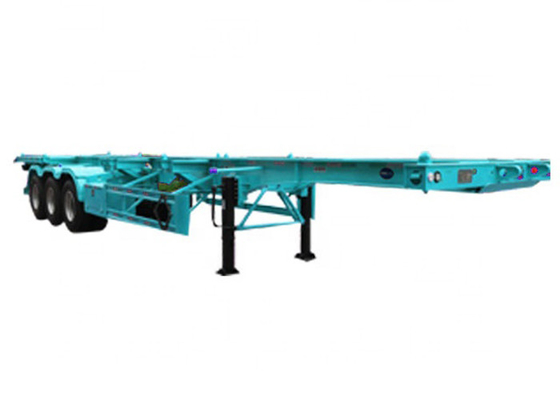

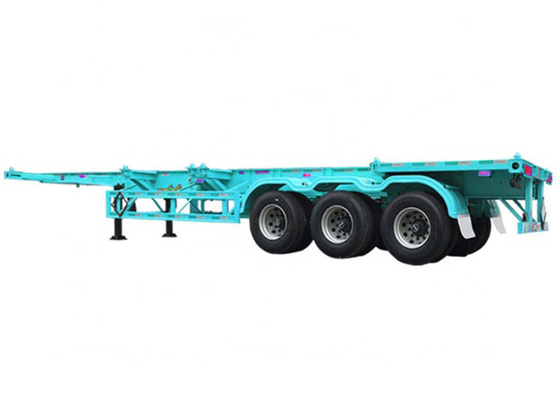

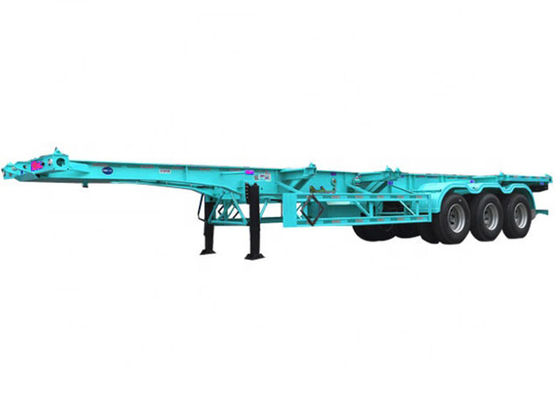

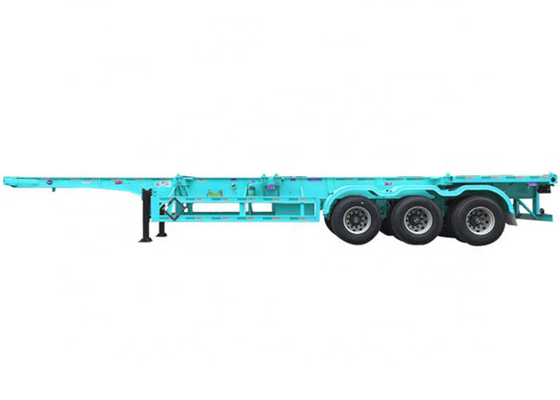

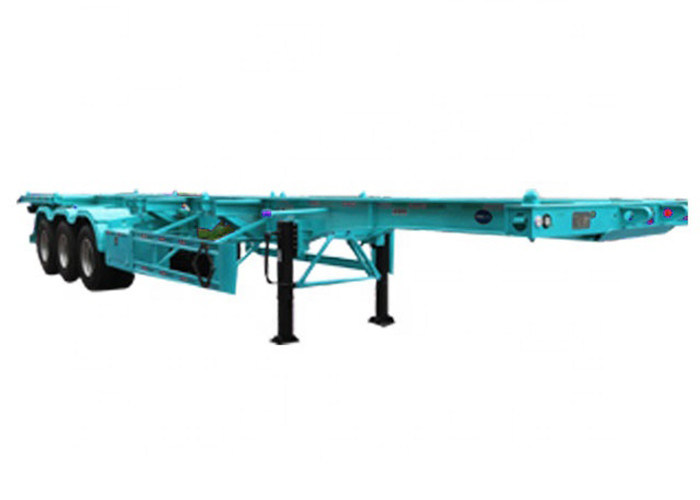

Container Semi-Trailer 3 Axles 20ft 40ft shipping Transport skeleton Container Semi Truck Trailer
3 Axles Flatbed Container Semi Trailer
Container chassis, also called intermodal chassis or skeletal trailer, is a specialized semi-trailer, basically a wheeled metal
frame, that a shipping container can be mounted onto for road transport. Our Container semi trailer choose Q345B carbon
high-tensile steel material. We adopt world famous brand of parts, like JOST, WABCO braking valve etc. We can also produce the semi trailers like flatbed trailer, Skeleton trailer, dump semi trailer etc. trailers will be inspected before painting ensure every detail in good condition. We are manufacturer, provide customized service, design as the customers’ every request. Our design ability has reached a domestic first level, rich production experience, short delivery time. Our company has passed ISO9001 quality system certification, production of lowbed trailer in China has already occupied a very high market share in Africa and Russia. Our phone service 24 hours service for you.
parameter:
| Product Name | Semi Trailer |
| Tare Weight | 4000-6500kg |
| Loading Weight | 35-65T |
| Dimension | 12500*2500*1550mm |
| Main Beam |
Q345B/ST52-3 Height: 500mm upper plate: 14mm middle plate: 8mm Down plate: 16mm |
| Side Beam | Q235 16# channel steel |
| Cross Member | Q235 10# channel steel |
| Platform | 3mm diamond platform |
| King Pin | 2 / 3.5 inch bolts type |
| Twist Lock | 12 pieces |
| Landing Gear | Standard 28ton |
| Outrigger | FUWA / JOST brand |
| Rim | 8.5-20(optional) |
| Tire | 12R22.5 |
| Spare Tire Carriers | 2pcs |
| Suspension System | Mechanical suspension / Air suspension |
| Axle | 13T Axle FUWA / BPW Brand |
| Leaf-spring | 90(W)mm*13(Thick)mm*10 Layer |
| Brake System | Dual Line braking system |
| Brake Air Chamber | Six double chamber |
| Electrical System | 24V, 7core socket |
| Color and Logo | Optional and customized |
| Tool Box | 1 Standard |
product presentation:
Truck Trailer:
1. This series container semi trailers are mainly suitable for the MID/Long distance transportation of Standard containers or ISO tank container,this series container semi trailer divides the flatbed.skeleton type etc.
Carrying for dry cargos, 1*40FT,2*20FT,1*20FT or 1*45FT etc. containers / High Quality Body/BPW, FUWA or Certificated Chinese Axles / ABS brake system / JOST or Chinese brand parking leg and king pin / Air and Mechanical Suspension / Strengthen the Chassis Instructure.
2. The capacity is for 50tons , we can manufacture it according to your needs.
3. The axles can be Fuwa / BPW with different tonnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc.
5. The loading deck can be concave beams, tire appeared cover, totally flatbed, or extendable.
6. The loading ramps can be rear end designed, or front loading ladders, which can be mechanic spring ladders and hydraulic loading ramps by different needs .
Additional information for Truck Trailer or Semi Trailer
1.The parameters of the truck trailer are just common configurations, not absolute.The specific configuration of thetruck trailer will be executed according to your needs.
2.We also do OEM and ODM.If you are interested in understanding our abilities and the truck trailer, we are always welcome.
3.The final price of all truck trailer is determined by the truck trailer configuration you choose.Therefore, if you are
interested in purchasing products, please contact us.
FAQ:
Q1. What's your MOQ?
One unit trailer or truck.
Q2. Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
Q3. How about your product quality?
High quality has always been our advantage.We all use high quality brand materials with 100% quality assurance.
Q4. How can I get the price of your vehicle?
You can contact with us through any of the following contact information. Our personalized service person will respond you within 24 hours.
Q5. Is it available to print our own brand on the vehicle?
Totally acceptable as you wish.
