Product Details:
Payment & Shipping Terms:
|
| Axle: | 2 Axle Of Fuwa/BPW/other Axle | Weight: | 5000kg |
|---|---|---|---|
| Material: | Steel | King Pin:: | 2"(50mm)or3.5"(90mm) |
| Tire: | 11.00R20/12.00R20/12.00R25 | Capacity: | 30T~ 60T |
| Support Leg: | 25Ton FUWA (Double Speed) | Function: | Transport 20ft 40ft Container |
| External Dimensions(l X W X H)(mm): | 12500*2500*1600mm | ||
| High Light: | Red 20ft Skeletal Trailer,20ft Skeletal Trailer 5000kg,5000kg 40ft Skeleton Semi Trailer |
||
20ft 40ft Skeleton Trailer Container Skeleton Truck From China Manufacture
Skeleton Semi Trailer:
LISHIXIN skeleton container semi trailer dedicated to the transport of various containers, and also can be used to transport ordinary growth goods with its platform. It has sufficient strength, and mainly used in transport system, such as ships, ports, routes, highways, transit stations, bridges, tunnels, multimedia transport system.
40ft Flatbed Container Trailer can carry 40ft and two 20ft containers.The flatbed trailer capacity ranges from 20 tons to 80 tons with 2 axle, 3 axles, and 4 axles.
We use high quality tensile steel to reduce beam fracture probability.The main beam is opting for high tensile steel Q345B and axle can be selected of BPW or FUWA brand. We adopt world famous brand of parts, like JOST, WABCO braking valve etc.
We are manufacturer, provide customized service, design as the customers’ every request.
We have a professional trailer design department , rich production experience, short delivery time. Our factory has passed ISO9001 quality system certification. Our phone service 24 hours service for you. Our cooperation can be ODM or OEM mode.
parameter:
|
Product Name
|
Semi Trailer
|
|
Tare Weight
|
4000-6500kg
|
|
Loading Weight
|
30-60T
|
|
Dimension
|
12500*2500*1600mm
|
|
Main Beam
|
Q345B/ST52-3
Height: 500mm upper plate: 14mm middle plate: 8mm Down plate: 16mm |
|
Side Beam
|
Q235 16# channel steel
|
|
Cross Member
|
Q235 10# channel steel
|
|
Platform
|
3mm diamond platform
|
|
Landing Gear
|
Standard 28ton
|
|
Outrigger
|
FUWA / JOST brand
|
|
Rim
|
8.5-20(optional)
|
|
Tire
|
12R22.5
|
|
Suspension System
|
Mechanical suspension / Air suspension
|
|
Axle
|
13T Axle FUWA / BPW Brand
|
|
Brake System
|
Dual Line braking system
|
|
Brake Air Chamber
|
Six double chamber
|
|
Color and Logo
|
Optional and customized
|
|
Tool Box
|
1 Standard
|

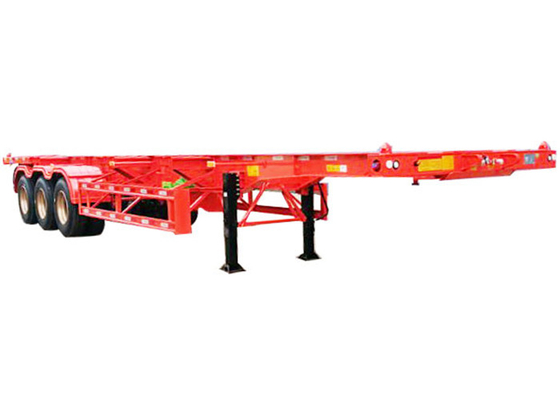

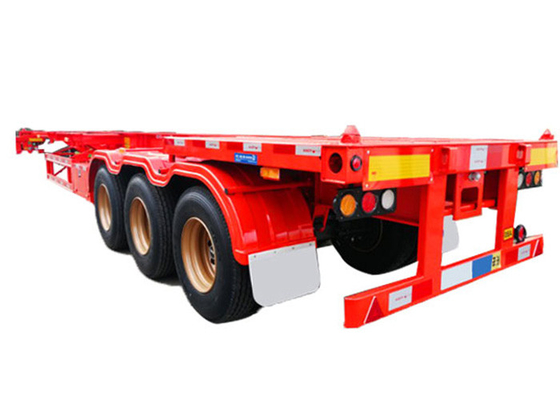

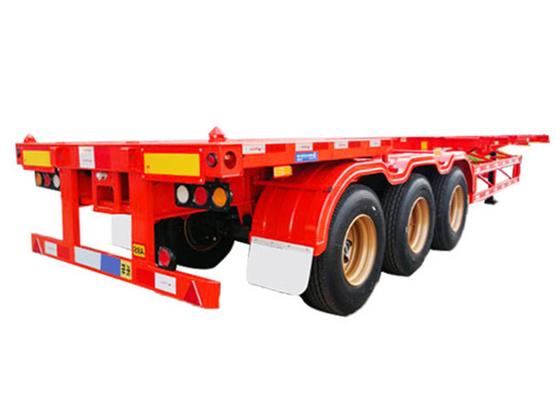

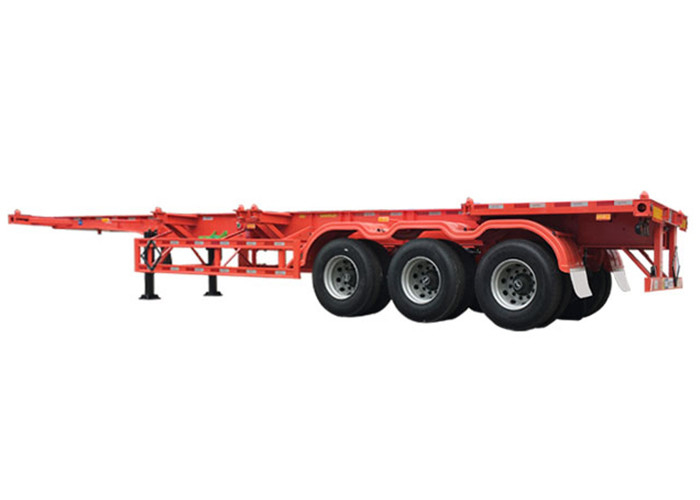

product detail presentation:
Our Service:
1. Advanced equipment and rich experience workers are applied during the whole producing process to ensure the quality of Low bed semi trailer.
2. We have passed ISO9001:2008, CCC, BV, SGS, TUV.
3. We have more than 20 years of experience and a strong team of engineers, we are manufacturer, we could design the product according to your special requirements.
4. We have rest assured after-sales service.
