Product Details:
Payment & Shipping Terms:
|
| Application: | LNG/O2/N2/N2O/CO2/Ar Storage And Transport | Design Temperature: | -196°C To 55°C |
|---|---|---|---|
| Test Pressure: | 2.21Mpa | Capacity: | 21000L |
| Guidelines For Tank Container: | T75 UN Portable Tank | Gross Weight: | 34000 Kg |
| Design Standard: | IMDG-CODE, GB150-98 | Size: | 20/40 Feet, Tank Type |
| Dimension: | 6058 X 2438 X 2591 Mm; 12192 X 2438 X 2591 Mm | Allowed Stacking Weight: | 192000kgs |
| Highlight: | LNG Cryogenic ISO Tank,Cryogenic ISO Tank T75,T75 40 Ft Tank Container |
||
ISO T75 Oxygen/nitrogen/hydrogen storage tank container
UN T75 Cryogenic 20ft 40ft ISO LNG Tank Container:
Natural gas has the characteristics of high heat value and low pollution, which has become the ideal clean energy. Liquefied natural gas to LNG transport, higher than compressed natural gas (CNG) bicycle transport capacity.
LNG tank containers (hereinafter referred to as "LNG tanks") can be transported by road, railway, water and other ways due to their mobility and flexibility, thus becoming the main means of transportation for LNG.
The main structural type LNG tank of LNG tank is composed of tank, operation box and frame.The tank and frame form the tank box through short half cylinder, strip support, and special steel pipe. The one end of the tank is equipped with the operating box, which controls the valve and the safety device, and USES the centralized layout to facilitate the loading and unloading of the medium.
parameter:
| Codes and regulations | RID/ADR, IMDG, ASME VIII DIV 1-2017Ed; | |||
| T75 UN PORTABLE TANK TIR;UIC;CSC;TC;FRA;CFR49;ISO 1496/3;ISO Standard 1161 | ||||
| Guidelines for tank container | T75 UN Portable Tank | |||
| ISO Size and type code | 42K7 | |||
| Maximum Allowed Loading Weight | 17510kgs | |||
| Tare Weight | 11700kgs | |||
| Allowed stacking weight | 192000kgs | |||
| Manufacturing license level | Inside tank | C3 | ||
| outside tank | ||||
| Max. Working Pressure(Mpa.) | Inside tank(MPa) | 0.75 | ||
| outside tank(MPa) | -0.1(Vacuum) | |||
| Min. Working Tempretrues | Inside tank | -196°C | ||
| outside tank | -40°C | |||
| Design Pressure(Mpa.) | Inside tank | 0.8 | ||
| outside tank | -0.103 | |||
| Design Tempretrues | Inside tank | -196 °C | ||
| outside tank | 50 °C | |||
| The Main material | Cover | inside tank | SA-240M 304 | |
| outside tank | Q345R | |||
| Shell | inside tank | SA-240M 304 | ||
| outside tank | Q345R | |||
| Frame work | Hollow Section | Q345-D--GB/T1591 | ||
| Plates | Q345-D--GB/T1591 | |||
| Rolled section | Q345-D--GB/T1591 | |||
| Overall Size(Frame)/L*W*H/mm | 12192*2438*2591 | |||
| Media | Inside tank | LNG | ||
| Media Characteristics | Inside tank | explosive | ||
| Paint | Frame | 30µm +40µm +50µm | ||
| Shell | 30µm +40µm +50µm | |||
| Total Volume(L) | 45700 | |||
| Type Of Insulation | High Vacuum Multi-layer Insulation | |||
| Material | Aluminium Foil | |||
| Provision for Baffles | Five sets of surge baffles shall be installed. | |||
| Corrosion allowance | Inside tank | 0mm | ||
| outside tank | 0mm | |||

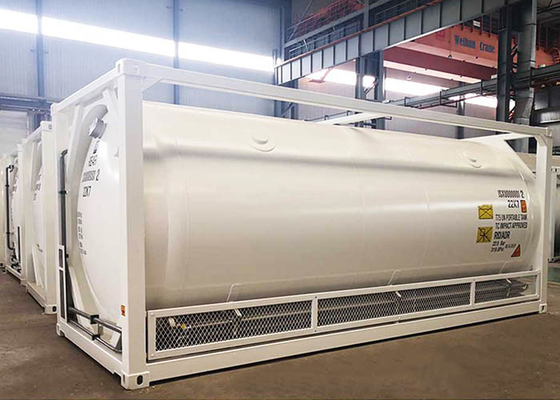

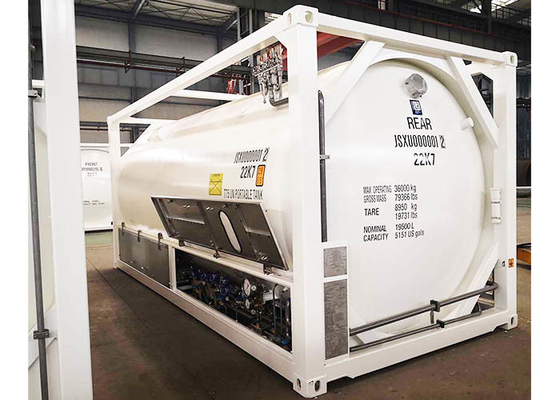

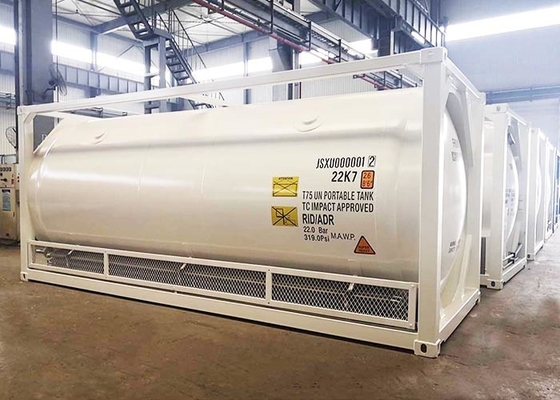

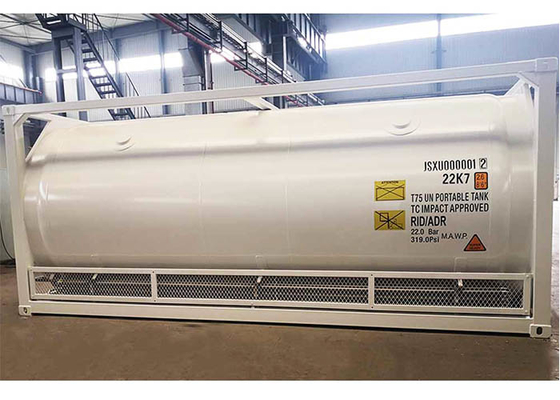

Image details:
Company Profile:
Henan Lishixin Logistics Equipment Co., Ltd is located in Zhengzhou FTA,Henan Province,
China, with a registered capital of 3, 500, 000USD.Lishixin is specialized in the R & D,
mass production and sales of kinds of the 20FT, 30FT, 40FT ISO Storage Tank
Containers and Storage Tanks as well as other special logistic Transportation
equipments.Based on rich transportation advantages and resource of Central
China, Lishixin is committed to supply high quality and cost-effective transportation
equipment for clients all over the world.
Main Products: ISO storage tank containers(Liquid tank containers,Powder Tank containers,
Cryogenic tank containers, CNG Tank Container, Cryogenic Liquid Gas Storage Tanks),
Cryogenic Tank Semi Trailer etc. Other logistic transportation equipments.
International Market: Annual production capacity 8000units of the Tank Containers,and the
annual total sales 3500units, Of which, we have exported more than 800units Tank containers,
Cryogenic Tank Semi Trailer to more 25 countries around the world, including Mexico,
Columbia, Chile, Peru, Honduras, South African, Nigeria, Egypt, Algeria, Saudi Arabia,
Turkey, Pakistan,Myanmar, Uzbekistan, Russia, Ukraine, Philippines,Indonesia,
Malaysia, Bangladesh, etc. What's more, we have established long-term semitrailer&tanks
supply contracts with more than 10 famous transportation&other type of the enterprises in the world.
our factory:
FAQ:
A.T / T and L/C is all right to us.
Q.Does your iso tank container meet with international requirement?
A.All of our tank container will be approval by BV or LR or CCS and meet with International Standard.
Q.How long will it takes to ship?
A.Around 15-25 working days.
Q. How about the Color , Specific configuration things?
A.It's up to you , most of them are optional and can be changed by your needs.
