Product Details:
Payment & Shipping Terms:
|
| Curb Weight: | 6.2T | Side Frame: | Channel Steel |
|---|---|---|---|
| Loading Capacity: | 50T | Brake Chamber: | 6sets |
| Accessories: | 1 Standard Tool Box | Platform Thickness: | 11.00R20/12.00R20/ 12R22.5 |
| Landing Gear: | 28T*2, JOST Brand | King Pin: | 2"(50mm)or3.5"(90mm) JOST Brand |
| High Light: | 6.2T Stake Semi Trailer,Stake Semi Trailer 12R22.5,12R22.5 Fence Cargo Trailer |
||
1. Mainly used for the middle&long-distance transport of the medium&heavy-duty and bulk goods, widely used for variety of the cargoes.
2. Extensive usage Fast and efficient.
3. The quality of this product is reliable, extensive usage, has become the preferred models of middle&long-distance freight vehicles.
4. The whole vehicle adopts the advanced computer-aided design software to optimize the design, make the Frame reasonable offload&scientific design by FEA( Finite Element Analysis) according to requirement of the vehicle carrying quality.
5. Axles, tires and other supporting parts are all well-known products purchased from domestic and foreign manufacturers.
|
Overall Dimension
|
1300*2500*2900mm or Customized
|
|
Curb Weight
|
6.2T
|
|
Loading Capacity
|
50T
|
|
Main Beam Spec.
|
T700/Q345 Steel, Height:500mm, Plate Thickness:8-16mm
|
|
Side Frame
|
Channel Steel
|
|
Cross Brace
|
Channel Steel/Bending Steel
|
|
Suspension
|
Mechanical Suspension, Air Suspension or Optional/
Tandem or Single Suspension |
|
Leaf Spring
|
10-layers leaf spring(90mm*13mm*10pcs)
|
|
Axle Spec.
|
13T/16T/20T BPW or FUWA brand
|
|
King Pin
|
2"(50mm)or3.5"(90mm) JOST Brand
|
|
Tire
|
11.00R20/12.00R20/ 12R22.5
|
|
Brake Chamber
|
6sets
|
|
Landing Gear
|
28T*2, JOST brand
|
|
Accessories
|
1 Standard Tool Box
|
|
Electric System
|
24V, One Set 6-core Standard Cable
|
|
Light
|
Tail lamp with turn signal,brake light & reflector,side lamp etc
|
|
Painting
|
Sand blasting, prime coating, surface painting,color optional, wax polishing
|
|
Packing
|
FCL Container, Ro-ro Shipment or Optional
|
Stake Semi Trailer Of Production Processes:

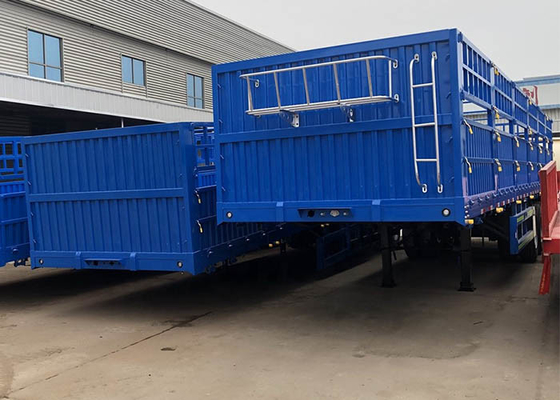

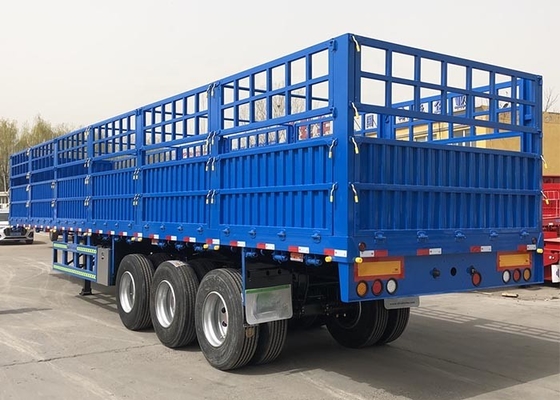

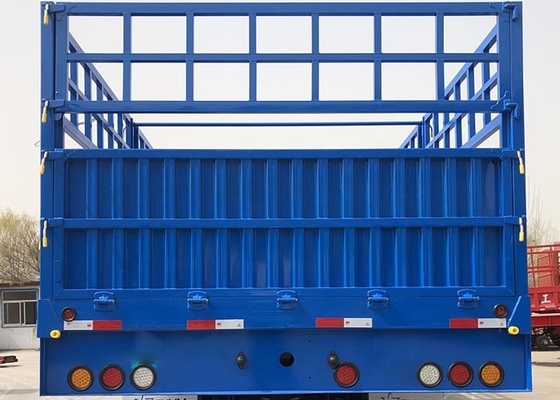

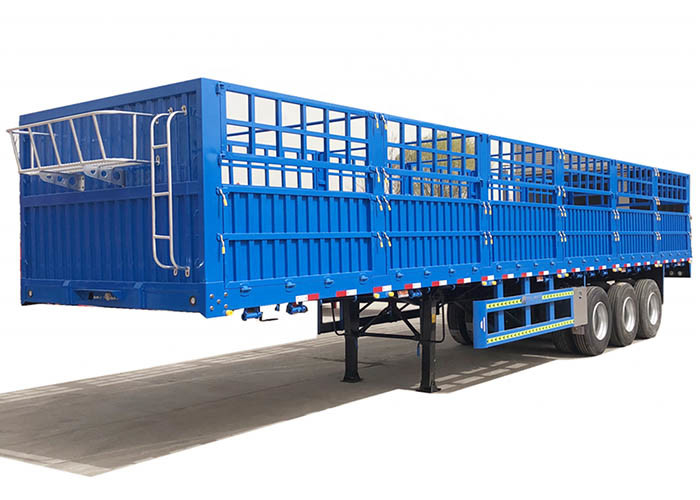

Stake Semi Trailer Of Details:
Surfaces cleaned by shot blasting. One epoxy coating and acrylic finish coating.
Durable against rust, support longer good looking and service life.
FAQ:
Q: Are you a manufacturer?
A: Yes, we are a manufacturer. We have passed ISO and CE certificate and our products have been exported to over 20 countries.
Q: Can you produce customizable machines?
A: Yes, we can provide customizable machines according to your requirements. We have 8 senior engineers and can design and supply
higher configuration.
Q: how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q: what can you buy from us?
Sinotruk howo truck head,Heavy duty sand/stone/mine/mud dump truck,Customized low bedsemi trailer,Oil tanker bulk cement semi trailer,Water milk truck.
