Product Details:
Payment & Shipping Terms:
|
| Tire: | 12.00R22.5 ; 315/80R22.5; 11.00R20; 12.00R20 Brand Can Be Optional | King Pin: | 2.0 Or 3.5 Inch Bolted Type |
|---|---|---|---|
| Main Beam: | Q345B Steel | Rim: | 9.0*22.5 / 8.0-20 / 8.5-20 |
| Capacity:: | 30 Ton - 100 Ton | Size: | 13000*3000*1650mm |
| Axle: | 13/16T | Fire Extinguiser: | Two Pieces 4 Kgs |
| High Light: | FUWA Six Axis Low Bed Semi Trailer,11.00R20 Low Bed Semi Trailer FUWA,11.00R20 Gooseneck Tractor Trailer |
||
Three Line of Six Axis Lowbed Semi Trailer 40ton Low Flat Bed Semitrailer for Sale Made in China
Low-bed semi-trailer
A lowboy (low-loader in British English, low-bed in western Canada and South Africa or float in Australia and eastern Canada) is a semi-trailer with two drops in deck height: one right after the gooseneck and one right before the wheels.This allows the deck to be extremely low compared with other trailers. It offers the ability to carry legal loads up to 12 ft (3.66 m) tall, which other trailers cannot. Lowboys are used to haul heavy equipment such as bulldozers and large industrial equipment.
Classification of low-bed semi-trailer
Our factory has the ability to manufacture low-bed semi-trailers with different axles and size. Apart from regular low-bed semi-trailers,we also produce and trade low-bed semi-trailers with special purpose.Low-bed semi-trailer with dolly
Product parameters:
| General | |||
| Overall Dimension | 11960mm*3000mm*3300mm | ||
| Flatbed Dimension | 8000mm*3000mm | ||
| Tare Weight | 9630kg | Pay Load | 40ton |
| King Pin Setting | 450mm | Rear Overhang | 1870mm |
| Wheel base | 7650mm+1305mm+1305mm | Loading Surface Height | 1320mm |
| Track | 2160mm | ||
| Running Gear | |||
| Suspension | Tri-axle 8-pcs leaf spring suspension with equalizer beam | ||
| Tires | 311.00-20, 11.00R20,12.00-20,12.00R20 12units | ||
| Axles | AQ,FUWA, BPW , 13T capacity | ||
| Brakes | Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; parking brake | ||
| Under Frame | |||
| Main Beam | I shape, Mild Alloy (16Mn) by Automatic submerged arc welding. | ||
| Cross Beam | Mild Alloy Q235, 16# channel beam | ||
| King Pin | Size: 50# (2'') or 90#(3.5''); Type: welded or assembled | ||
| Landing Gear | Single side operation or double side operation, Static capacity 30Ton | ||
| Flatbed Floor | Checkered sheet, thickness 4mm | ||
| Rear Ladders | Spring power-assisted | ||
| Electrical & Paint | |||
| Lights & Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | ||
| Wiring | 24V, 6 lines | ||
| Air/Elec. Connector | ISO standard air connector, 24V 7 pin plug socket | ||
| Paint | Sand blasting before painting, color upon request | ||
1. This series lowbed semi trailers are mainly used in heavy duty transportation for construction or logistic companies, such as excavator, digger, mover, crane,
2. The volume varies widely from 10 cube meters to 60 cube meters, we can manufacture it according to your needs.
3. The axles can be Fuwa / Bpw with different tonnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc
5. The loading deck can be concave beams, tire appeared cover, totally flatbed, or extendable
6. The loading ramps can be rear end designed, or front loading ladders, which can be mechanic spring ladders and hydraulic loading ramps by different needs.

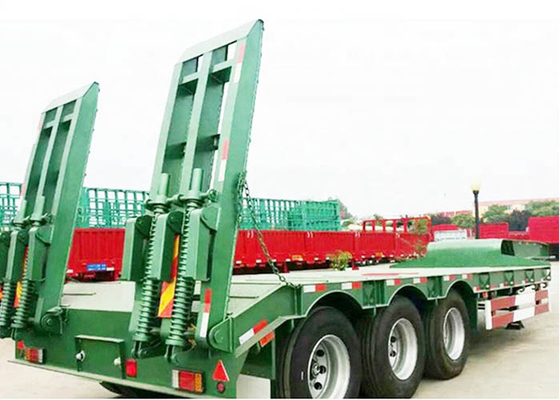

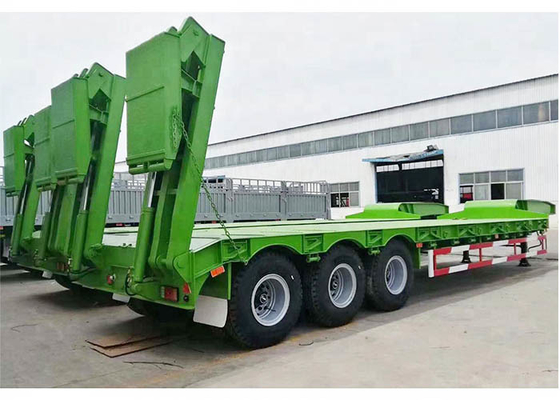

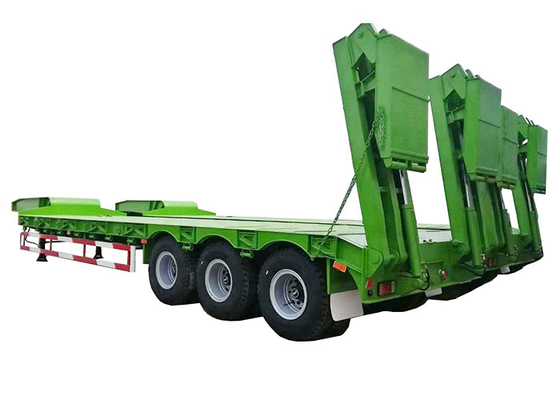

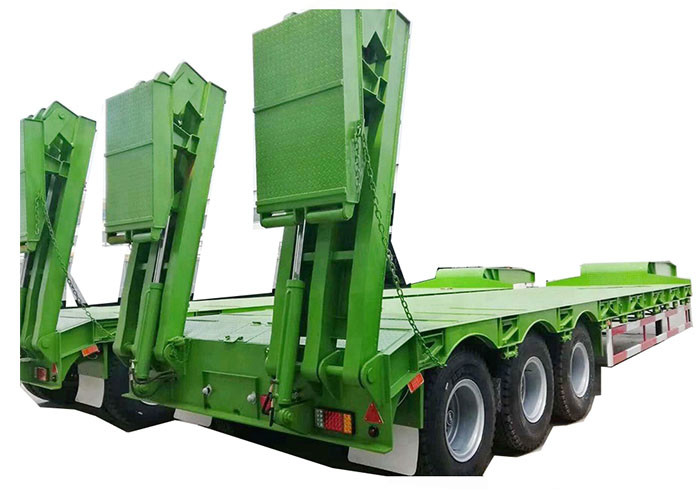

Product pictures:
details:
FAQ:
Q:How is your warranty?
A:We prefer buyout service,but don't worry, we provide technical support and parts purchase
channels throughout.If you need service, it’s all right, but the price may increase.
Q:What kind of Payment can you accept?
A:T / T and L/C is all right to us.
Q:How long will it takes to ship?
A:Around 15-25 working days.
Q:What is your MOQ?
A:1 Unit.
Q: How about the Color , Specific configuration things?
A:It's up to you , most of them are optional and can be changed by your needs.
