Product Details:
Payment & Shipping Terms:
|
| Tire: | 12.00R22.5 ; 315/80R22.5; 11.00R20; 12.00R20 Brand Can Be Optional | King Pin: | 2.0 Or 3.5 Inch Bolted Type |
|---|---|---|---|
| Main Beam: | Q345B Steel | Rim: | 9.0*22.5 / 8.0-20 / 8.5-20 |
| Capacity:: | 30 Ton - 100 Ton | Size: | 13000*3000*1650mm |
| Axle: | 13/16T | Fire Extinguiser: | Two Pieces 4 Kgs |
| High Light: | GREEN 80000kg Tri Axle Low Bed Trailer,GREEN Tri Axle Low Bed Trailer Q345B,Q345B detach gooseneck trailer for pickup truck |
||
3 axle 80T Low Bed Flat Bed trailer Truck Trailer Heavy Duty Hydraulic Traile
Low-bed semi-trailer
A lowboy (low-loader in British English, low-bed in western Canada and South Africa or float in Australia and eastern Canada) is a semi-trailer with two drops in deck height: one right after the gooseneck and one right before the wheels.This allows the deck to be extremely low compared with other trailers. It offers the ability to carry legal loads up to 12 ft (3.66 m) tall, which other trailers cannot. Lowboys are used to haul heavy equipment such as bulldozers and large industrial equipment.
Classification of low-bed semi-trailer
Our factory has the ability to manufacture low-bed semi-trailers with different axles and size. Apart from regular low-bed semi-trailers,we also produce and trade low-bed semi-trailers with special purpose.Low-bed semi-trailer with dolly
Product parameters:
| Product Name | Semi Trailer |
| Loading Weight | 80T |
| Dimension | 13750×3200×1650 mm(Adjustable as your requirements) |
| Main Beam |
Q345B/ST52-3 Height: 500mm upper plate: 14mm middle plate: 8mm Down plate: 16mm |
| Side Beam | Q235 16# channel steel |
| Cross Member | Q235 10# channel steel |
| Platform | 3mm diamond platform |
| King Pin | 2 / 3.5 inch bolts type |
| Twist Lock | 12 pieces |
| Landing Gear | Standard 28ton |
| Outrigger | FUWA / JOST brand |
| Rim | 8.5-20(optional) |
| Tire | 12R22.5 |
| Spare Tire Carriers | 2pcs |
| Suspension System | Mechanical suspension / Air suspension |
| Axle | 13T Axle FUWA / BPW Brand |
| Leaf-spring | 90(W)mm*13(Thick)mm*10 Layer |
| Brake System | Dual Line braking system |
| Brake Air Chamber | Six double chamber |
| Electrical System | 24V, 7core socket |
| Color and Logo | Optional and customized |
| Tool Box | 1 Standard |
1. This series lowbed semi trailers are mainly used in heavy duty transportation for construction or logistic companies, such as excavator, digger, mover, crane,
2. The volume varies widely from 10 cube meters to 60 cube meters, we can manufacture it according to your needs.
3. The axles can be Fuwa / Bpw with different tonnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc
5. The loading deck can be concave beams, tire appeared cover, totally flatbed, or extendable
6. The loading ramps can be rear end designed, or front loading ladders, which can be mechanic spring ladders and hydraulic loading ramps by different needs.

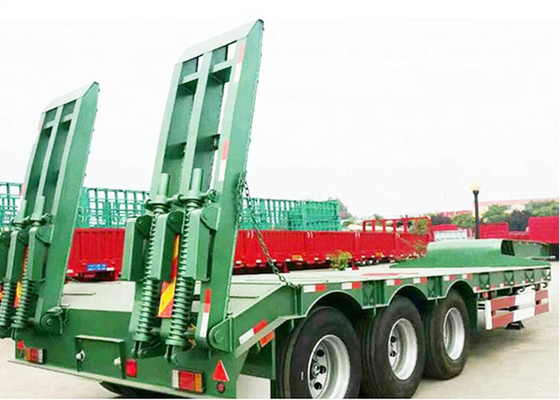

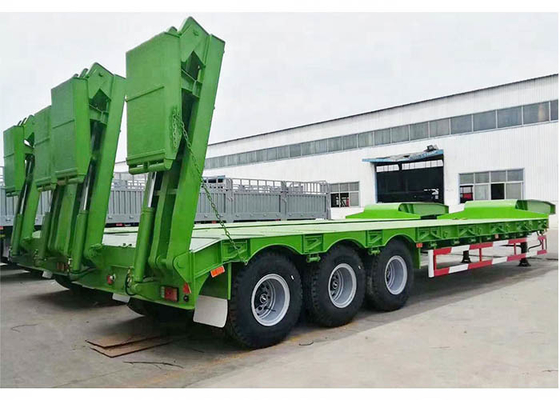

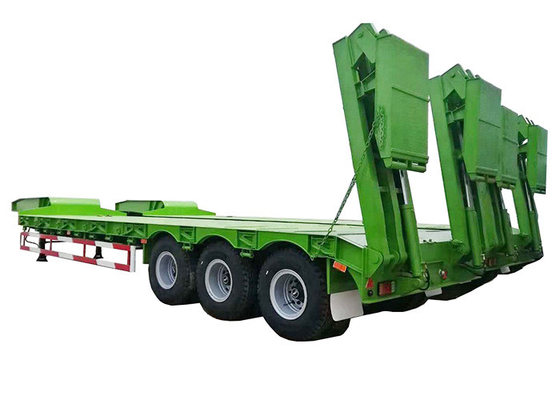

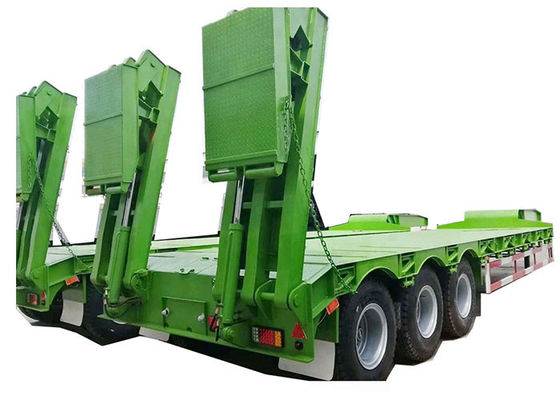

Product pictures:
details:
FAQ:
Q1. What's your MOQ?
One unit trailer or truck.
Q2. Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
Q3. How about your product quality?
High quality has always been our advantage.We all use high quality brand materials with 100% quality assurance.
Q4. How can I get the price of your vehicle?
You can contact with us through any of the following contact information. Our personalized service person will respond you within 24 hours.
Q5. Is it available to print our own brand on the vehicle?
Totally acceptable as you wish.
