Product Details:
Payment & Shipping Terms:
|
| Application: | LNG/O2/N2/N2O/CO2/Ar Storage And Transport | Material: | Q345R/16MnDR/SA-516M/SA-612M |
|---|---|---|---|
| Design Temperature: | -196°C To 55°C | Test Pressure: | 2.21Mpa |
| Capacity: | 21000L | Guidelines For Tank Container: | T75 UN Portable Tank |
| Gross Weight: | 34000 Kg | Design Standard: | IMDG-CODE, GB150-98 |
| Size: | 20/40 Feet, Tank Type | Dimension: | 6058 X 2438 X 2591 Mm; 12192 X 2438 X 2591 Mm |
| Allowed Stacking Weight: | 192000kgs | ||
| High Light: | CSC Cryogenic Oxygen Tanks CNG T75,Cryogenic ISO Tank Containers LC2h4,LC2h6 Stainless Steel ISO Container |
||

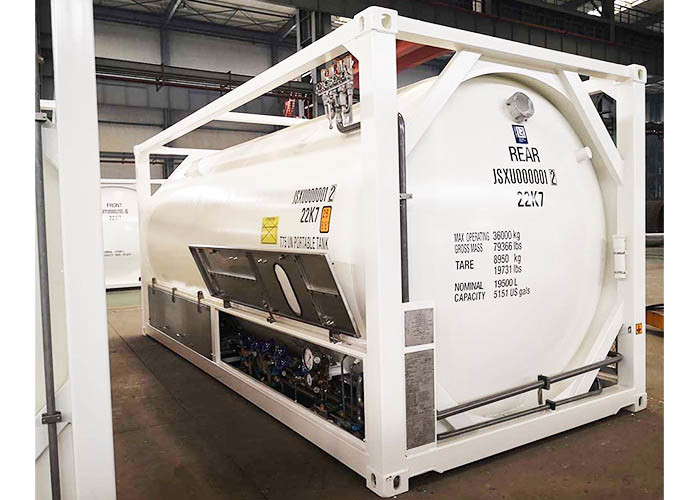

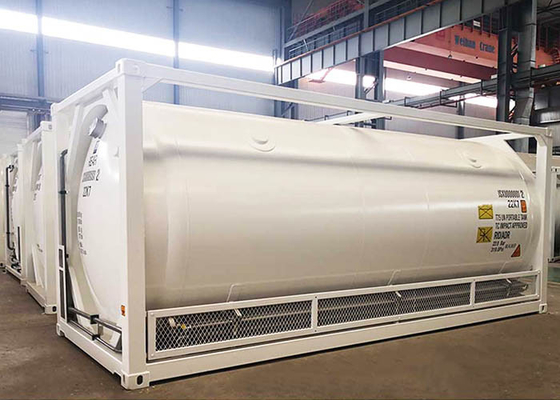

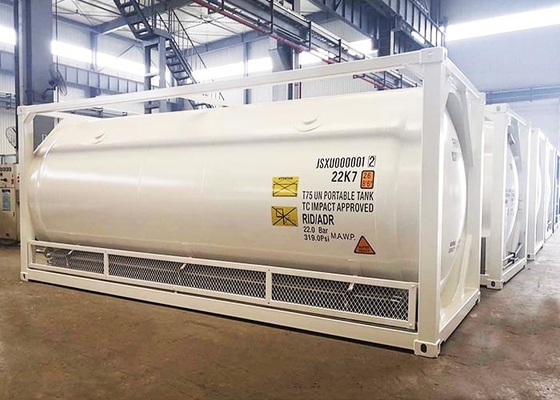

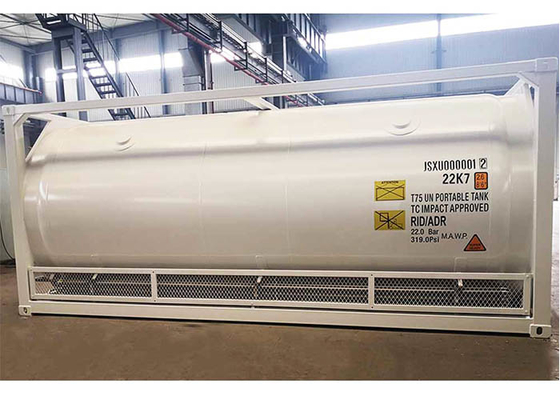

T75 ISO LNG/Lar/Lin/Lox/N2o/Lco2/LC2h4/LC2h6 Stainless Steel Tank Container with Cryopump
UN T75 Cryogenic 20ft 40ft ISO LNG Tank Container:
Natural gas has the characteristics of high heat value and low pollution, which has become the ideal clean energy. Liquefied natural gas to LNG transport, higher than compressed natural gas (CNG) bicycle transport capacity.
LNG tank containers (hereinafter referred to as "LNG tanks") can be transported by road, railway, water and other ways due to their mobility and flexibility, thus becoming the main means of transportation for LNG.
The main structural type LNG tank of LNG tank is composed of tank, operation box and frame.The tank and frame form the tank box through short half cylinder, strip support, and special steel pipe. The one end of the tank is equipped with the operating box, which controls the valve and the safety device, and USES the centralized layout to facilitate the loading and unloading of the medium.
parameter:
| Items | Parameter | ||
| UN tank instruction | T75 | ||
| TARE(kg) | 9200 | ||
| MPGM(kg) | 36000 | ||
| Stacking Load(kg) | 192000 | ||
| Contents | UN1073 | LOX | |
| UN1977 | LIN | ||
| UN1951 | LAR | ||
| UN2187 | LCO₂ | ||
| UN2201 | LN₂O | ||
| Type of insulation | High vacuum multi -layer | ||
| MAX .Filling rate | 0.95 | ||
| Design temperature MAX./MIN(℃) | -196/+50 | ||
| Material of frame | Q355D(GB/T1591) | ||
| Outer size (L×W×H) | 6058×2438×2591 | ||
| Full capacity(±1%) (m³) | 21 | ||
| M.A.W.P(MPa) | 2.20/－0.02 | ||
Image details:
Company Profile:
Henan Lishixin Logistics Equipment Co., Ltd is located in Zhengzhou FTA,Henan Province,
China, with a registered capital of 3, 500, 000USD.Lishixin is specialized in the R & D,
mass production and sales of kinds of the 20FT, 30FT, 40FT ISO Storage Tank
Containers and Storage Tanks as well as other special logistic Transportation
equipments.Based on rich transportation advantages and resource of Central
China, Lishixin is committed to supply high quality and cost-effective transportation
equipment for clients all over the world.
Main Products: ISO storage tank containers(Liquid tank containers,Powder Tank containers,
Cryogenic tank containers, CNG Tank Container, Cryogenic Liquid Gas Storage Tanks),
Cryogenic Tank Semi Trailer etc. Other logistic transportation equipments.
International Market: Annual production capacity 8000units of the Tank Containers,and the
annual total sales 3500units, Of which, we have exported more than 800units Tank containers,
Cryogenic Tank Semi Trailer to more 25 countries around the world, including Mexico,
Columbia, Chile, Peru, Honduras, South African, Nigeria, Egypt, Algeria, Saudi Arabia,
Turkey, Pakistan,Myanmar, Uzbekistan, Russia, Ukraine, Philippines,Indonesia,
Malaysia, Bangladesh, etc. What's more, we have established long-term semitrailer&tanks
supply contracts with more than 10 famous transportation&other type of the enterprises in the world.
our factory:
FAQ:
Q: I want the Tank Container with discharging pump system,can you supply?
A:Yes,the discharging pump system is the option configuration,you can choose it as you want. Besides, we can also supply some related equipment for the tank container such as the evaporator etc.
Q: Do you have the certificates to meet us the transportation ways of the land truck,Sea Boat and Railway?
A:Yeah,of course,but the price will be very different by different transportation ways;So kindly please let me know your exact transportation ways before the quoting;And also the certificates will be ready after the tank container passed all kinds of the testing&inspection.
Q: Do you have the stocked tank containers?
A:Yes,but the price will be higher than the normal one.
Q: Can i have the drawings of this ISO Storage tank containers?
A:Yeah,the existing simple similar drawings of the tank container for your reference only for the beginning,will make the more precise drawings after getting the down payment,and will send this drawing to you for your confirmation before production.
Q: Can i make the discharging valves at the bottom?
A:Yes,the discharging valves can be at the bottom or at the top,you can choose as your actual request.
Q: How can i pay the money without risk?
A:You can pay the money to us via Alibaba Trade Assurance,then the alibaba can guarantee your money safe and the delivery on time.
Q: Can i do your agent in our country or some district?
A:Yes,if you quantity is enough,no problem,the 50units for the first time is okay.
