Product Details:
Payment & Shipping Terms:
|
| Drive Form: | 6X4 | Horsepower: | 371Hp 375Hp |
|---|---|---|---|
| Color: | According To Customer Requirements | Load: | 30 TONS |
| Seats: | ≤5 | Front Track: | 2022mm |
| Cargo Box Form: | Back Flip Self-unloading | Fuel Type: | Diesel Fuel |
| High Light: | 30 Tons 8x4 Yellow Tipper Truck,60 ton dump truck 375Hp,375Hp Sinotruk Howo 8x4 Dump Truck |
||

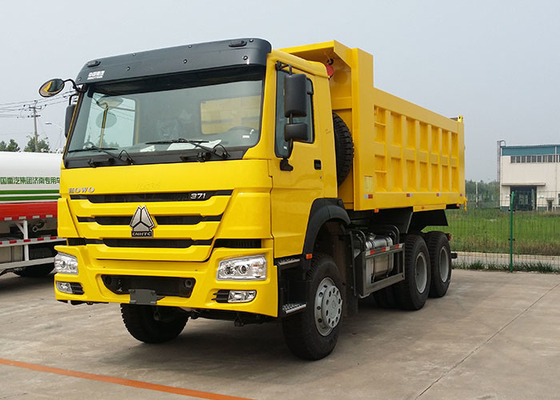

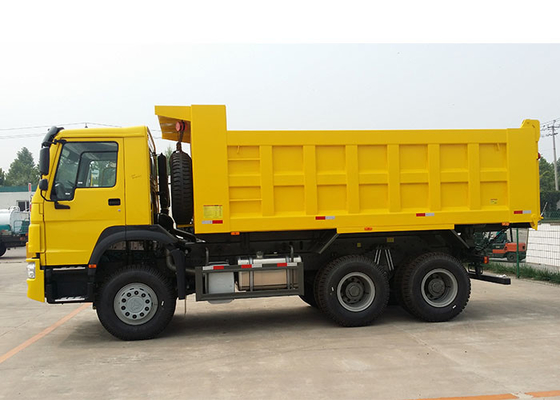

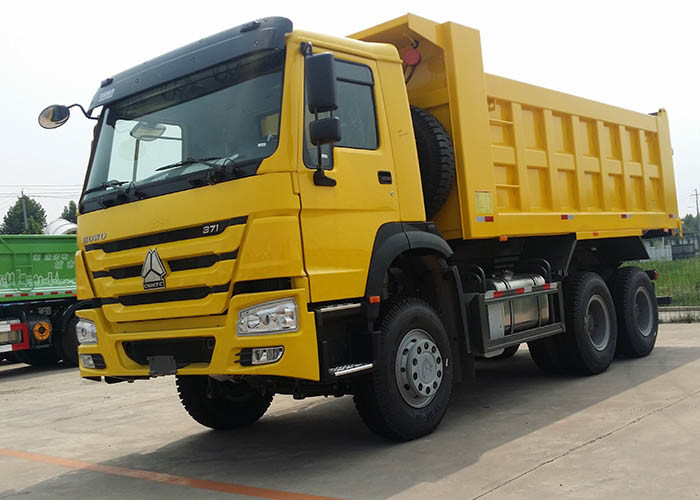

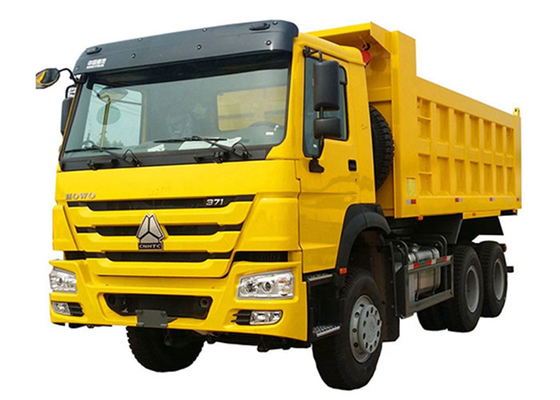

China Original Sino Truck Sinotruk Heavy Duty Truck/HOWO New 6X4 10 Wheels 336/371HP Tipper/Dumper/Dump Truck Price
HOWO truck which adopts the international key advanced technology of heavy duty truck, is a product for the Chinese market and international markets, it is researched and developed by sinotruk in line with international technical standards, sinotruk own its independent brand and independent intellectual property right, it is a new generation high end, advanced and matured heavy duty truck.
Tipper Dump Truck Of Product Description:
Since the loading carriage can automatically tip over for unloading at a certain angle, it greatly saves unloading time and labor, shortens the transportation cycle, improves production efficiency, and reduces transportation costs. It is a commonly used special transportation vehicle.
1. Classified by appearance: single-axle dump truck, double-axle dump truck, flat-head dump truck, pointed tip dump truck, front four-back eight dump truck, double-axle semi-trailer dump truck, three-axle semi-trailer dump truck
2. Classified by purpose: agricultural dump truck, mining dump truck, garbage dump truck, coal transportation dump truck, construction machinery dump truck, sludge dump truck
3. According to the different driving modes, it is also divided into 6x4, 8x4 for unloading and semi-trailer dump trucks.
4. According to different uses, it is also divided into mining dump trucks, used to transport coal, sand and gravel; environmental sanitation and green dump trucks, used to transport garbage, etc.
5. According to the direction of the car rollover, there are also front lift and rollover dump trucks. There are also two-way side dump trucks, which are mainly used in construction projects.
Tipper Dump Truck Of Product parameters:
| CONFIGURATIONS | ||
| State | New | |
| Size (mm) | 8685 x 2550 x 3490 | |
| Box Size (mm) | 5800 x 2300 x 1500, 8mm at the bottom, 6mm at both sides | |
| Load capacity | 30 Tons | |
| Unloaded weight | 12500 kg | |
| Max. Speed | 90km/h | |
| Tires | 12.00R20, 10+1pcs | |
| Wheelbase | 3825+1350mm | |
| Axle | HF9 front axle,HC16*2 rear axle, Speed ratio 5.73 | |
| Engine | Engine power | 371HP @ 2200 tr / min |
| Max torque | 1500 N.m @ 1100-1600 tr / min | |
| Air intake type | turbo-charge and inter-cool | |
| Number of cylinder | 6 | |
| Alignment of cylinders | 6 cylinders in line | |
| Minimum fuel consumption | ≤193g / kW.h | |
| Fuel injection type | Direct injection | |
| Compression ratio | 17: 1 | |
| Bore * Stroke | 126x130mm | |
| Ignition sequence | 1-5-3-6-2-4 | |
| Transmission | SINOTRUK HW19710 transmission with HW50 power take-off, 10 front and 2 reverse | |
| Clutch | Diaphragm spring clutch SINOTRUK 430 diaphragm, hydraulically operated with air assistance | |
| Steering | ZF8118 Steering gearbox, hydraulic power steering. | |
| Braking system | Parking brake (emergency brake): spring energy, compressed air operating on rear wheels | |
| Main beam | Double-layer frame (8 + 8/300) | |
| Cab | Single berth, new seat, External sun visor | |
| Steering wheel adjustable up and down, front and rear | ||
| English VDO Instrument | ||
| Four point floating spring suspension + shock absorber + side stabilizer | ||
| Seat belt with double locking structure | ||
| Heating and cooling air conditioner (the air conditioning control panel is LCD display with LED lighting) | ||
| Cruise, generator voltage abnormal sound warning system (to prevent damage to electronic devices) | ||
| Warranty | The engine, axle and gearbox are guaranteed within 1 year or 30,000 kilometers of the truck | |
