Product Details:
Payment & Shipping Terms:
|
| Brand Name: | Howo A7 | Segement: | Heavy Truck |
|---|---|---|---|
| Gear Box Brand: | SINOTRUCK | Front Axle: | HF9 |
| Rear Axle: | HC16 | Maximum Torque(Nm): | 1000-1500Nm |
| Cargo Box Form: | Back Flip Self-unloading | Fuel Type: | Diesel Fuel |
| High Light: | HF9 Howo A7 Dump Truck,Howo A7 Dump Truck 6x4,6x4 30 Tonne Dump Truck 10 Wheels |
||

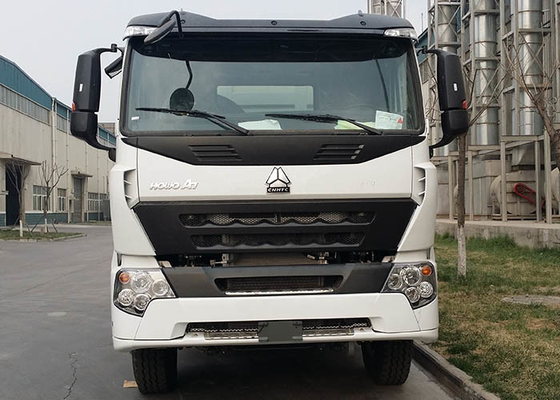

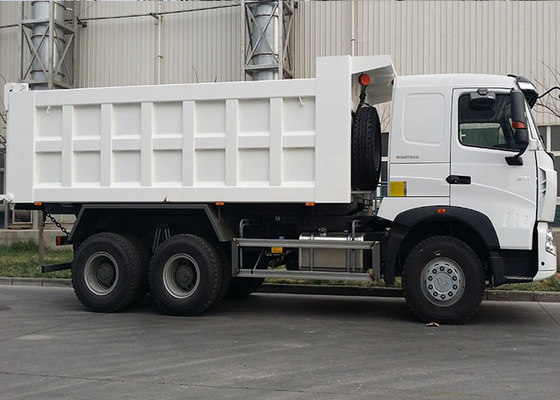

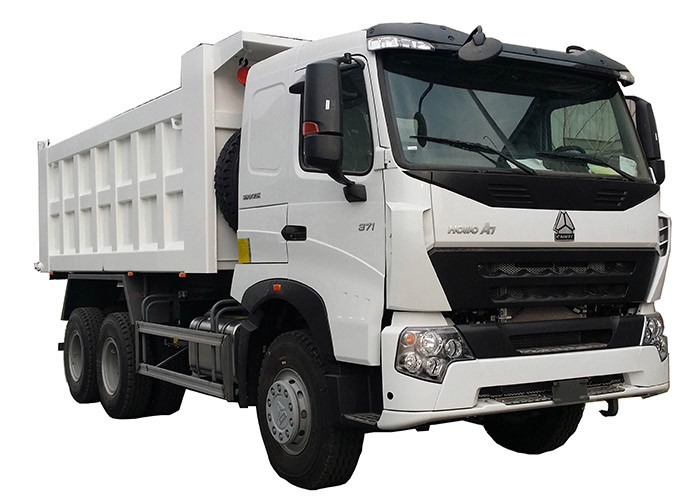

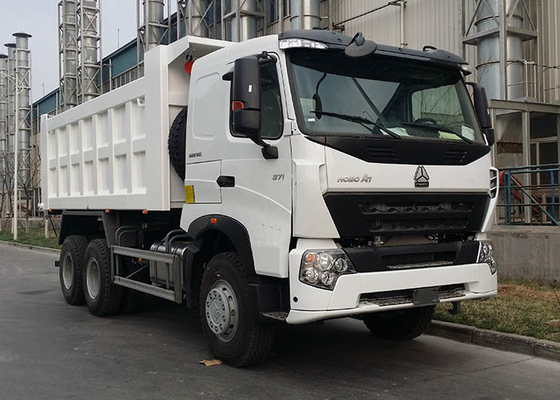

Factory Direct Sale Sinotruk HOWO A7 Tipper Dump Truck 30 ton 6x4 10 Wheels
Tipper Dump Truck Of Product Description:
Since the loading carriage can automatically tip over for unloading at a certain angle, it greatly saves unloading time and labor, shortens the transportation cycle, improves production efficiency, and reduces transportation costs. It is a commonly used special transportation vehicle.
1. Classified by appearance: single-axle dump truck, double-axle dump truck, flat-head dump truck, pointed tip dump truck, front four-back eight dump truck, double-axle semi-trailer dump truck, three-axle semi-trailer dump truck
2. Classified by purpose: agricultural dump truck, mining dump truck, garbage dump truck, coal transportation dump truck, construction machinery dump truck, sludge dump truck
3. According to the different driving modes, it is also divided into 6x4, 8x4 for unloading and semi-trailer dump trucks.
4. According to different uses, it is also divided into mining dump trucks, used to transport coal, sand and gravel; environmental sanitation and green dump trucks, used to transport garbage, etc.
5. According to the direction of the car rollover, there are also front lift and rollover dump trucks. There are also two-way side dump trucks, which are mainly used in construction projects.
Tipper Dump Truck Of Product parameters:
| Dimension(Lx W xH)(unloaded)(mm) | 8065×2496×3490 | |||
| Cargo body size (LxWxH) (mm) | 5200x2300x1500 Sand body,Middle lifting, Bottom 8 mm, Side 6 mm | |||
| Approaching angle/Departure angle(°) | 20/26 | |||
| Overhang(front/rear) (mm) | 1540/1750 | |||
| Wheel base (mm) | 3425+1350 | |||
| Max speed(km/h) | 78 | |||
| Curb weight(kg) | 12170 | |||
| Engine(Steyr technology, made in China) | Model | WD615.69,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection | ||
| Fuel type | Diesel | |||
| Power, max(kw/rpm) | 336HP | |||
| Emission | EUROII | |||
| Fuel tanker capacity(L) | 300L aluminum oil tank | |||
| Transmission | Model | HW19710, 10 speeds forward and 2 reverse | ||
| Brake system | Service brake | Dual circuit compressed air brake | ||
| Parking brake | spring energy, compressed air operating on rear wheels | |||
| Steering system | Model | ZF8118 | ||
| Front axle | HF9 | |||
| Rear axle | HC16 | |||
| Tire | 12.00R20 | |||
| Electrical system | Battery | 2X12V/165Ah | ||
| Alternator | 28V-1500kw | |||
| Starter | 7.5Kw/24V | |||
| Cab | A7-W Standard Driving Cab:Four-point suspension plus coil spring and shock absorber; one sleeper with air conditioning; adjustable seat with radio, MP3 player and VDO numerical control instrument; manually adjusted rear-view mirror and manually lifted driving cab. | |||
This kind of dump truck has the advantages as below
1. Suitable for earthwork, gravel, bulk materials,etc.;
2. Dump a certain angle of unloading, high production efficiency;
3. Save Transportation costs;
4. Customized design to meet different customer needs.
Q: Are you Dealer or Factory ?
A: We are the subsidiary factory of Sinotruk and adopt the strict quality control system which the high quality of the truck.
Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok, but we need take apart the truck and you should reinstall in your country.
Q: How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q: I want to be your agent in my country, is that ok?
A: It’s ok, if your quantity is big, we will consider. For the first time 50 units is ok.
Q: How about your company's service, especially after-sale service?
A: SINOTRUK has been in this field for nearly 60 years and has strong production and distribution capability, we can satisfy your demand within 3-7 days. We always do our best to solve all the problems and put our customer's interests in the first place.
Q: What is your payment terms?
A: You can choose to the 30% prepaid and 70% paid before delivery or you can choose the L/C 100% at sight.
Q: What is your lead time?
A: Usually it is 30-50 days after deposit received.
