Product Details:
Payment & Shipping Terms:
|
| Frame: | 850*300(8+7) | Allowable Load Of Rear Axle (T): | 16TSTR Dual Stage |
|---|---|---|---|
| Color: | According To Customer Requirements | Number Of Tires: | 12 |
| Cargo Box Length (mm): | 5200/5400 | Cargo Box Width (mm): | 2300 |
| Engine Model: | WP10.310E40/WP10.336E40 | Fuel Type: | Diesel Fuel |
| Highlight: | Elevated Frame Tipper Dump Truck,F3000 Tipper Dump Truck,2300mm Tipper Dump Truck |
||

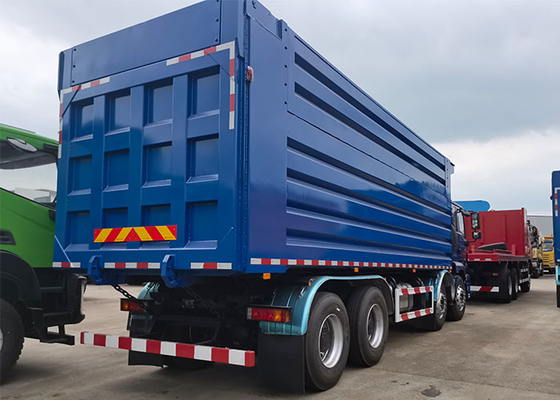

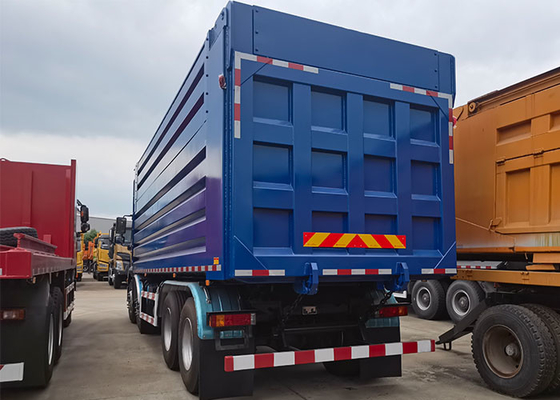

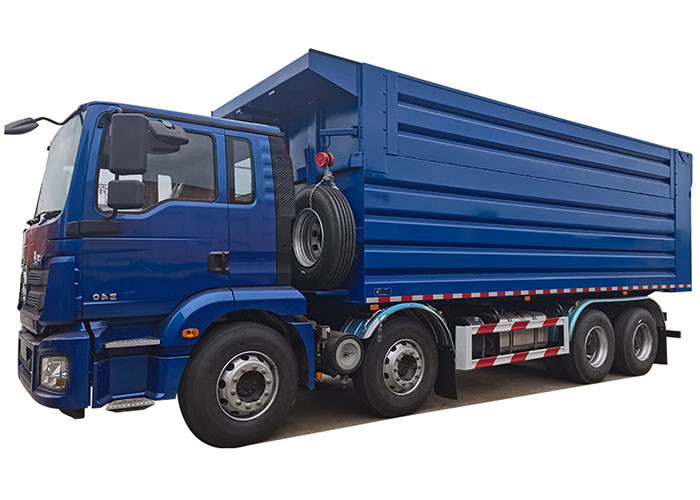

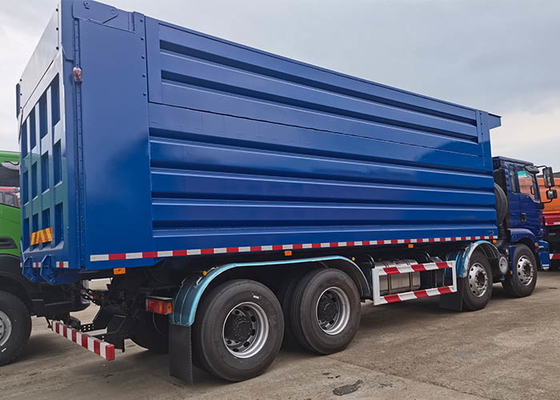

Shacman F3000 Custom 8x4 12 Wheel Elevated Frame Tipper Dump Truck
Tipper Dump Truck Of Product Description:
1. high-duty steel:main beam,side beam and key parts use domestic advanced technology standardlow-alloy and high-strengthsteel.
2. low consumption:light weight cut down fuel use and save transportation cost.
3. high return:reduce self-weight,increace customer's transportation profit.
Tipper Dump Truck Of Product parameters:
| Frame | 850*300(8+7) | ||
| Allowable load of rear axle (T) | 16TSTR dual stage | ||
| Remark | Chinese-made clutch 430 diaphragm type | ||
| Number of tires | 12 | ||
| Tire specifications | 12.00R20 | ||
| Cargo box length (mm) | 5200/5400 | ||
| Cargo box width (mm) | 2300 | ||
| Cargo box height (mm) | 1200;5600/5800 | ||
| engine model | WP10.310E40/WP10.336E40 | ||
| Cylinder arrangement form | Cylinder liner, supercharged and intercooled, electronically controlled pre-mixing, spark plug ignition, lean combustion | ||
| Fuel type | diesel fuel | ||
| Emission Standards | Euro III | ||
| Horsepower (ps) | 380 | ||
| Gearbox | Fast 10JSD140/10JSD160 | ||
| Cab | Electric window shaker, electric air conditioner | ||
| Fuel tank/gas tank capacity | 400(L) |
This kind of dump truck has the advantages as below
1. Suitable for earthwork, gravel, bulk materials,etc.;
2. Dump a certain angle of unloading, high production efficiency;
3. Save Transportation costs;
4. Customized design to meet different customer needs.
Q: Are you Dealer or Factory ?
A: We are the subsidiary factory of Sinotruk and adopt the strict quality control system which the high quality of the truck.
Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok, but we need take apart the truck and you should reinstall in your country.
Q: How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q: I want to be your agent in my country, is that ok?
A: It’s ok, if your quantity is big, we will consider. For the first time 50 units is ok.
Q: How about your company's service, especially after-sale service?
A: SINOTRUK has been in this field for nearly 60 years and has strong production and distribution capability, we can satisfy your demand within 3-7 days. We always do our best to solve all the problems and put our customer's interests in the first place.
Q: What is your payment terms?
A: You can choose to the 30% prepaid and 70% paid before delivery or you can choose the L/C 100% at sight.
Q: What is your lead time?
A: Usually it is 30-50 days after deposit received.
