30tons Skeleton Container Chassis Semi Trailer 20FT 2 Axles 10 Pieces

30tons Skeleton Container Chassis Semi Trailer 20FT 2 Axles 10 Pieces
30tons Skeleton Container Chassis Semi Trailer 20FT 2 Axles 10 Pieces 30tons Skeleton Container Chassis Semi Trailer 20FT 2 Axles 10 Pieces 30tons Skeleton Container Chassis Semi Trailer 20FT 2 Axles 10 Pieces 30tons Skeleton Container Chassis Semi Trailer 20FT 2 Axles 10 Pieces

Large Image :  30tons Skeleton Container Chassis Semi Trailer 20FT 2 Axles 10 Pieces

Product Details:
Place of Origin: China
Brand Name: LSXC
Certification: CCC ISO DOT
Model Number: LSX
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Without packaging or according to customer requirements
Delivery Time: 30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 unit per month
Contact Now
Detailed Product Description
Rated Load (kg): 40000 Tire: 8
Leaf Spring: 10 Pieces Condition: New
Color: According To Customer's Requirements Spare Tire Carrier: 2 Sets
Application: For Transportation Of 2 X 20ft Or 1 X 40ft Containers Support Leg: JOST Brand
Highlight:

30tons Skeleton Container Semi Trailer

,

10 pieces Skeleton Container Semi Trailer

,

Skeleton Container Chassis Semi Trailer

2 Axles 30tons 20FT Skeleton Container Chassis Semi Trailer


Skeleton Container Semi Trailer​ Of Product Description:

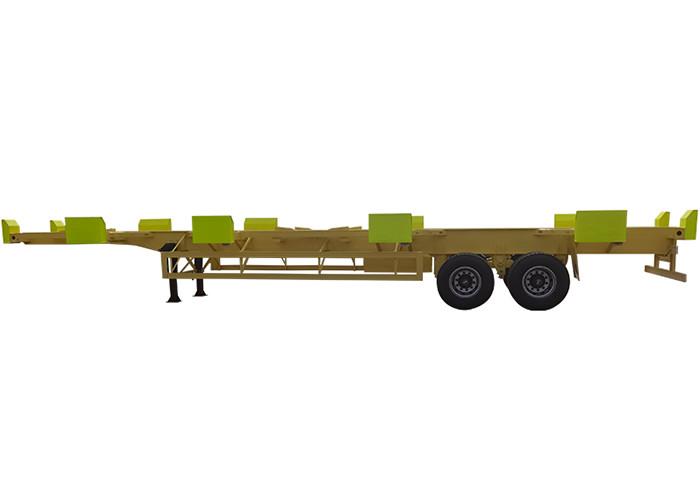

30tons Skeleton Container Chassis Semi Trailer 20FT 2 Axles 10 Pieces 0

Light Tare Weight: Under the premise of the same weight of the box, it can load more goods, to achieve greater economic benefits for you.Low Chasis: Adaptable to varieties of roads. But also the more important aspect - safety! The carring surface is lowed, the center of gravity of the goods is reduced, and the vehicle runs more smoothly, especially in the case of high-speed turning or emergency,the risk can be effectively avoided.


1. Strong chassis specially designed for abroad road condition;

2. Extendable chassis available;

3. Dolly / Drawbar skeleton chassis available;

4. Port using / Terminal container transporter available;

5. Tandem skeleton chassis available;

6. Rear dump skeleton semi trailer available;

7. Side loader available.





Skeleton Container Semi Trailer Of Product Parameters:

Dimension(Optional)
Axle No.
Rated Load (kg)
Tire No.
Tire Size
20ft
2

   40000
8
825R20; 1000R20 1100R20; 1200R20 12R22.5
(Contact US for detailes)
40ft 45ft 48ft 53ft
3
60000
12
40ft 45ft 48ft 53ft
4
75000
16
Leaf Spring
10 pieces
Axle
13 /16 /18 T , FUWA / BPW etc brand
Suspension
Air suspension or mechanical suspension


Main Beam
Material
Q345B manganese plates, automatic submerged arc welded
Upper Plate
14 mm
Lower Plate
16 mm
Middle Plate
8 mm
Height
500-520 mm
Brake System
Dual line braking system with automatic braking system/chambers
King Pin
2' or 3.5'
Landing Gear
28T, JOST
Electrical System
24V, 7 core socket, lights according to European standards.
Tool Box
1 box of standard tools
Spare Tire Carrier
2 sets
Color
According to customer's requirements
Painting
2 coats of Epoxy high rust resistant primer undercoat, 2 coats of acrylic paint
Other Specfications
The frame can be flat plate style and skeleton style . Twist lock settings installed 12 pics, 8 pics , and 4pics to satisfy the
containers with different sizes for convince.
Application
For transportation of 2 x 20ft or 1 x 40ft containers




Skeleton Container Semi Trailer​ Of Details:

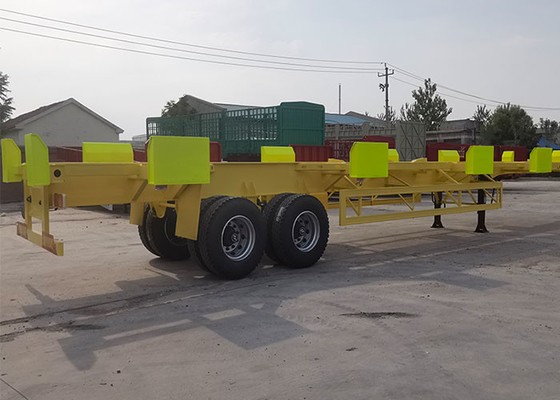

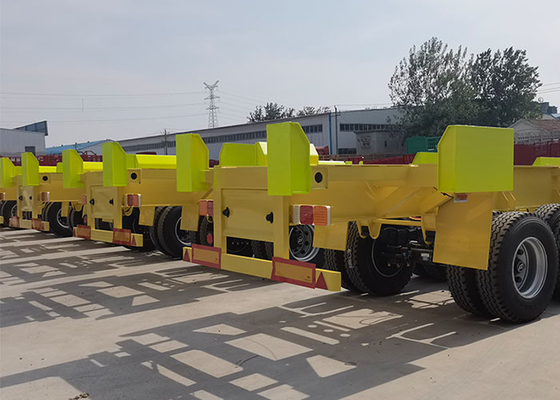

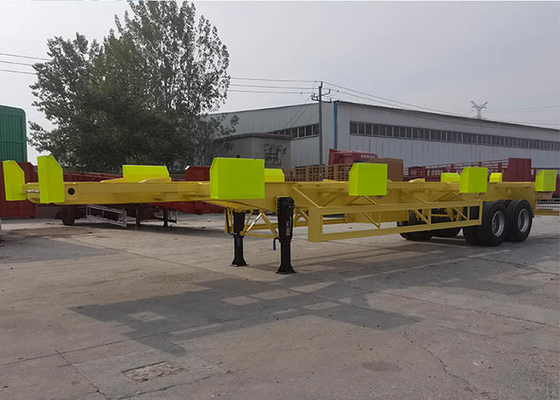

30tons Skeleton Container Chassis Semi Trailer 20FT 2 Axles 10 Pieces 1





Skeleton Container Semi Trailer​ Of Our Advantages:



According to client's speical requests for trailer, we can design full set drawings for clients.

1. The material of trailer frames is high quality and strength steel that can extend the using life of trailer.

2. It has been designed appropriately according with clients requirements, such as dimension, payload, main beam and so on.

3. Brake system and Electric system are well-known brand in the world.

4. Shot blasting twice and particular coat painting can guarantee the quality of trailer surface.

5. All componenet/configuration (OEM parts) can be arranged based on clients detailed requirements and meet clients need.





FAQ:


Q: Are you a manufacturer?
A: Yes, we are a manufacturer. We have passed ISO and CE certificate and our products have been exported to over 20 countries.

Q: Can you produce customizable machines?
A: Yes, we can provide customizable machines according to your requirements. We have 8 senior engineers and can design and supply
higher configuration.



Q: What about your products quality ?
A: Quality is our culture! ”Our factory has advanced production technology and management term.



Q: Can i have samples of this type of flatbed semi trailer to test the quality ?
A: Yes, you can buy any samples to test the quality,our MOQ is 1 unit.

Q: What others we can do ?
A: According to your order, we will provide the best price and quality trucks and trailers.



Q: our raw materials?
A: the ISO system, an international standard for all materials, has certified factories and parts factories.



Q: Our advantages?
A: We have a rich design, production and service team. We have our own customs broker and shipping company that we have cooperated with for many years.
