Large Image :  2axle 20FT Skeleton Container Semi Trailer 40FT Slider Container

Product Details:
Place of Origin: China
Brand Name: LSXC
Certification: CCC ISO DOT
Model Number: LSX
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Without packaging or according to customer requirements
Delivery Time: 30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 unit per month
Contact Now
Detailed Product Description
Rated Load (kg): 40000 Tire Size: 825R20; 1000R20
Leaf Spring: 10 Pieces Brake System: Dual Line Braking System With Automatic Braking System/chambers
Suspension: Air Suspension Or Mechanical Suspension Spare Tire Carrier: 2 Sets
Axle: 13 /16 /18 T , FUWA / BPW Etc Brand Support Leg: JOST Brand
High Light:

Slider Container Skeleton Container Semi Trailer

,

Skeleton Container Semi Trailer 20FT

,

825R20 Skeleton Container Semi Trailer

2axle 20FT 40FT Slider Container Skeleton Container Semi Trailer


Skeleton Container Semi Trailer​ Of Product Description:

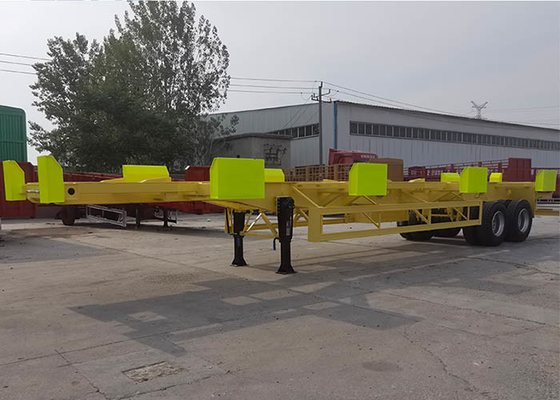

2axle 20FT Skeleton Container Semi Trailer 40FT Slider Container 0


Skeleton semi-trailer, mainly used in the logistics system of ships, ports, routes, highways, transfer stations, bridges, tunnels, and multimodal transport. It is specially used for the transportation of various containers such as 20.40.45.48.53 feet.



20ft container skeleton truck semi trailer is using to transport 20gp containers, the frame is heavy duty and extra durability designed l beam; opting for high tensile steel with T700, welded by automatic submerged-Arc processes. guarantee the quality and stability.





Skeleton Container Semi Trailer Of Product Parameters:

Dimension(Optional)
Axle No.
Rated Load (kg)
Tire No.
Tire Size
20ft
2

   40000
8
825R20; 1000R20 1100R20; 1200R20 12R22.5
(Contact US for detailes)
40ft 45ft 48ft 53ft
3
60000
12
40ft 45ft 48ft 53ft
4
75000
16
Leaf Spring
10 pieces
Axle
13 /16 /18 T , FUWA / BPW etc brand
Suspension
Air suspension or mechanical suspension


Main Beam
Material
Q345B manganese plates, automatic submerged arc welded
Upper Plate
14 mm
Lower Plate
16 mm
Middle Plate
8 mm
Height
500-520 mm
Brake System
Dual line braking system with automatic braking system/chambers
King Pin
2' or 3.5'
Landing Gear
28T, JOST
Electrical System
24V, 7 core socket, lights according to European standards.
Tool Box
1 box of standard tools
Spare Tire Carrier
2 sets
Color
According to customer's requirements
Painting
2 coats of Epoxy high rust resistant primer undercoat, 2 coats of acrylic paint
Other Specfications
The frame can be flat plate style and skeleton style . Twist lock settings installed 12 pics, 8 pics , and 4pics to satisfy the
containers with different sizes for convince.
Application
For transportation of 2 x 20ft or 1 x 40ft containers




Skeleton Container Semi Trailer​ Of Details:

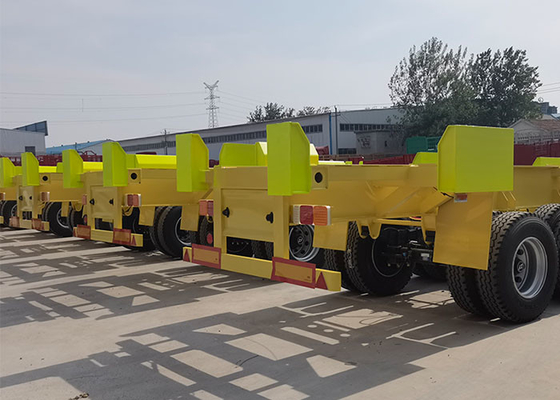

2axle 20FT Skeleton Container Semi Trailer 40FT Slider Container 1





Skeleton Container Semi Trailer​ Of Our Advantages:



1. Extensive usage Fast and efficient. Mainly used for the middle&long-distance transport of the medium&heavy-duty and bulk goods, widely used for variety of the cargoes.

2. The whole vehicle adopts the advanced computer-aided design software to optimize the design,make the Frame reasonable offload&scientific design by FEA( Finite Element Analysis) according to requirement of the vehicle carrying quality.

3. Axles, tires and other supporting parts are all well-known products purchased from domestic and foreign manufacturers.

4. The product quality and reliable, widely used, has become the vehicle of choice for long-distance freight vehicles. The quality of this product is reliable,extensive usage, has become the preferred models of middle&long-distance freight vehicles.





FAQ:


Q: Are you a manufacturer?
A: Yes, we are a manufacturer. We have passed ISO and CE certificate and our products have been exported to over 20 countries.

Q: Can you produce customizable machines?
A: Yes, we can provide customizable machines according to your requirements. We have 8 senior engineers and can design and supply
higher configuration.



Q: What about your products quality ?
A: Quality is our culture! ”Our factory has advanced production technology and management term.



Q: Can i have samples of this type of flatbed semi trailer to test the quality ?
A: Yes, you can buy any samples to test the quality,our MOQ is 1 unit.

Q: What others we can do ?
A: According to your order, we will provide the best price and quality trucks and trailers.



Q: our raw materials?
A: the ISO system, an international standard for all materials, has certified factories and parts factories.



Q: Our advantages?
A: We have a rich design, production and service team. We have our own customs broker and shipping company that we have cooperated with for many years.
