Product Details:
Payment & Shipping Terms:
|
| Dimension: | 10500*2500*3506 Mm | Loading Surface Size: | 8850*2300*1650 Mm |
|---|---|---|---|
| Cylinder: | Haiwo | Tire Number: | 16 Pcs |
| TypeTare Weight: | 12 Tons | Rims: | 16 Pcs (9.0*22.5) |
| Suspension: | 4sets Of The Mechanical Suspension | Cross Beam: | Q345 Channel Steel, 100mm Channel Stell. |
| High Light: | Bulk Cargo Tipper Truck Trailer,Heavy Duty 40Ton Tipper Truck Trailer,4 Axles Cargo Tipper Truck Trailer |
||

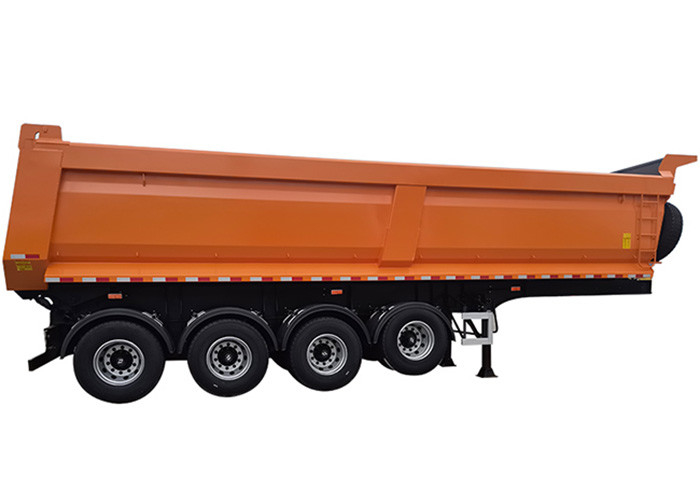

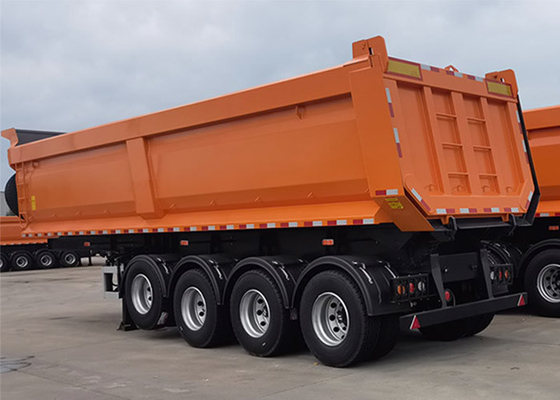

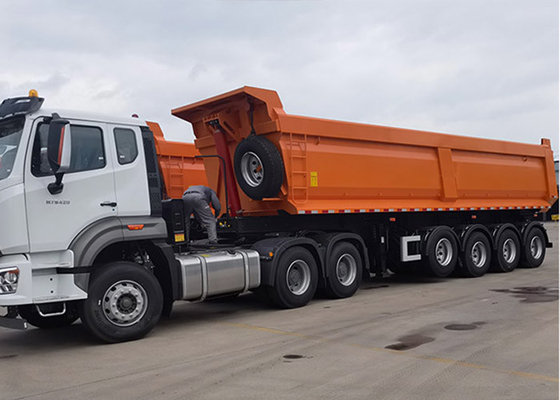

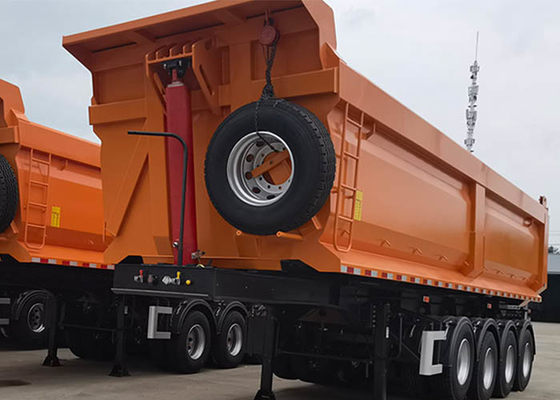

4 Axles Heavy Duty U-Shape 40-80 Ton Bulk Cargo Tipper Truck Trailer
Tipper Truck Tralier Of Product description:
U-shaped dump semi trailer is used to transport of bulk cargo, coal, ore and build materials. The corner of U-shaped box doesn't exist dead ends, unloading more clean; Adopt T700 High strength plates to lower the tare weight; reduce the damage of ore head on the box; U-shaped structure of the lower center of gravity to avoid the goods spilled.We adopt world famous brand of parts, like JOST, WABCO braking valve, etc.
Tipper Truck Tralier Of Product parameters:
| Tare Weight: | About 12 Tons | ||
| Dimension: | 10500*2500*3506 mm | ||
| Loading Surface Size: | 8850*2300*1650 mm | ||
| Loading Capacity: | 76 Tons | ||
| Axle: | 4*13Ton(1840mm); FUWA Brand, Front axle lift suspension | ||
| Rim: | 16 pcs (9.0*22.5) | ||
| Tire: | 16 pcs (11R22.5); Chinese Brand | ||
| Suspension: | 4sets of the Mechanical suspension | ||
| Spring leaf: | 90mm*13mm*10pcs-8sets | ||
| King pin: | 2.0 or 3.5inch Bolts type or Welding type | ||
| Support leg: | 28Tons | ||
| Main Beam: | high-tensile steel Q345B, welded by automatic submerged-arc processes.Main frame is height 500mm, width:140mm; Upper Plate:16mm; Down Plate:18mm, Middle Plate: 10mm; | ||
| Cross Beam: | Q345 Channel Steel, 100mm Channel Stell. | ||
| Cargo Box: | Q345B Manganese plate, Side wall: 6mm, Bottom Plate:7mm; | ||
| Frame : | T700 high strength steel | ||
| Oil Cylindner: | Domestic Hywar Oil Cylinder | ||
| Braking System: | Double Line; T30/30 + T30 spring brake chamber(6pcs), 40L air tanks(2pcs); | ||
| Valve: | KANGJIAN valve | ||
| Electrical System: | glad-hand, 24V coupler, rear lamp, side lamp, 7-pin coil wireless, LED lights; | ||
| rain tarpaulin: | with rain tarpaulin | ||
| Accesssories: | one standard tool box and one set of spare tire carrier. | ||
| Painting: | Sand blasting before painting; One coats of primer, anti corrosion Two coat of finish painting; Colour painting -Optional. |
||
