| Landing Gear: | 28 Tons | Front Axle Lifting: | 1/2/3/4 Axle Optional |
|---|---|---|---|
| Spare Tyre Carrier: | One Piece Or Two Pieces | Voltage: | 24v |
| Upper: | 16mm | Middle Web: | 10mm(Optional) |
| Lower: | 18mm | Color: | As Buyer |
| High Light: | Carbon Steel Tipper Truck Trailer,4 Axle Tipper Truck Trailer,16mm Tipper Truck Trailer |
||

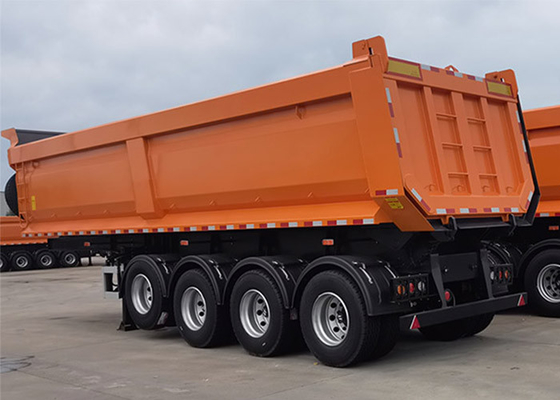

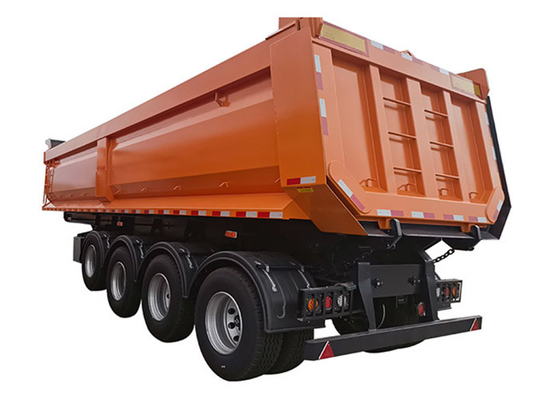

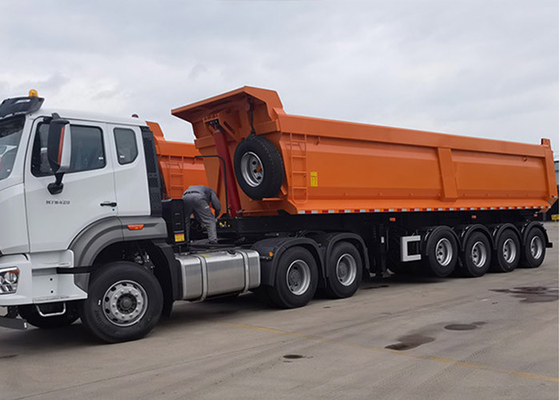

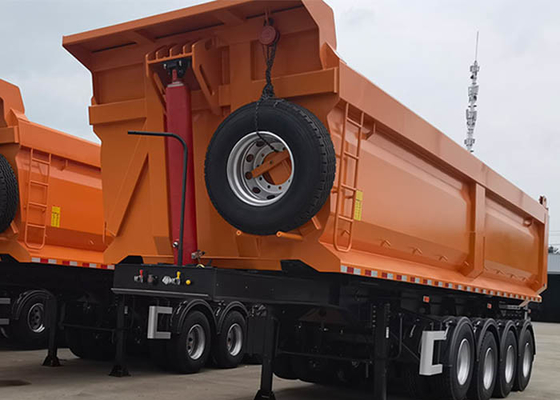

Heavy Load 4-Axles Carbon Steel U Type Tipper Truck Trailer
Tipper Truck Tralier Of Product description:
Mainly used for logistics systems supporting mines, routes, highways, transfer stations, bridges, tunnels, and multimodal transport.
1. It is specially used for the transportation of various engineering constructions. It can be used repeatedly for a long time with sufficient strength.
2. It can be quickly loaded and unloaded, and can be directly and conveniently changed from one means of transport to another.
3. It is convenient to load and unload goods to meet the individual needs of customers. According to customer needs, to ensure stable and reliable tooling, quality.
Tipper Truck Tralier Of Product parameters:
| Total height | 3000mm -3500mm |
| Height of breast board | 1800mm-2500mm |
| Dimensions(LxWxH) | 6500 to 17500mm x 2500mm-2550 x 1500mm-4000mm |
| Cylinder | Haiwo brand |
| Axle and Brand | 13T/16T/18T Leitewei , (2/4 axle,fuhua/BPW to choose) |
| Tire brand | 12r22.5 (Chengshan, Zhaoyang and other 3-Pack tires) |
| Axle spacing | 1310mm |
| Tare weight | 4tons to 12 tons |
| Rims | 8.5-20, 9.0-20 |
| Brake System | Double line pneumatic braking system with WABCO emergency relay valve |
| Front axle lifting | 1/2/3/4 axle Optional |
| Plate spring | Ten pieces 13mm(widen) |
| Suspension System | Heavy machinery suspension / air suspension |
| Main Beam | Height 500mm Q345 carbon steel,thickness 10mm(height 530 550 580 Optional) |
| Up and down the wing | Upper16mm,lower18mm ,Middle web10mm(Optional) |
| Kingpin | 2' or 3.5' interchangeable,(50.mm-90mm interchangeable) |
| Landing Gear | 28 Tons ,Two speed manual (Yost or fuhua Can be choose) |
| Electrical System | 1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard |
| Lights and Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light |
| Painting | Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available |
| Tool Box | One tool box with a set of standard trailer tools |
| Spare Tyre Carrier | One piece or two pieces |
| Packing | Polish with wax before shipping |
| Color | All colors can be customized |
