Product Details:
Payment & Shipping Terms:
|
| Support Leg: | 28Tons | Loading Surface Size: | 8850*2300*1650 Mm |
|---|---|---|---|
| Dimension: | 10500*2500*3506 Mm | Loading Capacity: | 76 Tons |
| King Pin: | 2.0 Or 3.5inch Bolts Type Or Welding Type | Cross Beam: | Q345 Channel Steel, 100mm Channel Stell. |
| Frame: | T700 High Strength Steel | Accesssories: | One Standard Tool Box And One Set Of Spare Tire Carrier. |
| High Light: | Hydraulic Tipper Truck Trailer,70 Tons Tipper Truck Trailer,U Shape 28Tons Tipper Truck Trailer |
||

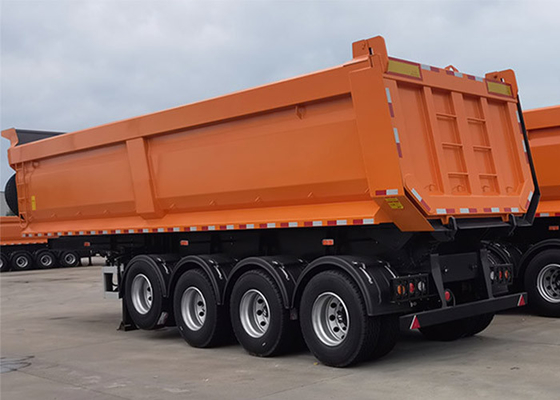

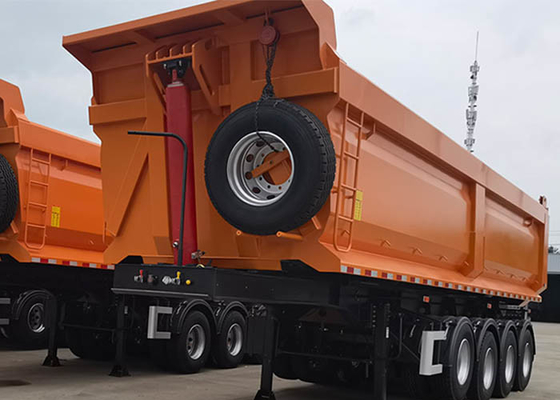

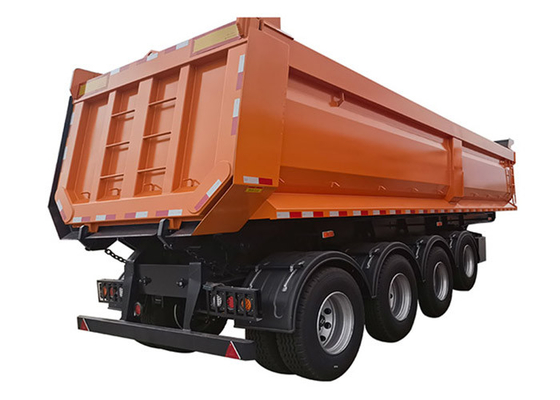

70 Tons U Shape Type 16 Tires Truck Box Hydraulic Tipper Truck Trailer
Tipper Truck Tralier Of Product description:
1. 20 years International Trailer Engineer Team Experiences
2. 1 Years main beam warrranty
3. Standard design
4. Provide after sales service to clients
Main Features:
1. Torsion - resistan of side beam and Main Beam are with "I" high strengh steel. more durable than normal trailer steel , ensure low bed trailer driving stability and handle bed roads.
2. Heavy duty type box: U shape,Square box shape,manganese plate butt welding, This design that ensure the support the heavy duty marchine safely.
3. Stability when loading heavy duty marchine. The QUEST dump trailer with HYVA hyraulic cylinder can equipped with extra legs on the rear of trailer. This ensures loading machines more safety.
Tipper Truck Tralier Of Product parameters:
| Tare Weight: | About 12 Tons | ||
| Dimension: | 10500*2500*3506 mm | ||
| Loading Surface Size: | 8850*2300*1650 mm | ||
| Loading Capacity: | 76 Tons | ||
| Axle: | 4*13Ton(1840mm); FUWA Brand, Front axle lift suspension | ||
| Rim: | 16 pcs (9.0*22.5) | ||
| Tire: | 16 pcs (11R22.5); Chinese Brand | ||
| Suspension: | 4sets of the Mechanical suspension | ||
| Spring leaf: | 90mm*13mm*10pcs-8sets | ||
| King pin: | 2.0 or 3.5inch Bolts type or Welding type | ||
| Support leg: | 28Tons | ||
| Main Beam: | high-tensile steel Q345B, welded by automatic submerged-arc processes.Main frame is height 500mm, width:140mm; Upper Plate:16mm; Down Plate:18mm, Middle Plate: 10mm; | ||
| Cross Beam: | Q345 Channel Steel, 100mm Channel Stell. | ||
| Cargo Box: | Q345B Manganese plate, Side wall: 6mm, Bottom Plate:7mm; | ||
| Frame : | T700 high strength steel | ||
| Oil Cylindner: | Domestic Hywar Oil Cylinder | ||
| Braking System: | Double Line; T30/30 + T30 spring brake chamber(6pcs), 40L air tanks(2pcs); | ||
| Valve: | KANGJIAN valve | ||
| Electrical System: | glad-hand, 24V coupler, rear lamp, side lamp, 7-pin coil wireless, LED lights; | ||
| rain tarpaulin: | with rain tarpaulin | ||
| Accesssories: | one standard tool box and one set of spare tire carrier. | ||
| Painting: | Sand blasting before painting; One coats of primer, anti corrosion Two coat of finish painting; Colour painting -Optional. |
||
1. What is your MOQ?
A:One unit.
2. Can you meet my special requirements?
A:Sure! We are a direct manufacturer, we have strong production capacity and research and development capabilities!
3. How is the quality of your products?
A:High quality has always been our advantage. We all use high-quality branded materials with 100% quality assurance. A procedure is established to inspect products, raw materials, process materials, finished materials that have been verified or tested, etc.at all stages of the manufacturing process.
4. How can I get the price of your vehicle?
A:You can contact us through any of the following contact methods. Our personalized service staff will reply you within 24 hours.
5. Is it possible to print our own brand on the vehicle?
A:It's totally acceptable.
6. What is the delivery time?
A:The delivery time is within 30-50 working days after receiving your prepayment.
