Product Details:
Payment & Shipping Terms:
|
| Drive Form: | 6X4 | Wheelbase (mm): | 3225+1350 |
|---|---|---|---|
| Number Of Tires: | 10 | Min.Ground Clearance (mm): | 314 |
| Gradeability (%): | ≥50 | Tire: | 12.00R20 |
| Orsepower: | 371hp | Fuel Type: | Diesel |
| High Light: | LHD/Rhd,6X4 30t Tipper Dump Truck,HOWO Tipper Dump Truck Sinotruk |
||

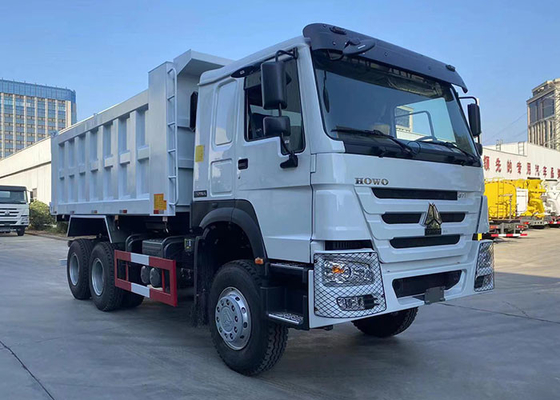

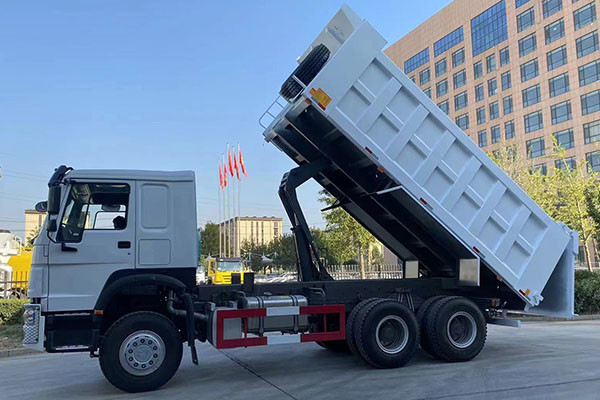

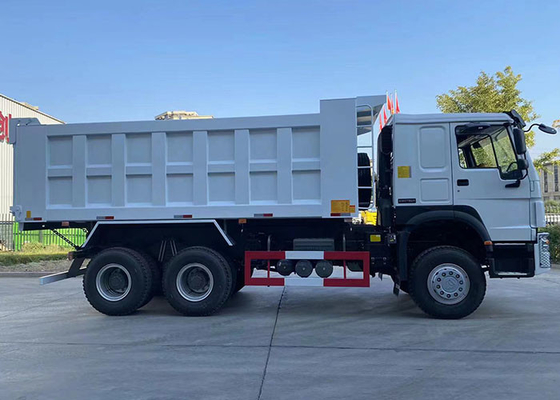

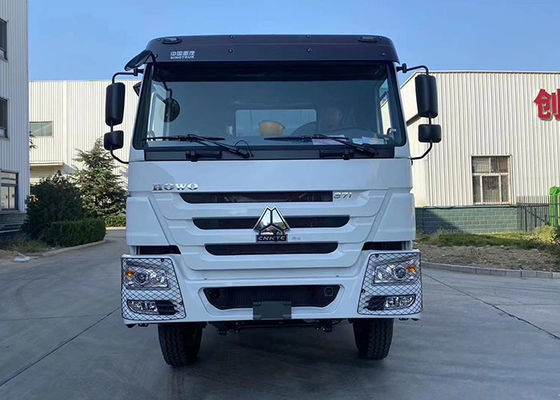

Sinotruk HOWO LHD/Rhd 10 Wheel 6X4 Tipper Dump Truck 30t-40t Dump Truck
Tipper Dump Truck Of Product Description:
1. Dump truck is also called dumper truck, tipper truck, dump truck tipper, tipper etc.
2. The dump trucks adopts is consisted of dump truck chassis, tipping box, hydraulic cylinder for dump truck. The dump truck is mainly used for transport sands, stone, gravels, etc. As a dump truck supplier, the dump truck for sale are 4x2 dump truck, 6x4 dump truck, 8x4 dump truck etc.
Tipper Dump Truck Of Product parameters:
| Sinotruk HOWO 6x4 Dump Truck | |
| Chassis Model | ZZ3257M327W (Left/ Right Hand Driving Type Optional) |
| Engine | Model: WD615.47, Euro 2, 371 HP 6-cylinder in-line with water cooling, turbo-charging and intercooling Displacement: 9.726 L |
| Clutch | Single-plate dry diaphragm spring clutch,diameter430mm,hydraulically operating with air assistance |
| Gearbox | SINOTRUK BRAND, manual operation, HW19710, 10 forward and 2 reverse, with Power Take-Off (PTO) |
| Front Axles | HF9, 9000kg with drum brake system |
| Rear Axles | HC16, 2X16000kg, double stage reduction (central+ hub), cast axle housing, ratio: 5.73 |
| Suspension | Front suspension: 10 pcs leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer |
| Rear suspension: 12 pcs leaf springs with bogie spring and stabilizer | |
| Steering System | famous brand power steering, model ZF8118 , hydraulic steering with power assistance |
| Braking System | Front drum rear drum brake, four-circuit protection valve Service brake: dual circuit compressed air brake Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake (optional): engine exhaust brake(EVB), antilock brake system (ABS), automatic brake gap adjustment arms |
| Tires | 12.00R20 (12.00-20, 315/80R22.5 optional), with one spare tyre |
| Fuel Tank Volume (L) | 300 |
| Dead Weight | 12020/8630 |
| Gross Vehicle Weight (kg) | 25000 |
| Rated Loading Weight (kg) | 12850; 12640 optional |
| Overall Dimension (LxWxH) (mm) |
7545x2550x3400 |
| Wheelbase (mm) | 3225+1350 |
| Min.Ground Clearance (mm) | 314 |
| Approach/Depart Angle(°) | 19/ (27/65) |
| Gradeability (%) | ≥50 |
| Min. Turning Diameter (m) | 15 |
| Cargo Body Size (LxWxH) (mm) | 4800x2300x1200 |
| Cargo Body Volume (m3) | 13.25 |
| Remark (Engine Power Option) | 336HP; 371HP |
Q: Are you Dealer or Factory ?
A: We are the subsidiary factory of Sinotruk and adopt the strict quality control system which the high quality of the truck.
Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok, but we need take apart the truck and you should reinstall in your country.
Q: How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q: I want to be your agent in my country, is that ok?
A: It’s ok, if your quantity is big, we will consider. For the first time 50 units is ok.
Q: How about your company's service, especially after-sale service?
A: SINOTRUK has been in this field for nearly 60 years and has strong production and distribution capability, we can satisfy your demand within 3-7 days. We always do our best to solve all the problems and put our customer's interests in the first place.
Q: What is your payment terms?
A: You can choose to the 30% prepaid and 70% paid before delivery or you can choose the L/C 100% at sight.
Q: What is your lead time?
A: Usually it is 30-50 days after deposit received.
