| Dimension(Lx W XH): | 8545x2496x3386 | Cargo Body Size (L*W*H, Mm): | 5800x2300x1400 |
|---|---|---|---|
| Number Of Tires: | 10 | Min.Ground Clearance (mm): | 314 |
| Gradeability (%): | ≥50 | Tire: | 12.00R20 |
| Orsepower: | 371hp | Emission Standard: | EURO II |
| High Light: | Sinotruk Heavy Duty Tipper Dump Truck,HOWO 6X4 Tipper Dump Truck,10 Wheels Tipper Dump Truck |
||

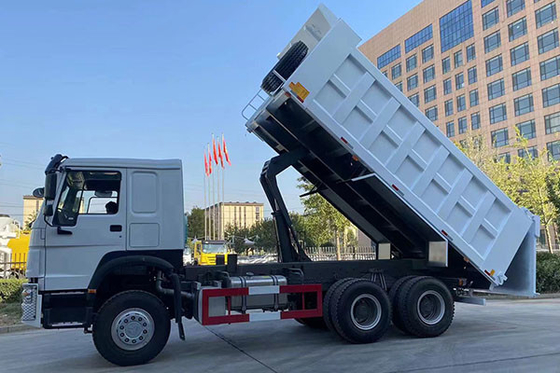

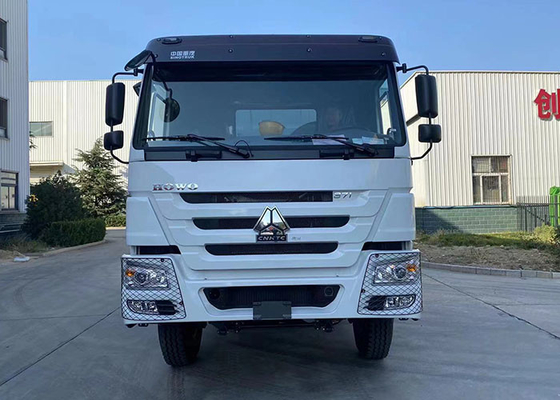

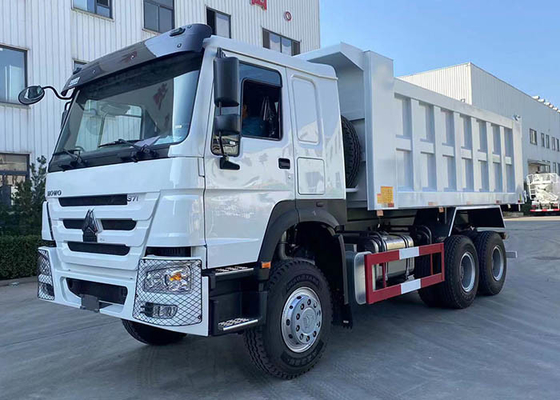

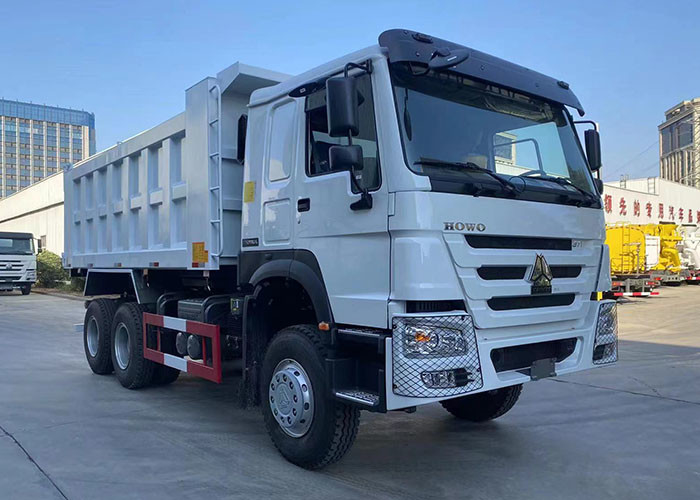

Sinotruk Heavy Duty Truck HOWO New 6X4 10 Wheels 371HP Tipper Dump Truck
Tipper Dump Truck Of Product Description:
Our main products include full series products of CNHTC(HOWO,STR,Golden Prince,etc.),buses, trailers, including dump truck, tractor truck, concrete mixer truck, sprinkler truck,water/Oil tank truck, truck mounted crane, concrete pump truck.etc, low bed semi-trailer,flatbed semi-trailer, bulk cement semi-trailer, skeleton semi-trailer and spare parts for them.
Tipper Dump Truck Of Product parameters:
| Truck Brand | SINOTRUK -HOWO | ||
| Dimension(Lx W xH) | 8545x2496x3386 | ||
| Cargo body size (L*W*H, mm) | 5800x2300x1400 | ||
| Cargo body thickness(mm) | bottom:8mm, side:6mm, or customized as you required | ||
| Lift type of Carriage | Ventral lifting or front tipping | ||
| Approaching angle/Departure angle(°) | 19/26 | ||
| Overhang(front/rear) (mm) | 1500/1739 | ||
| Wheel base (mm) | 3625+1350 | ||
| Max speed(km/h) | 75 | ||
| Curb weight(kg) | 12290 | ||
| Loading Weight(kg) | 25000 | ||
| Fuel Tanker | 300L with locking fuel cap | ||
| Fuel consumption(L/100km) | 32 | ||
| Clutch | Single-plate dry clutch Φ430mm | ||
| Engine | Model |
WD615.47,4- stroke direct injection diesel engine, 6 cylinders in line with water cooling , |
|
| Horse Power, | 371HP | ||
| Emission Standard | EURO II | ||
| Transmission | Model | HW 19710,10 forwards and 2 reverse | |
| Brake system | Service brake | Dual circuit compressed air brake | |
| Parking brake |
spring energy, compressed air operating on rear wheels |
||
| Auxiliary brake | Engine exhaust brake | ||
| Steering system | Model | ZF8098/ZF8118 hydraulic steering with power assistance | |
| Front axle | HF9 | ||
| Rear axle | HC16 | ||
| Tire | 12.00R20, 12.00-20 | ||
| Electrical system | Operating voltage | 24V,negative grounded | |
| Starter | 24V,7.35KW | ||
| Alternator | 28V,1500W | ||
| Batteries | 2*12V.165Ah | ||
Q: Are you Dealer or Factory ?
A: We are the subsidiary factory of Sinotruk and adopt the strict quality control system which the high quality of the truck.
Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok, but we need take apart the truck and you should reinstall in your country.
Q: How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q: I want to be your agent in my country, is that ok?
A: It’s ok, if your quantity is big, we will consider. For the first time 50 units is ok.
Q: How about your company's service, especially after-sale service?
A: SINOTRUK has been in this field for nearly 60 years and has strong production and distribution capability, we can satisfy your demand within 3-7 days. We always do our best to solve all the problems and put our customer's interests in the first place.
Q: What is your payment terms?
A: You can choose to the 30% prepaid and 70% paid before delivery or you can choose the L/C 100% at sight.
Q: What is your lead time?
A: Usually it is 30-50 days after deposit received.
