Product Details:
Payment & Shipping Terms:
|
| Certification: | ISO9001 | Design Temperature: | -40 ~ +130 ℃ |
|---|---|---|---|
| Design Pressure: | 0.175Mpa | Working Pressure: | 0.09Mpa |
| Design Approvals: | IMDG , CFR 49, ADR/RID, CSC, TC, TIR, ISO, UIC, US DOT | Warranty: | 1 Year |
| Capacity: | 40000 | Warranty Of Core Components: | 1 Year |
| Shell Material: | 316L/SAN50028-7/WNr 1.4402/1.440 | Internal Dimensions(l X W X H)(mm): | 12030*2330*2330 |
| High Light: | 40 Feet Cryogenic Liquid Tank,Cryogenic Liquid Tank 45000 Liter,45000 Liter 20 Ft Iso Tank Container |
||

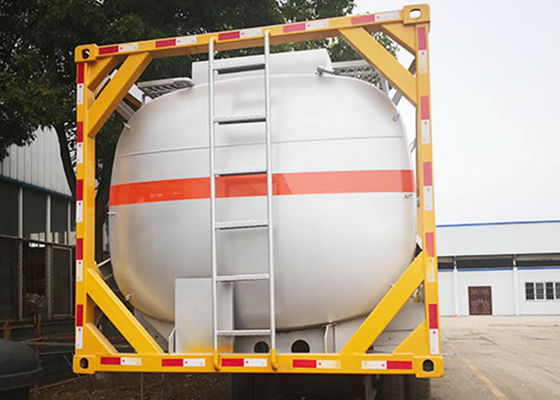

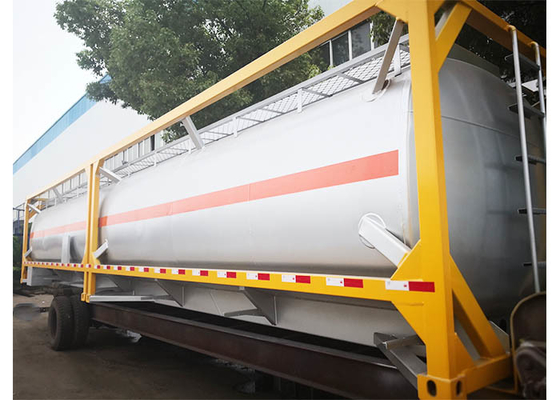

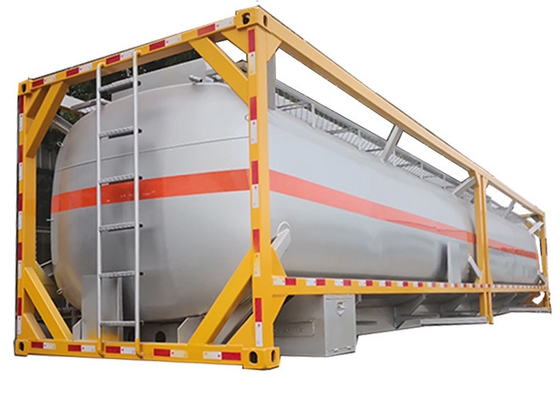

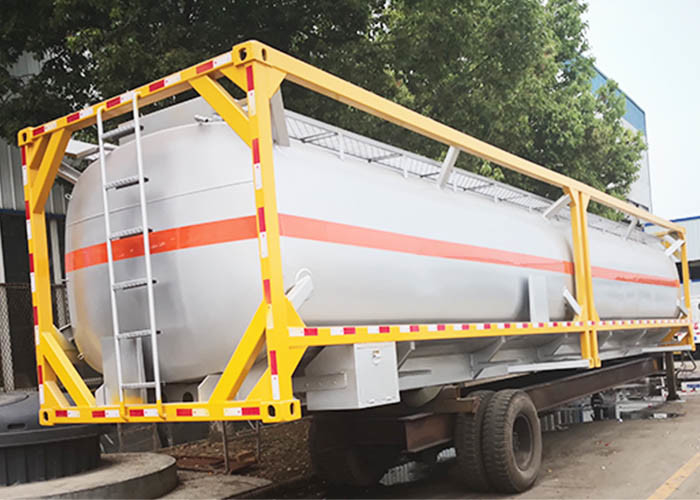

ISO 40 Feet Tank Container 45000 Liter capacity for transporting chemical liquids
ISO container tank:
1. Stainless steel tank container is suitable for edible oil, fruit juice,beverage, medicine, chemical industry
and other industries.
2. We manufacture tank containers for petroleum, chemical and water transportation. Our products
include carbon
Steel, stainless steel.
3. We provide a full range of oil tanks, including: gasoline and diesel tanks, drinking water tanks and
various customized oil tank containers to meet your specific requirements.
4. We provide T75 and T50 gas tank containers.
parameter:
| Item | 40 Feet Tank Container | |
| Outer dimensions(mm) | 12192×2438×2438 | |
| Working temperature(°C) | 12-28 | |
| Insulating performance | Design according to user’s requirement | |
| Water testing pressure(Mpa) | 0.6 | 0.9 |
| Insulating materials and thickness(mm) | Design according to user’s requirement | |
| Heating way | Design according to user’s requirement | |
| Capacity(m3) | 40m3 According to users requirement | |
| Host materials | Carbon steel Q235B | |
| Thickness of shell materials(mm) | 6 | |
| Thickness of Seal Head materials(mm) | 8 | |
| Corner post materials | Q235 | |
| Manhole cover, Breather valve, Foot valve | Domestic made or imported | |
Product details:
Certificate:
Henan Lishixin Logistics Equipment Co., Ltd is located in Zhengzhou FTA, Henan Province, China, with a
registered capital of 3, 500, 000USD. Lishixin is specialized in the R & D, mass production and sales of kinds
of the 20FT, 30FT, 40FT ISO Storage Tank Containers and Storage Tanks as well as other special logistic
Transportation equipments. Based on rich transportation advantages and resource of Central China, Lishixin
is committed to supply high quality and cost-effective transportation equipment for clients all over the world.
Main Products:
ISO storage tank containers(Liquid tank containers,Powder Tank containers, Cryogenic tank containers,
CNG Tank Container, Cryogenic Liquid Gas Storage Tanks), Cryogenic Tank Semi Trailer etc. Other logistic
transportation equipments.
International Market:
Annual production capacity 8000units of the Tank Containers,and the annual total sales 3500units, Of which,
we have exported more than 800units Tank containers, Cryogenic Tank Semi Trailer to more 25 countries
around the world, including Mexico, Columbia, Chile, Peru, Honduras, South African, Nigeria, Egypt, Algeria,
Saudi Arabia, Turkey, Pakistan,Myanmar, Uzbekistan, Russia, Ukraine, Philippines,Indonesia, Malaysia,
Bangladesh, etc. What's more, we have established long-term semitrailer&tanks supply contracts with more
than 10 famous transportation&other type of the enterprises in the world.
CRYOGENIC TANKS:
Storage tank is for liquefied gas under pressure, at cryogenic temperatures, for products, such as LNG, N2,
O2, Ar, CO2.
They consist of two vessels, one inside the other, with robust thermal insulation in the chamber between them.
They are built in
both a vertical (with legs or skirting ) and horizontal version(with support cradles and anchoring to the ground).
Design
According to ASME, GB150, GBstandards.
Inner pressure vessel
A vessel usually made of stainless steel or other materials that have favorable strength characteristics when
exposed to cryogenic temperatures.
Insulation
Heat insulation is provided by a filling in the chamber between the two vessels using insulating material and
a high vacuum. It includes absorbent material for greater vacuum stability. The effective thermal insulation
minimizes product losses and enables lengthy storage times of low temperature liquefied gases.
Outer vessel
A vessel made of carbon steel or stainless steel. Under normal operating conditions, this vessel retains the
insulation around the inner pressure vessel, and can also maintain a vacuum around the inner vessel. Typically,
the outer vessel is not exposed to cryogenic temperature.
FAQ:
1. who are we?
We are based in Henan, China, start from 2015,sell to Africa(50.00%),Southeast Asia(30.00%),South
America(15.00%),North America(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Tank Container,Container Trailer,Tank Semi Trailer,Concrete Mixer Truck,Special Truck
4. why should you buy from us not from other suppliers?
International Market: Jushixin is a export-oriented company, most of our products are designed for
worldwide use. Till now, we have exported more than 650 semi trailers and trucks to more 25 countries .
QA /QC: Jushixin has established sound QA /QC system
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,
Hindi,Italian
Contact Person: Amanda zhang
Tel: +8617760771335
Fax: 86-371-55980820
