Product Details:
Payment & Shipping Terms:
|
| Certification: | ISO9001 | Warranty: | 1 Year |
|---|---|---|---|
| M.G.W.: | 30,480 Kgs | ||
| High Light: | Liquid Tank Container 20ft,Helium ISO Container Liquid,Liquid Tank Container T62 |
||
Best price custom helium asphalt iso tank cement container
asphalt tank container:
1. Asphalt ISO tank container mainly used for transportation and storage of asphalt products, widely used in asphalt factory & Road Bureau as well as Shipping Company.
2. Asphalt ISO tank container is a pressure vessel mounted in a frame. Frame dimensions comply with the recommendations of the International Standards Organization (ISO). The unit is designed and constructed in accordance with strict international codes for the worldwide carriage of bulk liquids on land, rail and sea.
parameter:
| High Quality ISO Asphalt Tank Container On Sale | ||
| Model NO | T62 | |
| Medium | Bitumen, asphalt | |
| Compartment | 1(one) | |
| Loading& discharge | Top loading,bottom discharge | |
| Working temperature(℃) | -20℃-230℃ | |
| Water testing pressure(MPa) | 0.6 | 0.9 |
| Volume(m3) | 20m3/40m3 | |
| Main materials | carbon steel | |
| Tank Thickness | 5mm | |
| Tank container dimensions (mm) |
6096*2438*2491(20ft) 12192*2438*2491(40ft) |
|
| Corner post materials | 16Mn | |
| Manhole cover | Factory standard | |
| Weight |
≤ 5tons ≤ 7tons |
|
| Paingting | Impeller blasting, Color and logo as your requirements | |
We can provide you with a complete set of service from quota, design, manufacture and installation, according to your requirements we can design by your plan, or manufacture by your drawing, guarantees inner quality and safety, good looking appearance and function by introducing
international advanced large-sized equipment of pulse plasma arc welder and auto polishing machines and cooperating with international famous finished equipment making company.More detailed information will available on your requirement.we all have mature solutions at any time.

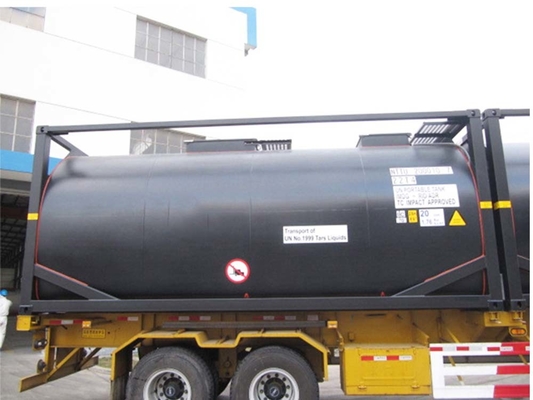

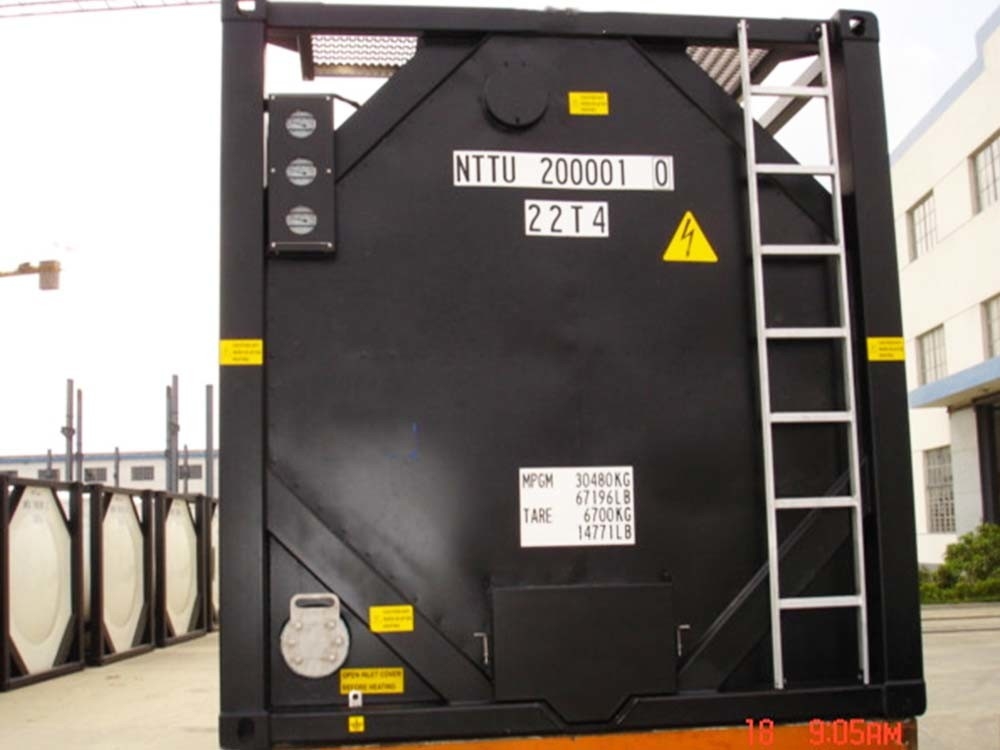

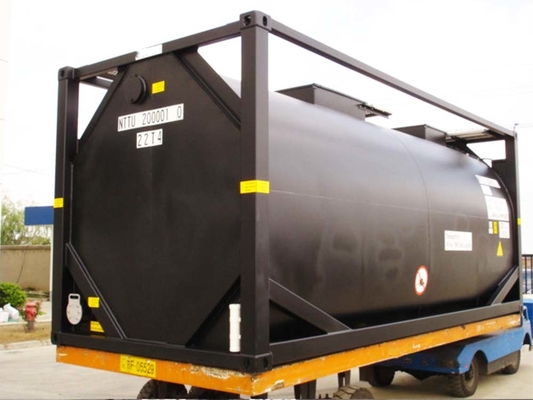

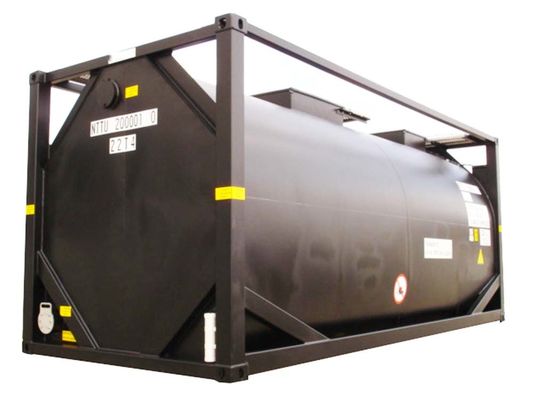

Product pictures:
Product details:
FAQ:
1.Q: What is the MOQ?
A: One unit is OK, please contact for details.
2.Q: Delivery time?
A: Generally 90 to 120 days, sometimes we have stock. Please contact for details.
3.Q: What certification do you have?
A: We are authorized by CCS, LR, BV.
4.Q: What documents do you offer?
A: We offer product quality certification issued by the manufacture, tank drawing, GA drawing, operation instructions and calculation sheet etc for each tank, ceritificate of shipping, such as LR, CCS, BV inspection.
5.Q: How about the warranty rules
A: Quality warranty period for the tank containers is 12 months from the date of delivery. Vacuum warranty period is three years (including the problems caused by the tank, the vacuum valves, and vacuum gauge tube, but not including artificial damage). If it is The supplier has a charge of maintaining tank containers for lifelong beyond the warranty period, the expenses shall be borne by the buyer (after-sales service in If only the quality problems are caused by the buyer operating tank containers in wrong way ( Including not according to the product specification, and requires of the contract, etc.) or other artificial damages, the problems are not in the warranty scope and Free "3 packets" service, the buyer shall pay for the corresponding costs of maintenan Ce.
6.Q: Specific technical service issues for other classes.
A: Please contact us, we will provide professional and detailed answers.
