Product Details:
Payment & Shipping Terms:
|
| Certification: | ISO9001 | Warranty: | 1 Year |
|---|---|---|---|
| M.G.W.: | 30,480 Kgs | ||
| High Light: | 21000 Liters Water Tank Container,Water Tank Container T3,T3 Asphalt ISO Tank Container |
||
China Factory 20000-25000 Liters Of Cheapest 20 ft T3 UN Portable Insulated Asphalt ISO Tank Container With ASME Standard
asphalt tank container:
1. Asphalt ISO tank container mainly used for transportation and storage of asphalt products, widely used in asphalt factory & Road Bureau as well as Shipping Company.
2. Asphalt ISO tank container is a pressure vessel mounted in a frame. Frame dimensions comply with the recommendations of the International Standards Organization (ISO). The unit is designed and constructed in accordance with strict international codes for the worldwide carriage of bulk liquids on land, rail and sea.
parameter:
|
New 20ft Biutmen Tank
|
||
|
Frame Dimension
|
20'*8'*8'6in (L*W*H)
|
|
|
Capacity
|
20,000 Litres +/- 2%
|
|
|
M.G.W.
|
30,480 kgs
|
|
|
Tare Weight
|
6,700 kgs
|
|
|
Max Payload
|
23,780 kgs
|
|
|
Working Pressure
|
1.76 Bar
|
|
|
Test Pressure
|
2.65 Bar
|
|
|
Allowable Vacuum
|
0.21 Bar
|
|
|
Design Temp:
|
-20°C to +230°C
|
|
|
Vessel Material:
|
16MnDR
|
|
|
Shell Thickness:
|
6 mm
|
|
|
Ends Thickness:
|
6 mm after forming
|
|
|
Corrosion Allowance
|
1 mm (Max.)
|
|
|
Frame Material:
|
GB/T 1591-Q345D
|
|
|
Frame to Shell:
|
Q345D
|
|
|
Corner castings:
|
ISO 1161 - 8 off
|
|
|
Vessel Design Code
|
ASME VIII
|
|
We can provide you with a complete set of service from quota, design, manufacture and installation, according to your requirements we can design by your plan, or manufacture by your drawing, guarantees inner quality and safety, good looking appearance and function by introducing
international advanced large-sized equipment of pulse plasma arc welder and auto polishing machines and cooperating with international famous finished equipment making company.More detailed information will available on your requirement.we all have mature solutions at any time.

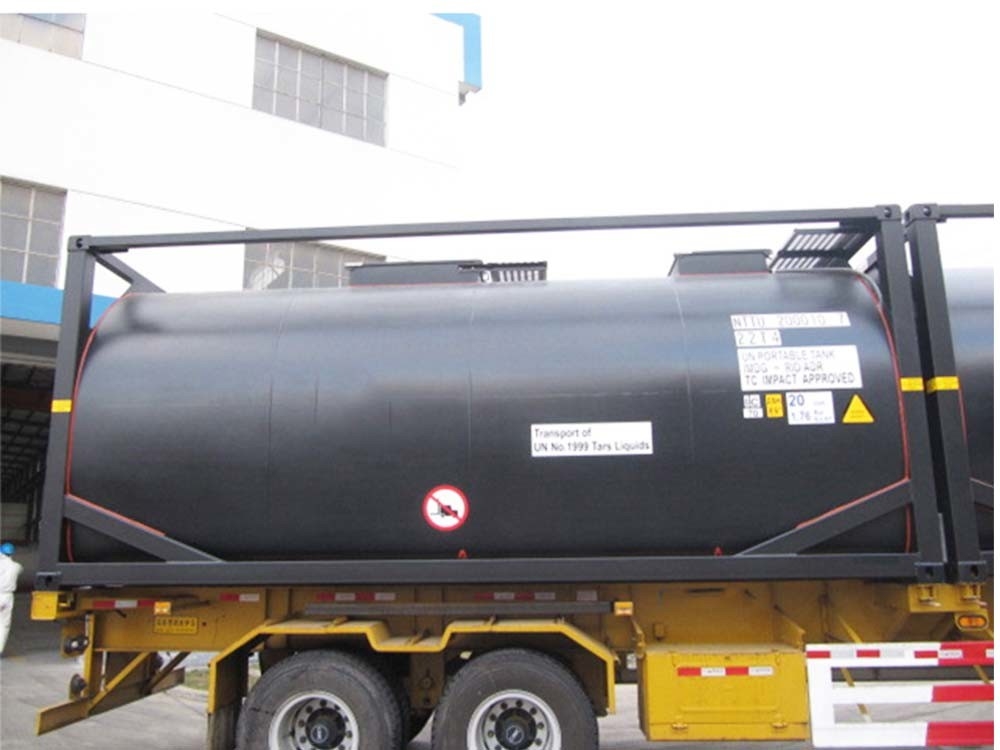

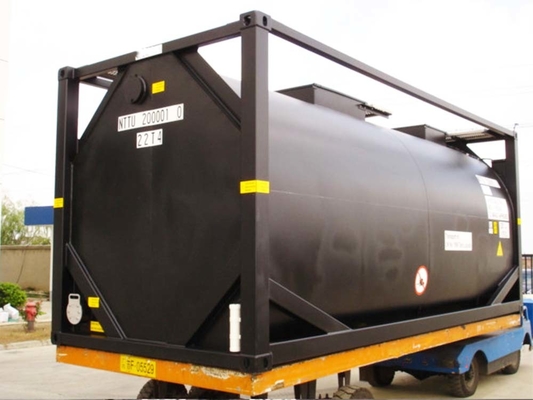

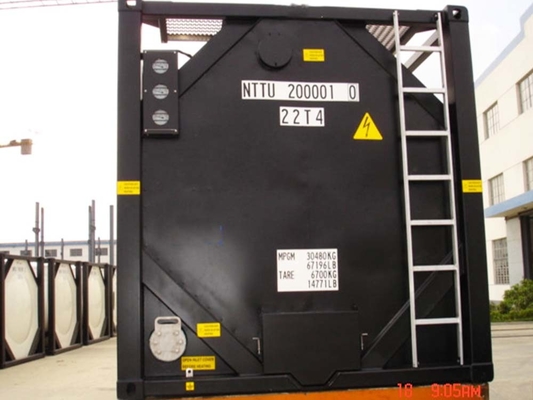

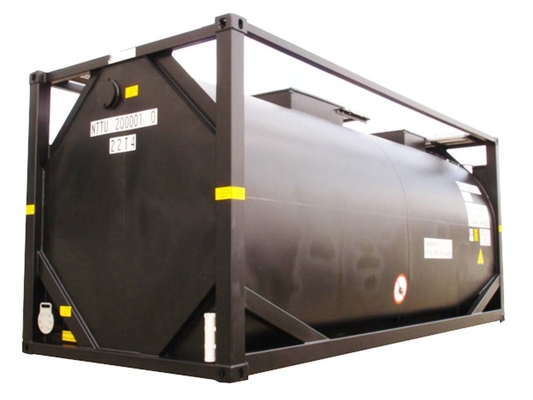

Product pictures:
Product details:
FAQ:
1.Q: What is the MOQ?
A: One unit is OK, please contact for details.
2.Q: Delivery time?
A: Generally 90 to 120 days, sometimes we have stock. Please contact for details.
3.Q: What certification do you have?
A: We are authorized by CCS, LR, BV.
4.Q: What documents do you offer?
A: We offer product quality certification issued by the manufacture, tank drawing, GA drawing, operation instructions and calculation sheet etc for each tank, ceritificate of shipping, such as LR, CCS, BV inspection.
6.Q: Specific technical service issues for other classes.
A: Please contact us, we will provide professional and detailed answers.
