Product Details:
Payment & Shipping Terms:
|
| External Dimensions(l X W X H)(mm): | 6058*2438*2591/mm | Design Temperature: | -40 ~ +130 ℃ |
|---|---|---|---|
| Warranty: | 1 Year | Shape: | Cylinder |
| Tank Material: | Cartridge Q235 Carbon Steel /5mm, Head Q235 Carbon Steel /5mm | Beam Material: | Q235B/5mm |
| Head Thickness: | 5mm | Lining Material: | PE |
| Curb Weight (kg: | 4200 | ||
| High Light: | Liquid Tank Container ASME,5mm Liquid Tank Container,ASME Stainless Steel Tank Container |
||
20FT Shipping Heavy Crude Oil Bitumen Food Grade Water Liquid Acid Carbon Stainless Steel ISO Tank Container Price
1. Inner layer - made of 6 or 8 mm thick Q235-B steel plate, compared with ordinary 5 mm thick single-layer
tank, the strength is
greatly improved;
2. Outer layer - tempered glass fiber thickness of 4.0mm or more, good compressive and seismic resistance.
It has strong corrosion
resistance and corrosion resistance;
3.Unique technology is adopted between the inner and outer layers to make it reach a gap of 0.1-1mm, so as
to eliminate hidden
dangers from the root;
4. Leak detector 24 hours to monitor, to prevent leakage caused by security risks;
5. Widely used for storage and transportation in dairy, beverage, wine technology, with function of anti-seismic,
anti-explosion,leakage-proof and cooling.
parameter:
| Tank material | Cylinder body Q235 carbon steel/5mm, head Q235 carbon steel/5mm | ||
| Beam material | Q235B/5mm | ||
| shape | Rectangular | ||
| Curb weight (kg) | 4200 | ||
| Head thickness | 5mm | ||
| Tank thickness | 5mm | ||
| Wave breaker | Q235B/4.75mm | ||
| Wave breaker hoarding | Q235B/3.5mm | ||
| Manhole | 2 | ||
| Pedestrian walkway | Have | ||
| Discharge valve | Stainless steel DN80 one | ||
| Wave breaker | 2 pieces | ||
| Climb the ladder | 1 | ||
| Ball valve | Stainless steel DN80 one | ||
| colour | According to user requirements |

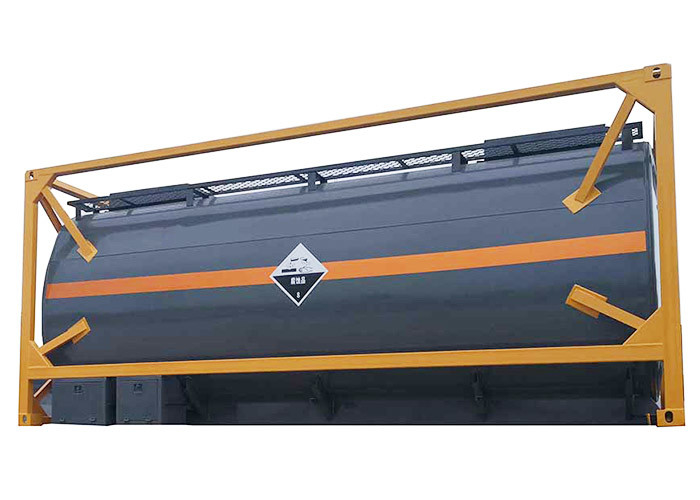

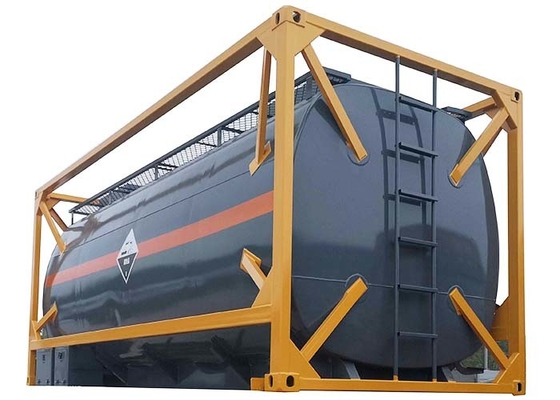

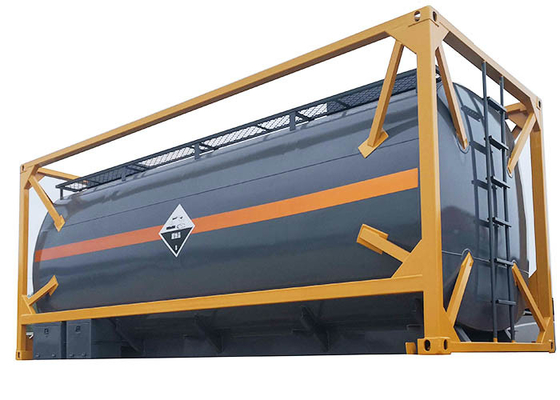

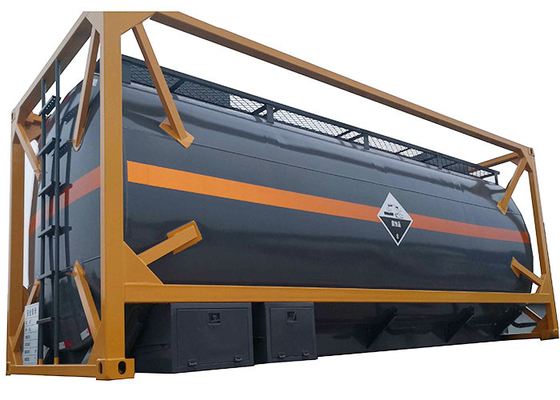

Product pictures:
Design proposal for the 20feet ISO tank container:
---Net capacity: not less than 20cubic; Shell of tank container Materials using Wisco Q235 High quality
carbon steel 6mm baffle;
---Two feed inlets,bigger manhole covers, 2 NOS. pressure vent valves( breather valve) , at the end of the
bottom , DN80 dump
valve(discharge valve). Screw of Openings and valves adopt stainless steel screws, single coaming board
on the top of tank
Molybdenum red reflective tape;
---Framework is made of High quality steel, each one ladder at back and forth. With two acid resistant tube,
two 4kg fire
extinguishers.
Factory Tour:
FAQ:
Q.I want the Tank Container with discharging pump system,can you supply?
A:Yes,the discharging pump system is the option configuration,you can choose it as you want. Besides, we can also supply some related equipment for the tank container such as the evaporator etc.
Q: Do you have the certificates to meet us the transportation ways of the land truck,Sea Boat and Railway?
A:Yeah,of course,but the price will be very different by different transportation ways;So kindly please let me know your exact transportation ways before the quoting;And also the certificates will be ready after the tank container passed all kinds of the testing&inspection.
Q: Do you have the stocked tank containers?
A:Yes,but the price will be higher than the normal one.
Q: Can i have the drawings of this ISO Storage tank containers?
A:Yeah,the existing simple similar drawings of the tank container for your reference only for the beginning,will make the more precise drawings after getting the down payment,and will send this drawing to you for your confirmation before production.
Q: Can i make the discharging valves at the bottom?
A:Yes,the discharging valves can be at the bottom or at the top,you can choose as your actual request.
Q: How can i pay the money without risk?
A:You can pay the money to us via Alibaba Trade Assurance,then the alibaba can guarantee your money safe and the delivery on time.
Q: Can i do your agent in our country or some district?
A:Yes,if you quantity is enough,no problem,the 50units for the first time is okay.
