| Certification: | ISO9001 | Warranty: | 1 Year |
|---|---|---|---|
| M.G.W.: | 30,480 Kgs | Max Gross Weight: | 26000 Kg |
| Tare Weight: | 4.85tons | Nominal Capacity: | 22000L |
| UN Code.: | 1999 | Design Standards: | IMDG-CODE. GB150-98 ASMI-1 JB/T4781-2005 |
| High Light: | Portable Tank Container 22CBM,20ft Portable Tank Container LR Chemical,Bitumen ISO Container 22CBM |
||
20ft Portable 22CBM Bitumen Tank Container With Hotoil Coils Heating
asphalt tank container:
1. Asphalt ISO tank container mainly used for transportation and storage of asphalt products, widely used in asphalt factory & Road Bureau as well as Shipping Company.
2. Asphalt ISO tank container is a pressure vessel mounted in a frame. Frame dimensions comply with the recommendations of the International Standards Organization (ISO). The unit is designed and constructed in accordance with strict international codes for the worldwide carriage of bulk liquids on land, rail and sea.
parameter:
| Dimension of the 20Feet 22CBM Bitumen Tank Container with hotoil coils heating | ||
|
Outer Dimension
|
Length(mm) | 6058mm |
| Width(mm) | 2438mm | |
| Height(mm) | 2591mm | |
| Transportation/Storage material | Asphalt | |
| Max gross weight | 26000 kg | |
| Tare weight | 4.85tons | |
| Payload | 21000 kg | |
| Nominal Capacity | 22000L | |
| UN Code. | 1999 | |
| Tank Guide | T3 | |
| Design Standards | IMDG-CODE. GB150-98 ASMI-1 JB/T4781-2005 | |
| Recognized Register | CCS,Basis: IMDG. CSC. TIR. UIC. RID.,ADR/IMO/ISO(meet Shipping requirement) | |
| Tank Type | 20FT | |
| Tank Shape | Column Shape, Horizontal | |
| Design temperature | -40 ~ +130 ℃ | |
| Design pressure | 1.75bar | |
| Design temperature | -40℃~230℃ | |
| Working Pressure | 0.9bar | |
| Working temperature | 230℃ | |
| Test pressure | 2.6Bar, Hydraulic pressure test | |
| Corrosion Degree | 0 | |
| Gastight Test Pressure | 1.2bar | |
| Vacuum Test Pressure | 0.21Bar | |
| Welding Joint Efficiency | 1.0 | |
| Radiographic Inspection | 100% X-RAY | |
| Tank Materials | GBQ345B, High quality mild steel | |
| Thickness (mm) | 5.0 | |
| End Enclosure (mm) | 5.0 | |
| Washplate(mm) | 4mm, 2 compartments 1 bin | |
We can provide you with a complete set of service from quota, design, manufacture and installation, according to your requirements we can design by your plan, or manufacture by your drawing, guarantees inner quality and safety, good looking appearance and function by introducing
international advanced large-sized equipment of pulse plasma arc welder and auto polishing machines and cooperating with international famous finished equipment making company.More detailed information will available on your requirement.we all have mature solutions at any time.

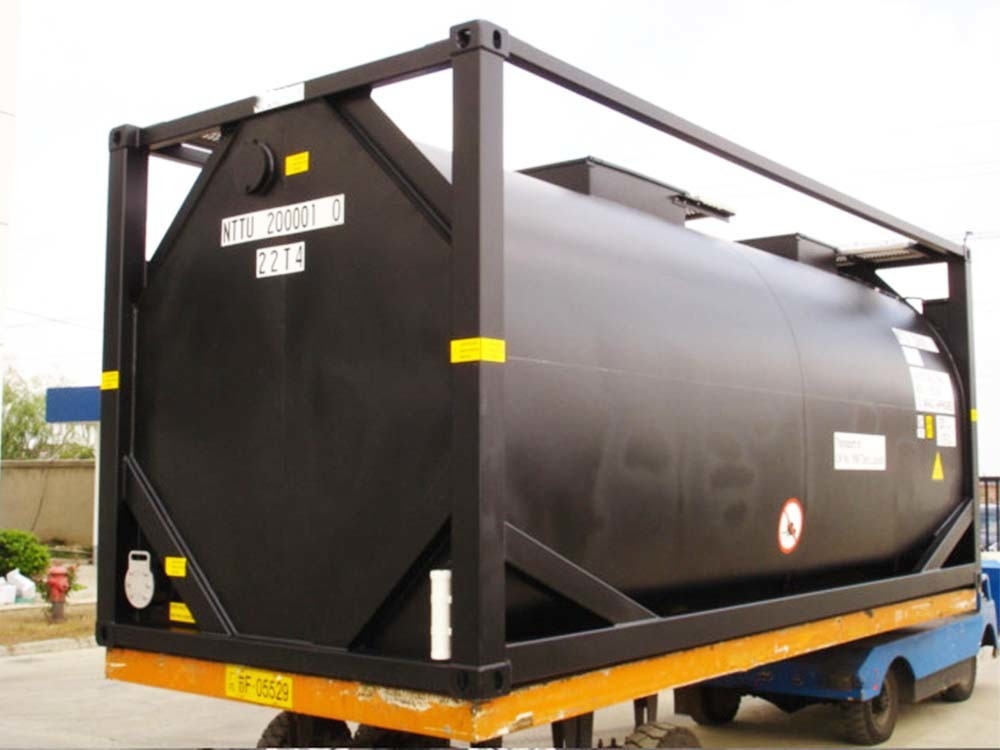

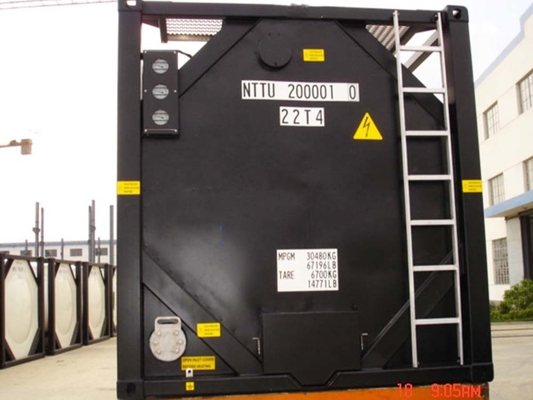

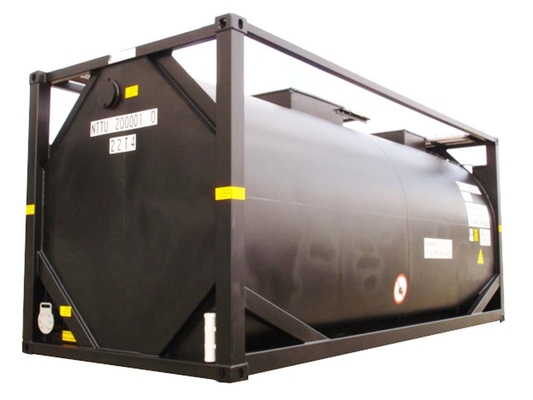

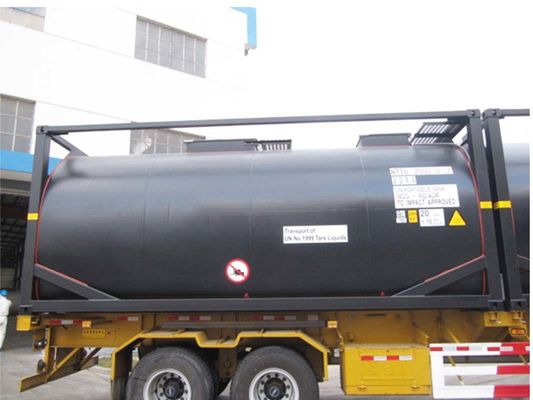

Product pictures:
Product details:
FAQ:
1. Q: Are your bitumen tank container with heating and handling equipment included?
No, Bitutainers are supplied with factory installed heater tubes but Burner Sets and other equipment is not included.
2. Q: What kinds of heating you offer?
Three options; Direct Fire Diesel or LPG Burners, inserting electric elements into the direct fire heating tubes or by using Thermal Oil from an existing circuit. Direct Fire heating is the most popular option.
3. Q: How long does it take to heat a full Bitutainer?
Typically it will take 10-11 hours to heat a full Bitutainer (using a 200ltr of diesel) from ambient (approx. 20°C) to pumping temperate (approx. 140° C).
4. Q: Can we load the tank container fully?
No, It can maxminumly filled 95%.
5. Q: Your tank container ship as standard containers?
Yes, they are shipped as standard CSC plated containers
6. Q: Are your tank suitable for all grades of bitumen?
Yes, Bitutainers are suitable for all grades of bitumen, PMBs and heavy fuel oils. The exception is Coal Tar due to the higher temperatures required for discharge and transfer.
