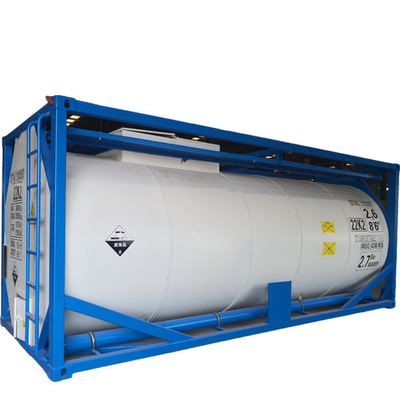

Introduction to tank container:
Customized low price factory direct sales 10FT/20FT/30FT/40FT acid tank container
ISO tank (tank container) is a kind of container installed in a fastening external frame.
It is used to transport liquid goods such as alcohol, oil, liquid food, chemicals and so on.
It is mainly composed of liquid tank and frame. The liquid tank is oval or nearly spherical,
and double-layer structure can be adopted. The frame is made of high strength steel, and
the liquid tank is placed in the middle of the frame.
parameter:
| Items | Parameter | ||
| product name | 20-foot container tank (hydrochloric acid) | ||
| Transport medium | hydrochloric acid | ||
| Production cycle | 30 | ||
| model | LSXC | ||
| Volume | 23m³ | ||
| Tank size (mm) | 5880*diameter 2320 | ||
| Warranty/Certificate | Have | ||
| Tank material | Cylinder body Q235B/5mm, head cylinder body Q235B/6mm | ||
| Beam material | Q235B/5mm | ||
| shape | Cylindrical | ||
| Curb weight (kg) | 4700 | ||
| Head thickness | 6mm | ||
| Tank thickness | 5mm | ||
| Wave breaker | Q235B/4.75mm | ||
| Wave breaker hoarding | Q235B/3.5mm | ||
| Top pick-up tray size | 900*900*250mm | ||
| tank mouth | 1 sulphuric acid special tank mouth | ||
| Manhole | 1 | ||
| Discharge valve | 1pc/DN80PP ball valve | ||
| Breathing valve | 1/PP ball valve | ||
| Wave breaker | 2 pieces | ||
| Ball valve | DN80PP ball valve | ||
| Lining thickness | 16mm | ||
| Lining material | PE | ||
| Export | DN80PP ball valve | ||
| colour | According to user requirements |
ISO container tank
1. Stainless steel tank container is suitable for edible oil, fruit juice, beverage, medicine, chemical
industry and other industries.
2. We manufacture tank containers for petroleum, chemical and water transportation. Our products
include carbon
Steel, stainless steel.
3. We provide a full range of oil tanks, including: gasoline and diesel tanks, drinking water tanks and
various customized oil tank containers to meet your specific requirements.
4. We provide T75 and T50 gas tank containers.
Product advantages:
1: We can provide different sizes of tank containers from 20 FT to 40 FT, and can accept
customized any special tank containers.
2. iso tank containers, acid, soda, liquefied petroleum gas and other tank containers. Various
chemicals can be transported and stored
3. Our iso tank containers are mainly exported to Africa, Asia and South America, such as
Nigeria, Ghana, Kenya, Vietnam, Peru, etc. Our tank containers can also be exported all
over the world because our standard tank containers are of international standard.
