| External Dimensions(l X W X H)(mm): | 6058*2438*2591/mm | Design Temperature: | -40 ~ +130 ℃ |
|---|---|---|---|
| Design Pressure: | 0.175Mpa | Working Pressure: | 0.09Mpa |
| Weight: | 26000 Kg | Design Approvals: | IMDG , CFR 49, ADR/RID, CSC, TC, TIR, ISO, UIC, US DOT |
| Certification: | ISO9001 | Warranty: | 1 Year |
| Capacity: | 17500L | Internal Dimensions(l X W X H)(mm): | 5818*22168*2068(mm) |
Ex-factory price hydrochloric acid and sulfuric acid chemical transport tank container
ISO container tank
1. Stainless steel tank container is suitable for edible oil, fruit juice,
beverage, medicine, chemical industry and other industries.
2. We manufacture tank containers for petroleum, chemical
and water transportation. Our products include carbon
Steel, stainless steel.
3. We provide a full range of oil tanks, including: gasoline
and diesel tanks, drinking water tanks and various
customized oil tank containers to meet your specific requirements.
4. We provide T75 and T50 gas tank containers.
parameter:
| Items | Parameter | ||
| product name | 20-foot container tank (hydrochloric acid) | ||
| Transport medium | hydrochloric acid | ||
| Production cycle | 30 | ||
| model | LSXC | ||
| Volume | 23m³ | ||
| Tank size (mm) | 5880*diameter 2320 | ||
| Warranty/Certificate | Have | ||
| Tank material | Cylinder body Q235B/5mm, head cylinder body Q235B/6mm | ||
| Beam material | Q235B/5mm | ||
| shape | Cylindrical | ||
| Curb weight (kg) | 4700 | ||
| Head thickness | 6mm | ||
| Tank thickness | 5mm | ||
| Wave breaker | Q235B/4.75mm | ||
| Wave breaker hoarding | Q235B/3.5mm | ||
| Top pick-up tray size | 900*900*250mm | ||
| tank mouth | 1 sulphuric acid special tank mouth | ||
| Manhole | 1 | ||
| Discharge valve | 1pc/DN80PP ball valve | ||
| Breathing valve | 1/PP ball valve | ||
| Wave breaker | 2 pieces | ||
| Ball valve | DN80PP ball valve | ||
| Lining thickness | 16mm | ||
| Lining material | PE | ||
| Export | DN80PP ball valve | ||
| colour | According to user requirements |
ISO container tank
1. Stainless steel tank container is suitable for edible oil, fruit juice, beverage, medicine, chemical
industry and other industries.
2. We manufacture tank containers for petroleum, chemical and water transportation. Our products
include carbon
Steel, stainless steel.
3. We provide a full range of oil tanks, including: gasoline and diesel tanks, drinking water tanks and
various customized oil tank containers to meet your specific requirements.
4. We provide T75 and T50 gas tank containers.
Our factory with more than 20 years' experience. Being famous in domestic and foreign
countries, we concentrate on tank container and trailer's research and development.
Our aim is to provide high quality and low price products for the customer.
Experienced and technological team customize the best productions for
customers. For any reliability& safety and economic related questions,
we all have mature solutions at any time.

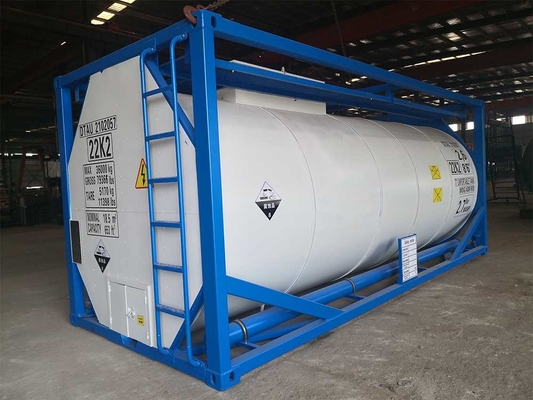

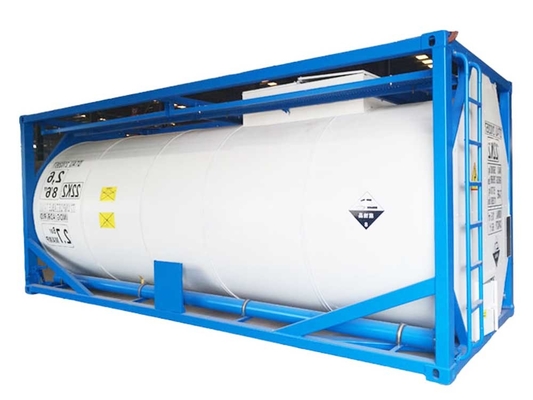

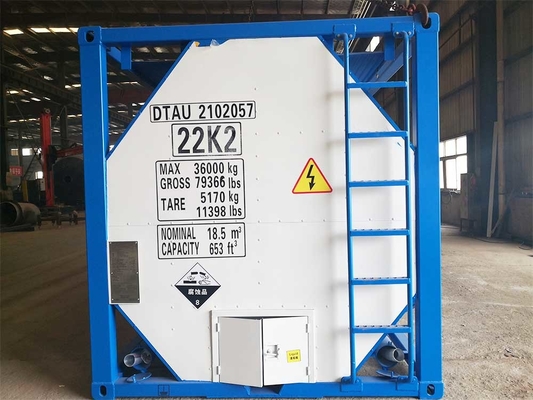

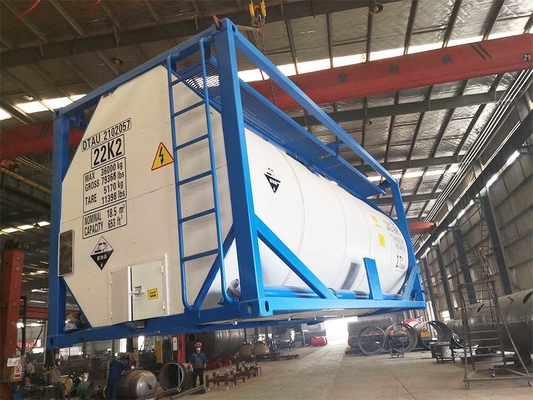

Product pictures:
Product details:
Certificate:
Factory Tour:
FAQ:
Q:What kind of Payment can you accept?
A:T / T and L/C is all right to us.
Q:Does your iso tank container meet with international requirement?
A:All of our tank container will be approval by BV or LR or CCS and meet with International Standard.
Q:How long will it takes to ship?
A:Around 15-25 working days.
Q: How about the Color , Specific configuration things?
A:It's up to you , most of them are optional and can be changed by your needs.
