Product Details:
Payment & Shipping Terms:
|
| Capacity: | 25000L, 20m3 | Weight: | 10675kg |
|---|---|---|---|
| Design Temperature: | -40 To +130 Centigrade | Tare Mass: | 3510,6200 Kg (± 3%) |
| Dimension(L*W*H): | 6058,12192 X 2438 X 2591 Mm | Max Working Pressure(MPa): | 0.17 MPa, 0.4 MPa |
| Certification: | BV/SCS/TUV | Material: | 316L/SAN50028-7/WNr 1.4402/1.4404 |
| Marketing Type: | Hot Product 2022 | Design Code: | ASME VIII DIV. 1 |
Factory price SS316 20 feet 21-26CBM CIMC T3 T4 T11 T14 ASME standard ISO liquid food transportation tank container
Introduction to tank container:
Brand New ASME Standard T4 T11 ISO Tank Container
T4 20ft iso tank container, Full Frame Potable Tank Container,
which is widely used to transport kinds of liquid chemical medium.
The shell is 316 stainless steel, the frame is made of strong steel
Corten A or equal material, which are testing by LR.
Our T4 20ft iso tank container is designed as perASME standard,
and meeting IMO/IMDG, ISO, UN, CSC, TIR, UIC, TC, ADR/RID L4BN.
The Capacity has 19000L, 20000L, 21000L, 24000L, 25000L, 26000L.
parameter:
|
Specifications - T3-T14 iso tank container
|
||
|
Frame Dimensions (L x W x H)
|
6058,12192 x 2438 x 2591 mm
|
|
|
Nominal Capacity
|
25000,47000 litre (±0.75%)
|
|
|
Maximum Gross Mass
|
36000,75000 kgs
|
|
|
Tare Mass
|
3510,6200 kg (± 3%)
|
|
|
Design Temperature (Frame & Tank)
|
-40 to +130 °C
|
|
|
Pressure
|
Working
|
1.70 bar
|
|
Test
|
2.65 bar
|
|
|
Material
|
Tank (Shell & Ends)
|
SANS 50028-7 Type 1.4402/1.4404 (C≤0.03%)
|
|
Frame
|
SPA-H or equivalent
|
|
|
Insulation
|
Shell
|
Rockwool (50kg/m3) 50mm thick on aluminium foil.
|
|
Ends
|
Glasswool (16kg/m3) thickness to suit on aluminium foil.
|
|
|
|
6 runs.
110mm width stainless steel 304. 1" BSP inlet, 1" BSP outlet both with captive caps and cable. 4 bar working pressure, 6 bar test with warning decals and markings. A condensate drain is fitted. |
|
|
Manhole
|
500mm low profile, 8 point fixing with Super Tanktyt Lid seal.
|
|
|
Assembly |
1-off.
2½" BSP Supermaxi Highflow relive, without flameproof gauze. Pressure only set at +4.4 bar (63.8psi). The assembly is situated off centre on a tangential tank pad. |
|
|
Air Inlet
assembly
|
DN 40 ball valve terminating with 1½" BSP connection and cap.
The assembly is situated off centre on a tangential tank pad. |
|
|
Top Discharge
|
DN80 stainless steel 316 tank pad with a blind flange.
The assembly is fitted on centre on a horizontal tank pad. |
|
|
Bottom
Discharge |
DN80 45° Univalve Internal Footvalve part no. TBC fitted with an integrated butterfly
valve terminating with a 3" BSP spigot with 3" BSP blind cap and chain. |
|
|
Thermometer
|
A surface mounted analogue type is fitted to the rear end dished end of the tank. Dual
scale -40°C to +160°C / -40°F to 320°F. The thermometer is fitted with a protection bar. |
|
|
Document
holder |
A clear plastic document holder ø110mm is fitted to the rear right hand side beam.
A drain hole is provided at the lowest point. |
|
|
Calibration
|
A calibration plate marked in cm/litres is fitted on the spillbox side wall.
No calibrated stainless steel grade dipstick and bracket fitted. |
|
|
Design Code
|
ASME VIII DIV. 1
|
|
|
Approval
|
IMDG, US DOT CFR 49, RID/ADR, CSC, TC, TIR / Customs, UIC, ISO 1496/3
|
|
Liquid storage tank container is widely used in industries for liquid transportation
on the road/ rail/ ship and storage.ISO tank container:
1. Inner layer - made of 6 or 8 mm thick Q235-B steel plate, compared with
ordinary 5 mm thick single-layer tank, the strength is greatly improved;
2.Outer layer - tempered glass fiber thickness of 4.0mm or more,
good compressive and seismic resistance. It has strong corrosion
resistance and corrosion resistance.
Unique technology is adopted between the inner and outer layers
to make it reach a gap of 0.1-1mm, so as to eliminate hidden dangers from the root.
Leak detector 24 hours to monitor, to prevent leakage caused by security risks.
Product advantages:
1: We can provide different sizes of tank containers from 20 FT to 40 FT, and can accept
customized any special tank containers.
2. iso tank containers, acid, soda, liquefied petroleum gas and other tank containers. Various
chemicals can be transported and stored
3. Our iso tank containers are mainly exported to Africa, Asia and South America, such as
Nigeria, Ghana, Kenya, Vietnam, Peru, etc. Our tank containers can also be exported all
over the world because our standard tank containers are of international standard.

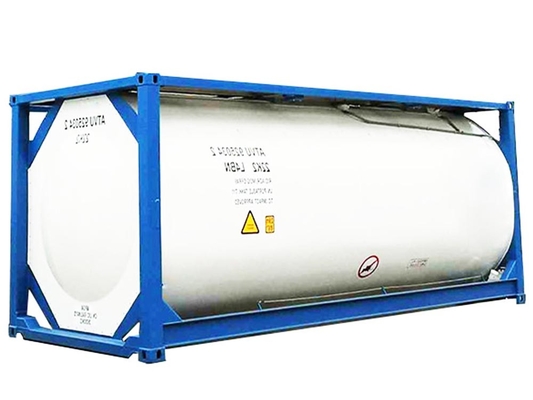

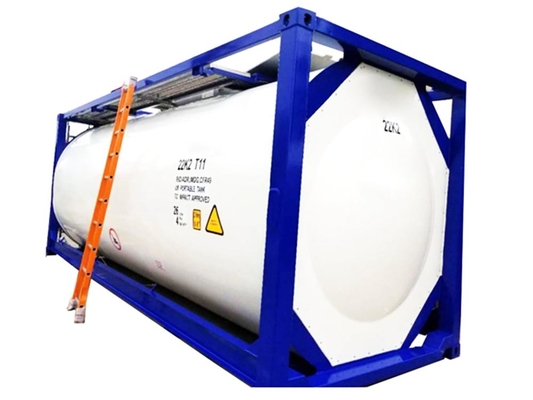

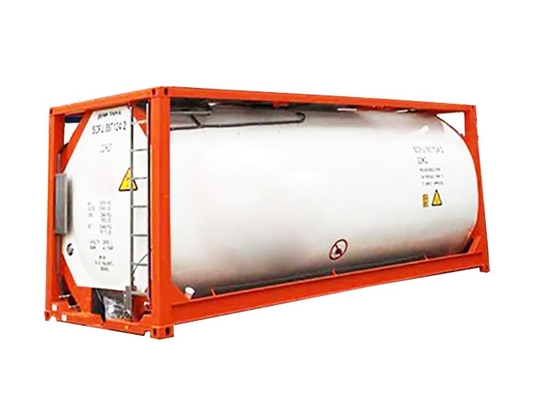

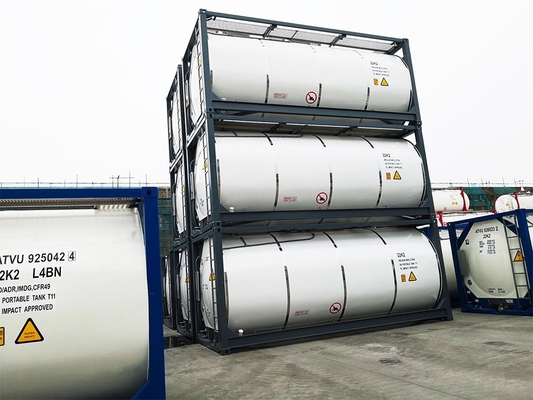

Product pictures:
Product details:
1). cutting materials for preparing oil tanks manufacture
2). rolling machines for circling
3). welding and NDT(non-defection test) inspection
4). re-circling after welding
5). outer vessel’s abrasive blasting and anti corrosive painting for outside surface
6). pipe connecting and assembly of inner vessel and outer vessel
7). valves installation
8). perlite filling
9). vacuum-pumping
10). final painting and ready for shipment
Certificate
Factory Tour:
FAQ:
1. Q: Are you a oil tank Manufacturer ?
A: Yes, professional factory in China,welcome to visit our factory.
2. Q: Which area have you tanks exported to ?
A: Singapore New Zealand ,America, Africa, Asia, South America and Australia
3. Q: Any advantage ?
A: We have professional engineer team and technical workers. We can supply
the one-stop service from machining to welding.Honesty, integrity, and
customer satisfaction is our goal, because we truly care
