| External Dimensions(l X W X H)(mm): | 6058*2438*2591/mm | Design Temperature: | -40 ~ +130 ℃ |
|---|---|---|---|
| Design Approvals: | IMDG , CFR 49, ADR/RID, CSC, TC, TIR, ISO, UIC, US DOT | Certification: | ISO9001 |
| Warranty: | 1 Year | Opening Pressure Of Safety Valve: | 0.44MPa |
| Hydrostatic Test Pressure: | 0.6MPa | Air Tightness Test Pressure: | 0.3MPa |
| Design Temperature Max/min: | +65℃/-40℃ | TARE: | 5,170kg |
| M.P.G.M: | 36,000kg | ||
| High Light: | T14 Liquid Tank Container,Liquid Tank Container 20Ft,20Ft Carbon Steel Storage Tanks |
||
Best price ASME ISO 20-foot carbon steel chemical liquid tank container chemical storage and transportation equipment
ISO container tank
1. Stainless steel tank container is suitable for edible oil, fruit juice,
beverage, medicine, chemical industry and other industries.
2. We manufacture tank containers for petroleum, chemical
and water transportation. Our products include carbon
Steel, stainless steel.
3. We provide a full range of oil tanks, including: gasoline
and diesel tanks, drinking water tanks and various
customized oil tank containers to meet your specific requirements.
4. We provide T75 and T50 gas tank containers.
ISO tank (tank container) is a kind of container installed in a fastening
external frame. It is used to transport liquid goods such as alcohol, oil,
liquid food, chemicals and so on. It is mainly composed of liquid tank and frame.
The liquid tank is oval or nearly spherical, and double-layer structure can be
adopted. The frame is made of high strength steel, and the liquid tank is
placed in the middle of the frame.
parameter:
| parameter | Description | ||
| model | Twenty-foot T14 tank container | ||
| medium | Hydrochloric acid UN1789 | ||
| Outside size | 6058*2438*2591 | ||
| Working pressure Mpa | Atmospheric | ||
| Design pressure Mpa | 0.4Mpa | ||
| Test pressure Mpa | 0.6Mpa | ||
| Tank material | Q345R210617 | ||
| Design specification | ASME VIII DIV 1 | ||
| T14 UN PORTABLE TANK ,IMDG, TIR, UIC,CSC,TC | |||
| RID /ADR,USDOT, ISO 1496-3 | |||
| Maximum allowable working pressure | 0.4MPa AT 65℃ | ||
| Minimum design metal temperature | -40℃ AT 0.4MPa | ||
| Opening pressure of safety valve | 0.44MPa | ||
| Hydrostatic test pressure | 0.6MPa | ||
| Air tightness test pressure | 0.3MPa | ||
| Design temperature max/min | +65℃/-40℃ | ||
| Corrosion allowance | 0mm | ||
| NOMINAL THICKNESS OF SHELL | 6mm | ||
| THICKNESS OF HEAD | 8(min6.0)mm | ||
| RT(SHELL/HEAD) | 100%/100% | ||
| MT | all the nozzle welds and angle welds | ||
| TOTAL VOLUME (NOMINAL±1%) | 17,500L | ||
| TARE | 5,170kg | ||
| M.P.G.M | 36,000kg | ||
| Stacking MASS | 192,000kg | ||
| Cylinder | SA-516M Gr.485 Normalized | ||
| HEAD | SA-516M Gr.485 Normalized | ||
| FLANGES/WELD-IN FORGINGS | SA-350M LF2 Class 1 | ||
| FRAME-PLATE/hollow sections | Q345-D (GB/t1591) | ||
| LNNER LINING | 16mm PE | ||
| INSULATION | 50mm Mineral Wool | ||
| Surface treatment inside the tank | shot blasted to SA 2.5 before lining PE | ||
| Surface treatment of frame and tank body | shot blasted to SA 2.5 | ||
| Paint/color of the outer surface of the tank | ≥120μm/white or according to customers needs | ||
| Frame exterior paint/color | ≥120μm/white or according to customers needs | ||
| Insulation Materials | 50mm glass fiber cotton + 1.0 cold plate outer skin insulation + waterproof strap | ||
| aisle | Aluminum alloy crocodile nozzle anti-skid walkway | ||
| Loading and unloading type | Loading and unloading | ||
| Accessories configuration | Top protective box with cover: a DN500 steel-lined plastic blind plate manhole, a coated safety valve connected in series with PTFE rupture discs and pressure gauges, a DN50 gas phase stainless steel fluorine-lined ball valve, and a DN80 liquid stainless steel fluorine-lined ball valve ( The tank has a siphon tube and a liquid trap), and a DN80 spare port. | ||
| other | Simple ladder etc. | ||
| Surface treatment | Acrylic acid and alkali resistant matt paint, the total thickness of the paint is 120um, the tank is white RAL9016, and the frame is blue RAL5015. Labels are attached as required. Spray designated LOGO | ||
| Design/manufacturing standards | NB/T47064-2017 "Liquid Dangerous Goods Tank Container" |
ISO container tank
1. Stainless steel tank container is suitable for edible oil, fruit juice, beverage, medicine, chemical
industry and other industries.
2. We manufacture tank containers for petroleum, chemical and water transportation. Our products
include carbon
Steel, stainless steel.
3. We provide a full range of oil tanks, including: gasoline and diesel tanks, drinking water tanks and
various customized oil tank containers to meet your specific requirements.
4. We provide T75 and T50 gas tank containers.
Our factory with more than 20 years' experience. Being famous in domestic and foreign
countries, we concentrate on tank container and trailer's research and development.
Our aim is to provide high quality and low price products for the customer.
Experienced and technological team customize the best productions for
customers. For any reliability& safety and economic related questions,
we all have mature solutions at any time.

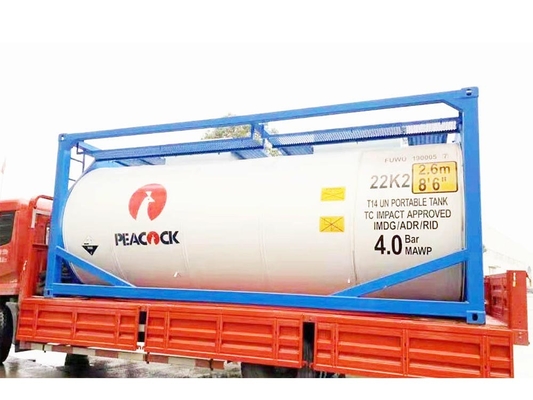

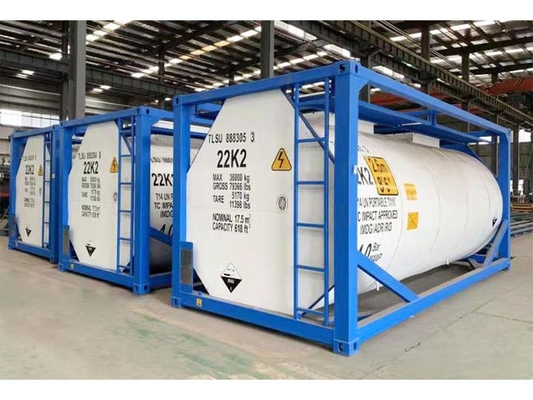

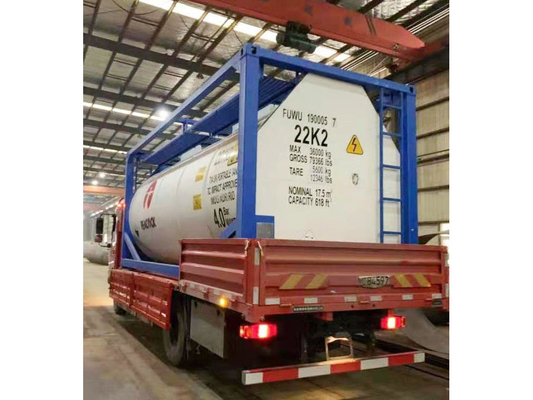

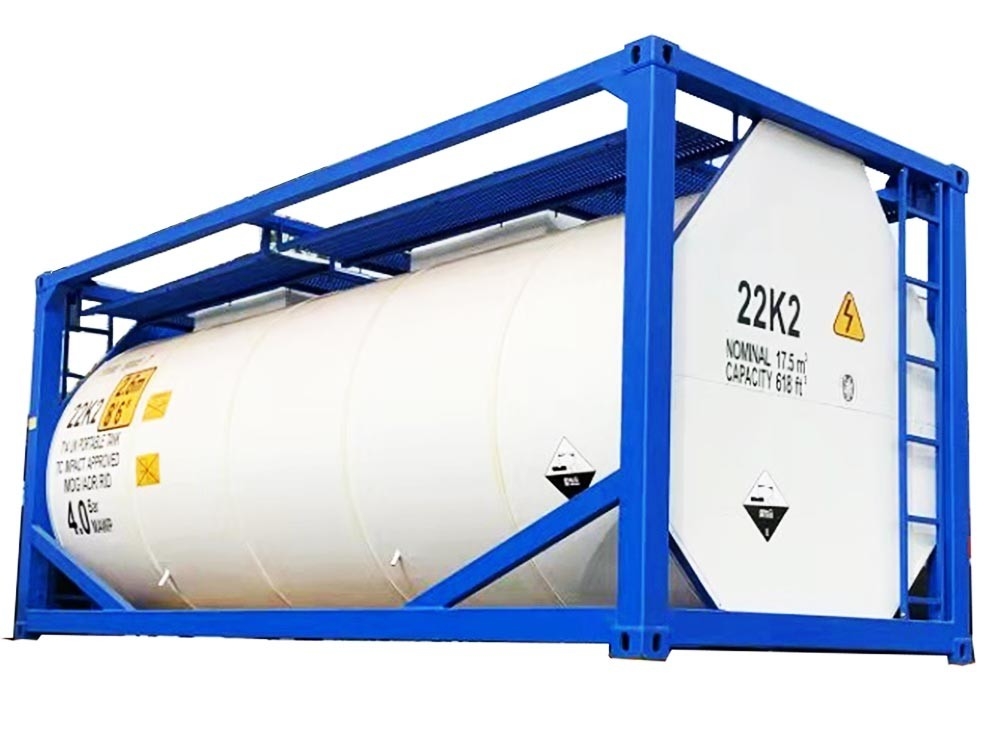

Product pictures:
Product details:
Certificate:
Factory Tour:
FAQ:
Q: How to ensure your quality of tank container?
A:Our ISO tank container approvals of main classification societies like ABS,CCS,GL,BV
and also in accordance with IMDG, RID/ADR, ASME VII DIV2, CFR 48, USDOT (BYSP),
TIR, UIC, CSC, TC, UKDFT, FRA
Q:What's your MOQ?
A:1.no matter which model 1set is our MOQ;
Q:What kind of tank container can you provide ?
A:We can manufacture fuel steel tank container, liquid food stainless steel tank container,
LPG tank container, LNG tank container and bitumen tank container.
Q:Can a tank container be manufactured to my specifications?
A: we make a range of tanks designed for numerous applications. However, tanks can
be manufactured and modified to meet individual requirements.
Q:What is your producing time?
A:6,normally is about 25days,and it depends on your quantity
