Factory Price 20ft Portable 22CBM Bitumen Tank Container With Hotoil Coils Heating
asphalt tank container:
1. Asphalt ISO tank container mainly used for transportation and storage of asphalt
products, widely used in asphalt factory & Road Bureau as well as Shipping Company.
2. Asphalt ISO tank container is a pressure vessel mounted in a frame. Frame dimensions
comply with the recommendations of the International Standards Organization (ISO).
The unit is designed and constructed in accordance with strict international codes for
the worldwide carriage of bulk liquids on land, rail and sea.
parameter:
| Items | Parameter | ||
| DESIGN CODE:TANK | ASME SECT VII DIV. 1 | ||
| IMDG T349CFRT3ADR/RID | |||
| FRAME | IMDGT349CFRT3ADR/RID,CTC, | ||
| CSC,UIC,TIR,ISO,TC. | |||
| AMBIENT TEMPERATURE RANGE | -40℃TO+65C | ||
| VESSEL DESIGN TEMPERATURE | 170 | ||
| WORKING PRESSURE | TANK:1.76 BAR | HEATINGCOILS:4BAR | |
| TEST PRESSURE | TANK:2.65 BAR | HEATINGCOILS:6BAR | |
| DESIGN EXTERNAL PRESSURE | 0.21 BAR | ||
| MATERIALS:FRAME SHELL AND DISHED ENDS | GB/T 1591-94Q345DGB353116MnDR | ||
| SHELL MINIMUM THICKNESS | 6mm | ||
| HEAD MINIMUM THICKNESS | 6mmAFTER FORMING | ||
| CORROSION ALLOWANCE | 0 mm MAXIMUM | ||
| RADIOGRAPHY SHELL | SPOT | ||
| DISHED ENDS | 100% | ||
| NOMINAL CAPACITY | 20000 LITRES | ||
| MAX GROSS WEIGHT | 30480 kg | ||
| TARE WEIGHT | 6700 kg | ||
| STACKING CAPABILITY | 216,000KG | ||
| MAXPAYLOAD | 23780kg | ||
| PRODUCT LIST | BITUMEN | ||
| CONTAINER SIZE | 6058mmx2438mmx2591mm | ||
| INSULATION:SHELL | ROCKWOOL | ||
| INSULATION:HEADS | ROCKWOOL | ||
| CLADDING | ALUMINUM | ||
| FRAME FINISH | SHOT BLAST SA2.5: 3 COAT PAINT SYSTEM | ||
| INSPECTIONAUTHORITY | LR | ||
We can provide you with a complete set of service from quota, design, manufacture and installation,
according to your requirements we can design by your plan, or manufacture by your drawing,
guarantees inner quality and safety, good looking appearance and function by introducing
international advanced large-sized equipment of pulse plasma arc welder and auto polishing
machines and cooperating with international famous finished equipment making company.
More detailed information will available on your requirement.
we all have mature solutions at any time.

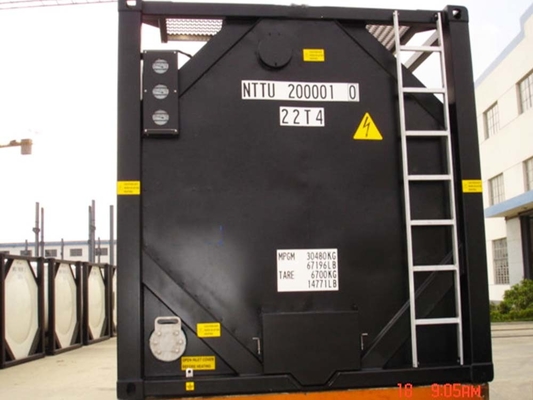

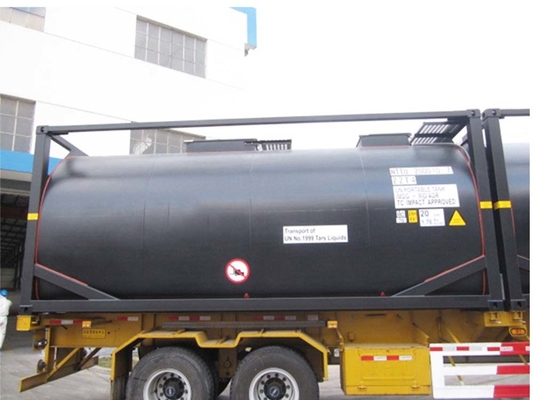

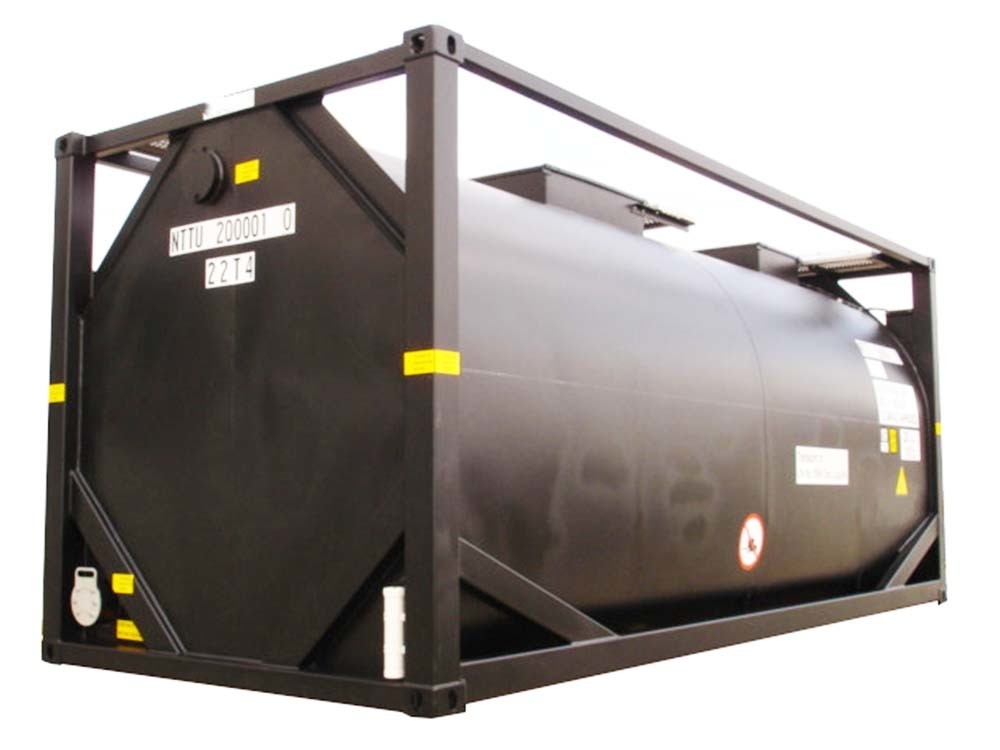

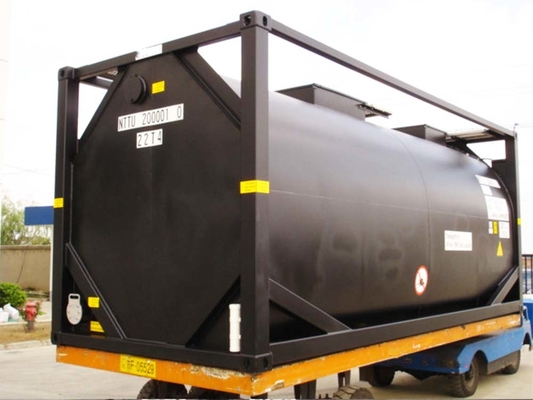

Product pictures:
Product details:
Certificate:
Factory Tour:
FAQ:
Q: How to ensure your quality of tank container?
A:Our ISO tank container approvals of main classification societies like ABS,CCS,GL,BV
and also in accordance with IMDG, RID/ADR, ASME VII DIV2, CFR 48, USDOT (BYSP),
TIR, UIC, CSC, TC, UKDFT, FRA
Q:What's your MOQ?
A:1.no matter which model 1set is our MOQ;
Q:What kind of tank container can you provide ?
A:We can manufacture fuel steel tank container, liquid food stainless steel tank container,
LPG tank container, LNG tank container and bitumen tank container.
Q:Can a tank container be manufactured to my specifications?
A: we make a range of tanks designed for numerous applications. However, tanks can
be manufactured and modified to meet individual requirements.
Q:What is your producing time?
A:6,normally is about 25days,and it depends on your quantity
