ASME Liquid Transport Containers 25000 Liter Bulk Iso Tank Containers

ASME Liquid Transport Containers 25000 Liter Bulk Iso Tank Containers
ASME Liquid Transport Containers 25000 Liter Bulk Iso Tank Containers ASME Liquid Transport Containers 25000 Liter Bulk Iso Tank Containers ASME Liquid Transport Containers 25000 Liter Bulk Iso Tank Containers ASME Liquid Transport Containers 25000 Liter Bulk Iso Tank Containers

Large Image :  ASME Liquid Transport Containers 25000 Liter Bulk Iso Tank Containers

Product Details:
Place of Origin: China
Brand Name: LISHIIXN
Certification: ISO ASME LR CSC
Model Number: LSXC20220401
Payment & Shipping Terms:
Minimum Order Quantity: 1/unit
Price: 14300USD
Delivery Time: 30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 unit
Detailed Product Description
Capacity: 25000L, 20m3 Weight: 10675kg
Design Temperature: -40 To +130 Centigrade Dimension(L*W*H): 6058,12192 X 2438 X 2591 Mm
Max Working Pressure(MPa): 0.17 MPa, 0.4 MPa Certification: BV/SCS/LR
External Dimensions(l X W X H)(mm): 6058 X 2438 X 2591mm Design Code: ASME VIII DIV. 1
Working Pressure: 4.0 Bar Test Pressure: 6.0 Bar
Approval: IMDG, ADR, CSC, TC TIR, UIC, ISO
High Light:

ASME Liquid Transport Containers

,

Liquid Transport Containers 25000 Liter

,

25000 Liter Bulk Iso Tank Containers

ASME Standard 25000 liter food grade liquid iso tank container for sale

  Advantage of Tank Container:

Low Cost

Saving land and sea freight, lower cost when long-term use

Convenient and fast

Fast and Convenient for Loading and unloading, washing. Door to door by land transportation, railway,
sea transportation.

Safety and Eco-Friendly

No leak or pollute the environment, and No pollute the goods themselves. The safest way to transport
chemicals and food internationally recognized.



ISO Tank container is a kind of steel pressure vessel installed in the fastening external frame. Most
of the tanks are made of 316 stainless steel and equipped with steam or electric heating device,
inert gas protection device, pressure relief device and other optional equipment for fluid
transportation and handling.
European, American and Japanese laws stipulate that some goods must be transported in
tank containers. As a means of Safety transportation, Tank Container has natural advantages
and become more and more popular in the world.

parameter:

Specifications - T3-T14 iso tank container
Frame Dimensions (L x W x H)
6058,12192 x 2438 x 2591 mm
Nominal Capacity
25000,47000 litre (±0.75%)
Maximum Gross Mass
36000,75000 kgs
Tare Mass
3510,6200 kg (± 3%)
Design Temperature (Frame & Tank)
-40 to +130 °C
Pressure
Working
1.70 bar
Test
2.65 bar
Material
Tank (Shell & Ends)
SANS 50028-7 Type 1.4402/1.4404 (C≤0.03%)
Frame
SPA-H or equivalent
Insulation
Shell
Rockwool (50kg/m3) 50mm thick on aluminium foil.
Ends
Glasswool (16kg/m3) thickness to suit on aluminium foil.


Steam Heating
6 runs.
110mm width stainless steel 304.
1" BSP inlet, 1" BSP outlet both with captive caps and cable.
4 bar working pressure, 6 bar test with warning decals and markings.
A condensate drain is fitted.
Manhole
500mm low profile, 8 point fixing with Super Tanktyt Lid seal.

Safety Relief
Assembly
1-off.
2½" BSP Supermaxi Highflow relive, without flameproof gauze.
Pressure only set at +4.4 bar (63.8psi).
The assembly is situated off centre on a tangential tank pad.
Air Inlet
assembly
DN 40 ball valve terminating with 1½" BSP connection and cap.
The assembly is situated off centre on a tangential tank pad.
Top Discharge
DN80 stainless steel 316 tank pad with a blind flange.
The assembly is fitted on centre on a horizontal tank pad.
Bottom
Discharge
DN80 45° Univalve Internal Footvalve part no. TBC fitted with an integrated butterfly
valve terminating with a 3" BSP spigot with 3" BSP blind cap and chain.
Thermometer
A surface mounted analogue type is fitted to the rear end dished end of the tank. Dual
scale -40°C to +160°C / -40°F to 320°F. The thermometer is fitted with a protection bar.
Document
holder
A clear plastic document holder ø110mm is fitted to the rear right hand side beam.
A drain hole is provided at the lowest point.
Calibration
A calibration plate marked in cm/litres is fitted on the spillbox side wall.
No calibrated stainless steel grade dipstick and bracket fitted.
Design Code
ASME VIII DIV. 1
Approval
IMDG, US DOT CFR 49, RID/ADR, CSC, TC, TIR / Customs, UIC, ISO 1496/3


  Liquid storage tank container is widely used in industries for liquid transportation
on the road/ rail/ ship and storage.ISO tank container:
  1. Inner layer - made of 6 or 8 mm thick Q235-B steel plate, compared with
ordinary 5 mm thick single-layer tank, the strength is greatly improved;
  2.Outer layer - tempered glass fiber thickness of 4.0mm or more,
good compressive and seismic resistance. It has strong corrosion
resistance and corrosion resistance.
Unique technology is adopted between the inner and outer layers
to make it reach a gap of 0.1-1mm, so as to eliminate hidden dangers from the root.
  Leak detector 24 hours to monitor, to prevent leakage caused by security risks.

  Product advantages:
1: We can provide different sizes of tank containers from 20 FT to 40 FT, and can accept
customized any special tank containers.
2. iso tank containers, acid, soda, liquefied petroleum gas and other tank containers. Various
chemicals can be transported and stored
3. Our iso tank containers are mainly exported to Africa, Asia and South America, such as
Nigeria, Ghana, Kenya, Vietnam, Peru, etc. Our tank containers can also be exported all
over the world because our standard tank containers are of international standard.

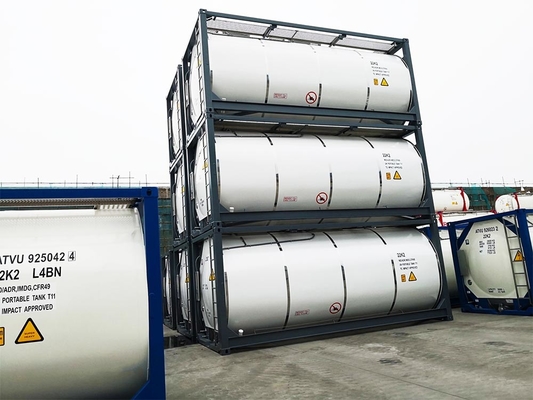

Product pictures:
ASME Liquid Transport Containers 25000 Liter Bulk Iso Tank Containers 0

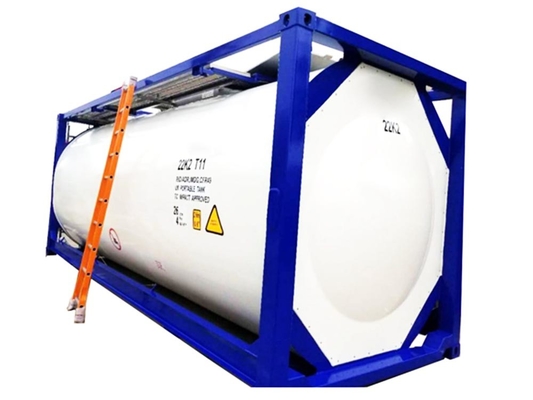

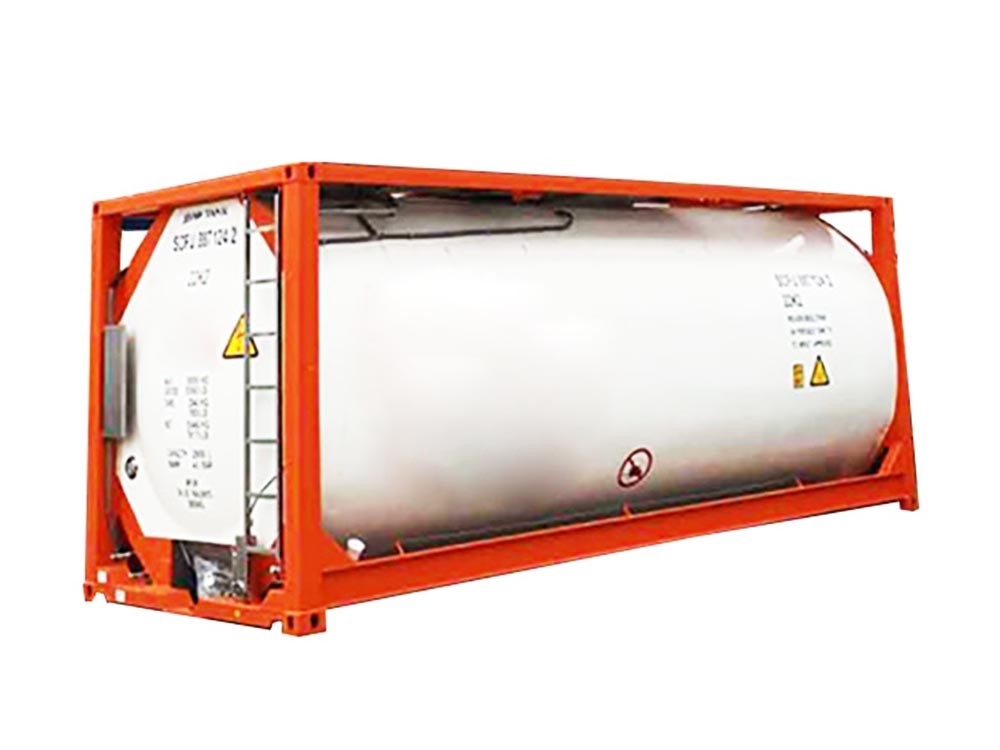

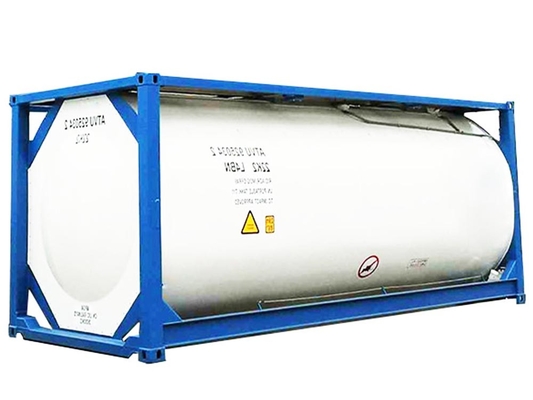

Product details:

ASME Liquid Transport Containers 25000 Liter Bulk Iso Tank Containers 1

Product Process


  1). cutting materials for preparing oil tanks manufacture
  2). rolling machines for circling
  3). welding and NDT(non-defection test) inspection
  4). re-circling after welding
  5). outer vessel’s abrasive blasting and anti corrosive painting for outside surface
  6). pipe connecting and assembly of inner vessel and outer vessel
  7). valves installation
  8). perlite filling
  9). vacuum-pumping
 10). final painting and ready for shipment

Certificate


ASME Liquid Transport Containers 25000 Liter Bulk Iso Tank Containers 2
Factory Tour:
ASME Liquid Transport Containers 25000 Liter Bulk Iso Tank Containers 3

FAQ:
5.1. Are your container fuel tank brand new?
Yes, all the container we provided are brand new. In fact, we will produce new container after order confirmation.
5.2 Does your container fuel tank meet with international requirement?
All of our tank container will be approval by BV or LR or CCS and meet with below requirement.
ISO 1496/3
UN Transport of Dangerous Goods
UIC International Rail Approval
TIR International Transport Goods under Custom Seal
CSC International Convention for Safe Containers
DOT US Code Federal Regulations CFR49
DOT UK Carriage of Dangerous Goods
CTC Canadian Transport Commission (Rail)
AAR American Association of Railroads
FRA Federal Rail Association USA
BAM G.D.R Domestic Approval
ISO/TC11
5.3 Can you provide Drawings for confirmation?
Yes, we will provide drawing after order confirmed before production
5.4 Do you have Small or Large Volume Tank Container?
Sure, we could do Tank Container form 1000L to 60000L. And could produce offshore Tank as per DNV2.7-1 / EN12079 Standard.
5.5 Do you provide OEM Service?
Yes, we have a first-class team and could design as per your requirement.
