Product Details:
Payment & Shipping Terms:
|
| External Dimensions(l X W X H)(mm): | 6058*2438*2591/mm | Design Temperature: | -40 ~ +130 ℃ |
|---|---|---|---|
| Design Pressure: | 0.175Mpa | Working Pressure: | 0.09Mpa |
| Weight: | 26000 Kg | Design Approvals: | IMDG , CFR 49, ADR/RID, CSC, TC, TIR, ISO, UIC, US DOT |
| Certification: | ISO9001 | Warranty: | 1 Year |
| Capacity: | 17500L | Internal Dimensions(l X W X H)(mm): | 5818*22168*2068(mm) |
| High Light: | Q235B ISO Liquid Tank Container,45000 Liters Liquid Tank Container,Q235B Chemical T75 Cryogenic Tank |
||
New 20-foot ISO chemical storage equipment for sulphuric, hydrochloric, caustic, and tank containers
ISO container tank
1. Stainless steel tank container is suitable for edible oil, fruit juice,
beverage, medicine, chemical industry and other industries.
2. We manufacture tank containers for petroleum, chemical
and water transportation. Our products include carbon
Steel, stainless steel.
3. We provide a full range of oil tanks, including: gasoline
and diesel tanks, drinking water tanks and various
customized oil tank containers to meet your specific requirements.
4. We provide T75 and T50 gas tank containers.
parameter:
| Items | Parameter | ||
| product name | 20-foot container tank (hydrochloric acid) | ||
| Transport medium | hydrochloric acid | ||
| Production cycle | 30 | ||
| model | LSXC | ||
| Volume | 23m³ | ||
| Tank size (mm) | 5880*diameter 2320 | ||
| Warranty/Certificate | Have | ||
| Tank material | Cylinder body Q235B/5mm, head cylinder body Q235B/6mm | ||
| Beam material | Q235B/5mm | ||
| shape | Cylindrical | ||
| Curb weight (kg) | 4700 | ||
| Head thickness | 6mm | ||
| Tank thickness | 5mm | ||
| Wave breaker | Q235B/4.75mm | ||
| Wave breaker hoarding | Q235B/3.5mm | ||
| Top pick-up tray size | 900*900*250mm | ||
| tank mouth | 1 sulphuric acid special tank mouth | ||
| Manhole | 1 | ||
| Discharge valve | 1pc/DN80PP ball valve | ||
| Breathing valve | 1/PP ball valve | ||
| Wave breaker | 2 pieces | ||
| Ball valve | DN80PP ball valve | ||
| Lining thickness | 16mm | ||
| Lining material | PE | ||
| Export | DN80PP ball valve | ||
| colour | According to user requirements |
ISO container tank
1. Stainless steel tank container is suitable for edible oil, fruit juice, beverage, medicine, chemical
industry and other industries.
2. We manufacture tank containers for petroleum, chemical and water transportation. Our products
include carbon
Steel, stainless steel.
3. We provide a full range of oil tanks, including: gasoline and diesel tanks, drinking water tanks and
various customized oil tank containers to meet your specific requirements.
4. We provide T75 and T50 gas tank containers.
Customized low price factory direct sales 10FT/20FT/30FT/40FT acid tank container
ISO tank (tank container) is a kind of container installed in a fastening external frame. It is used to
transport liquid goods such as alcohol, oil, liquid food, chemicals and so on. It is mainly composed
of liquid tank and frame. The liquid tank is oval or nearly spherical, and double-layer structure can
be adopted. The frame is made of high strength steel, and the liquid tank is placed in the middle
of the frame.

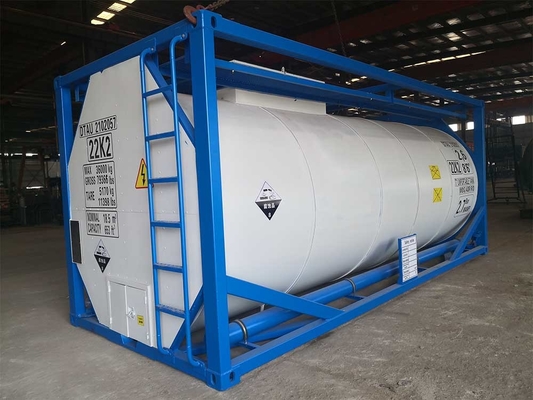

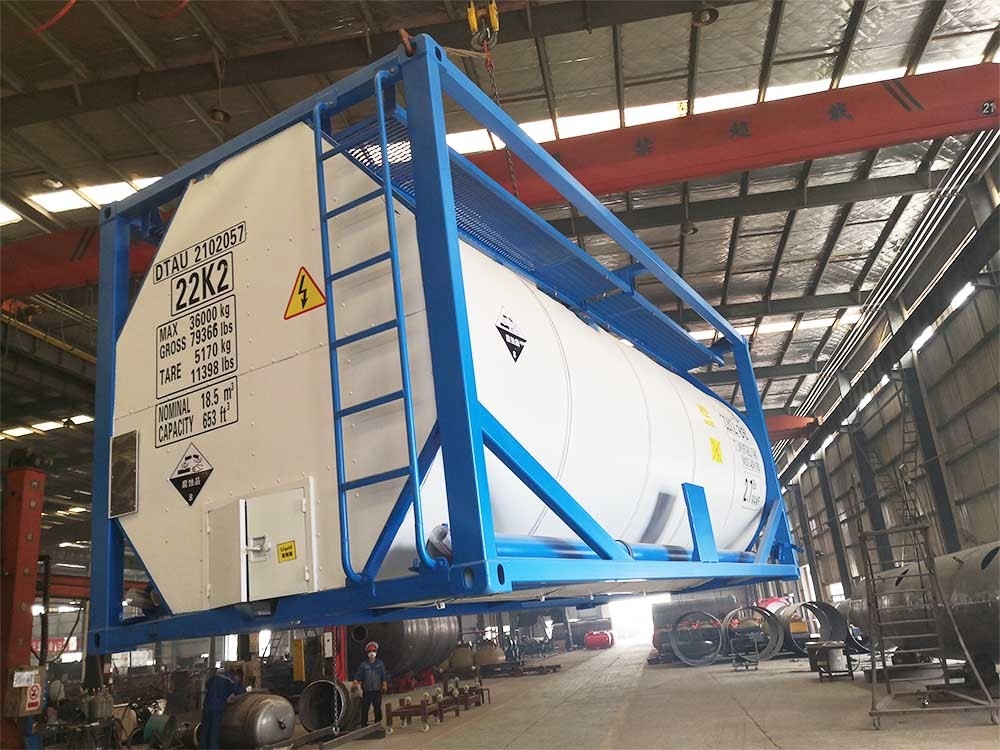

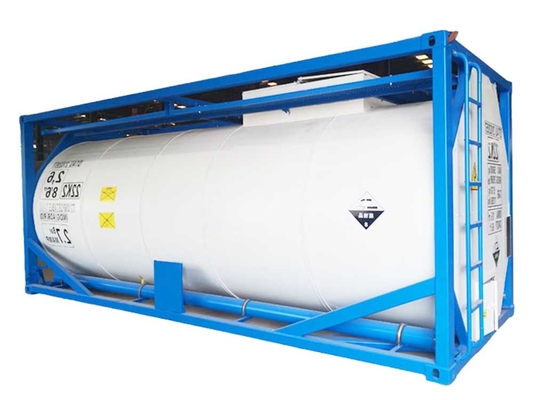

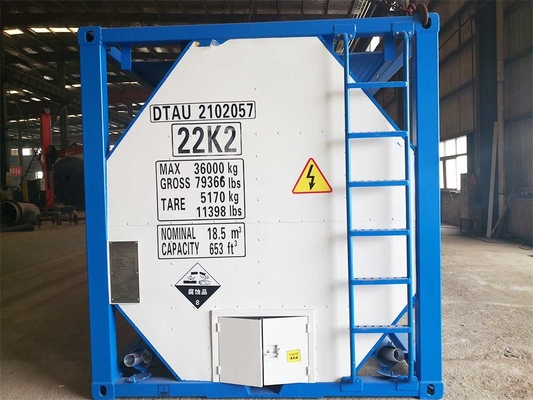

Product pictures:
Product details:
Certificate:
Factory Tour:
FAQ:
Q:What kind of Payment can you accept?
A:T / T and L/C is all right to us.
Q:Does your iso tank container meet with international requirement?
A:All of our tank container will be approval by BV or LR or CCS and meet with International Standard.
Q:How long will it takes to ship?
A:Around 15-25 working days.
Q: How about the Color , Specific configuration things?
A:It's up to you , most of them are optional and can be changed by your needs.
